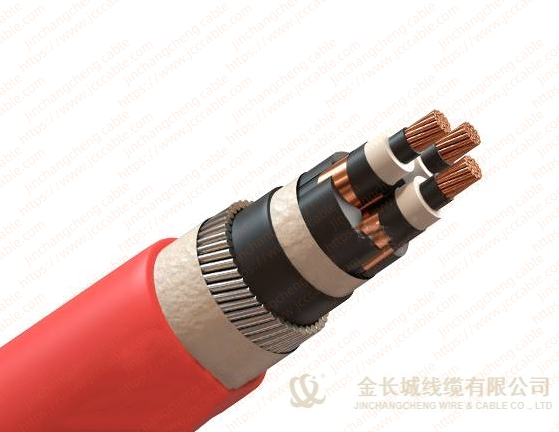

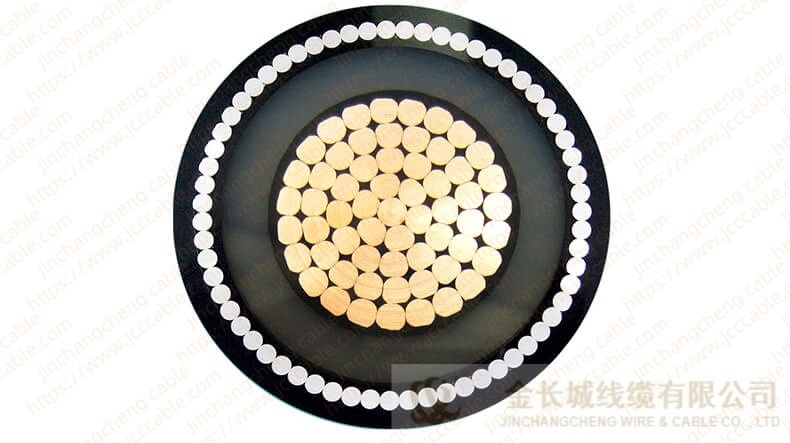

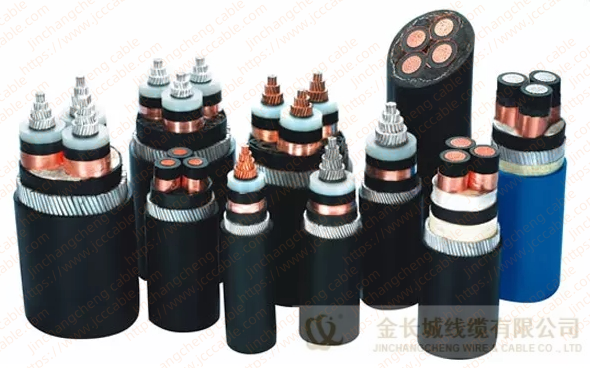

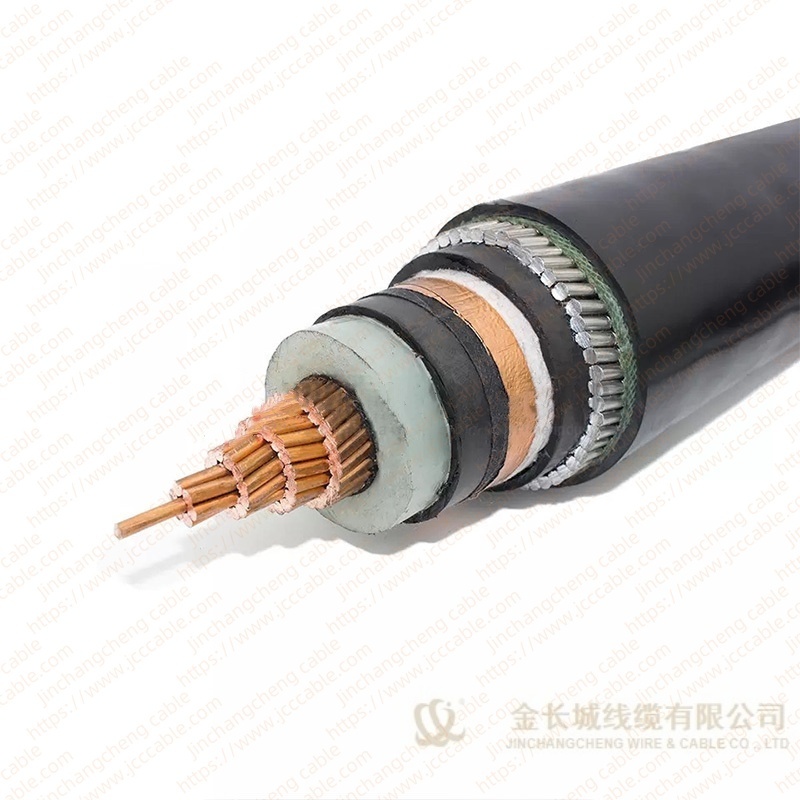

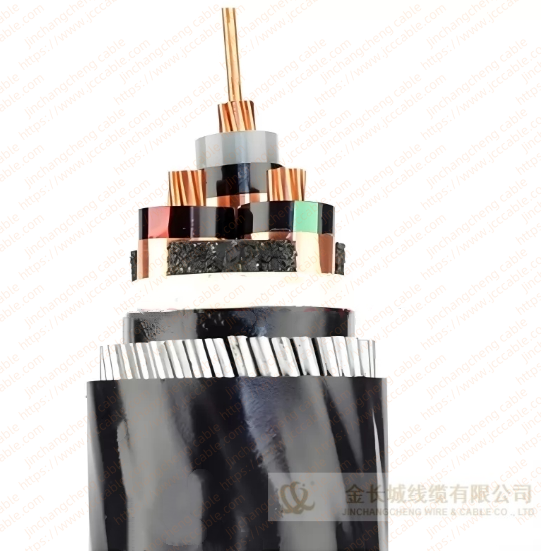

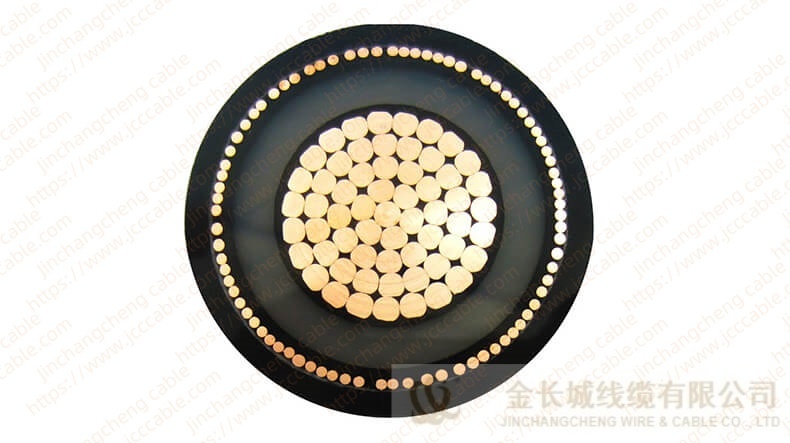

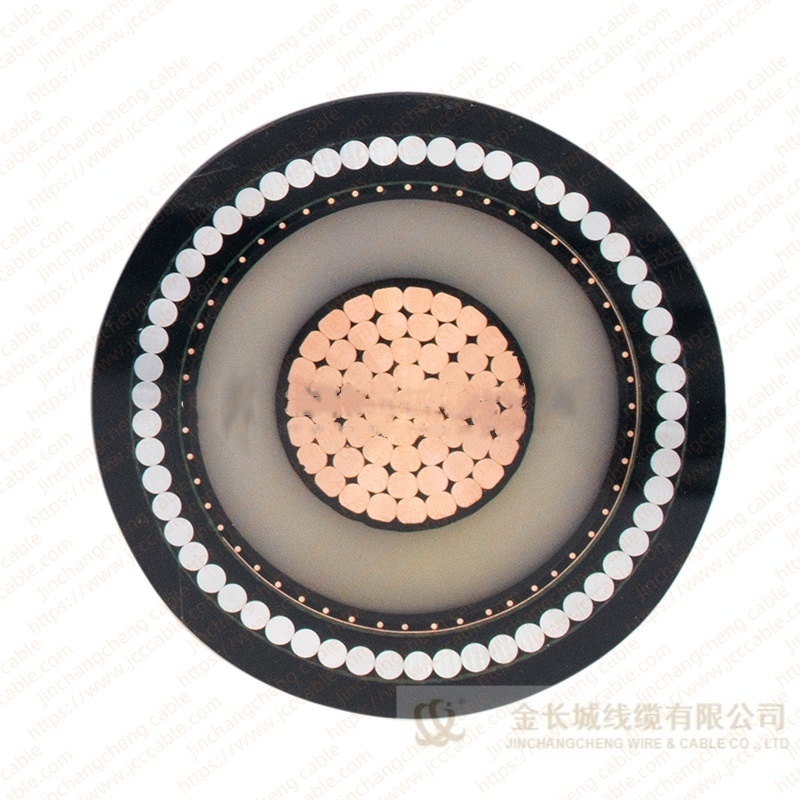

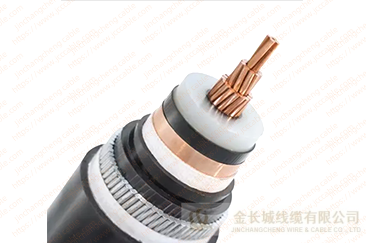

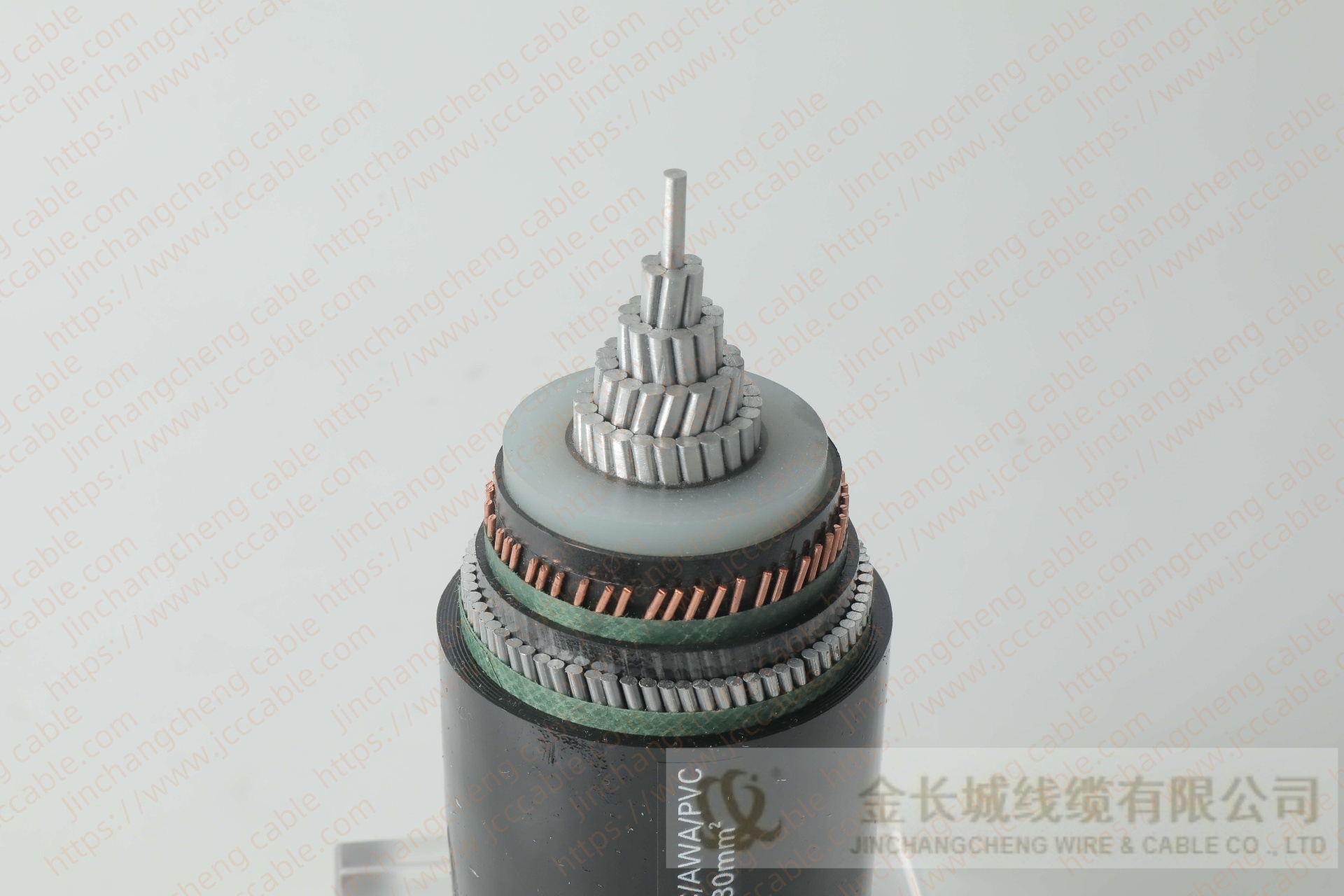

Wire armored Medium Voltage Power Cable

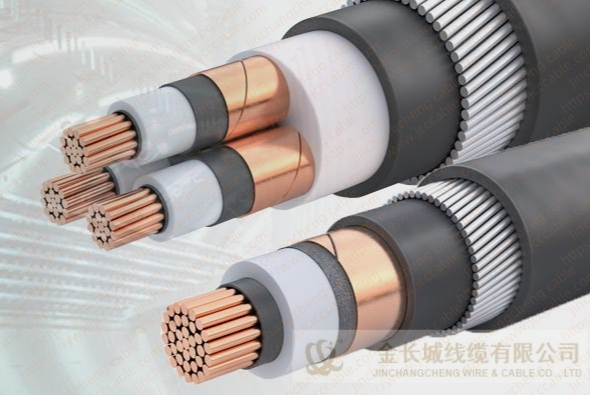

Medium voltage wire armored XLPE Insulation power cable is suitable for use in rated AC voltage 6~35kV system transmission and distribution Iines. Depending on different protective layer, it can be laid separately in air, cable tray, indoor wall bracket, cable box, direct burial underground , cable trenches, pipes and etc.

Key words:

Classification:

MV Electric Power Cable

Email：

goldgreatwall2025@gmail.com

WhatsApp：

0086 13653277222

Inquiry

Product Description

Application

Medium voltage XLPE insulation power cable is suitable for use in rated AC voltage 6~35kV transmission and distribution Iines.Depending on different protective layer ,it can be laid separately in air, cable tray, indoor wall bracket, cable box, direct burial underground , cable trenches, pipes and etc.

Standard

IEC60502-2; IEC60228; IEC60332-1/2/3; GB/T12706;

SPECIFICATIONS

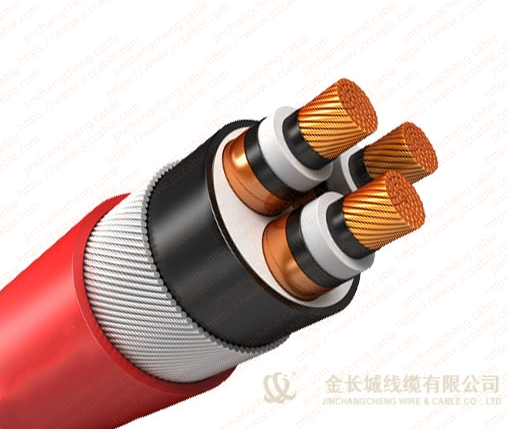

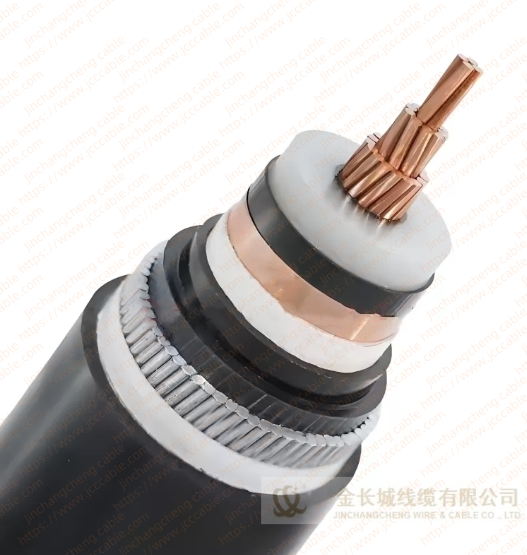

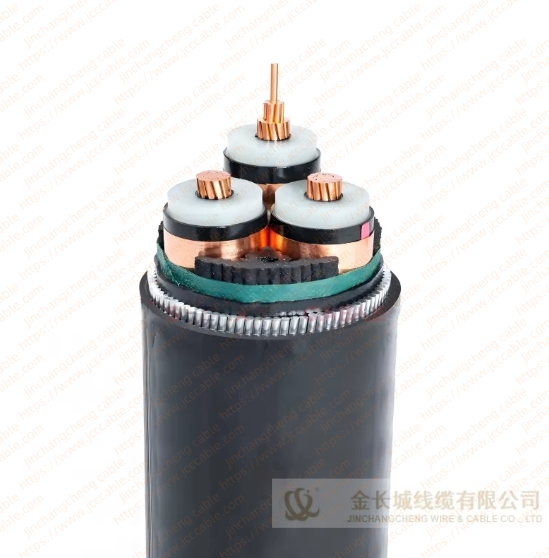

Core number : 1core , 3 core

Armour : Aluminium wire, Galvanized Steel Wire (SWA)

Max. Long-term operating temperature for cable conductor is 90℃

The ambient temperature for installation: ≥0℃

When cable in short-circuit, Max conductor temperature is 250℃ with duration no longer than 5 seconds

Property of flame retardant, fire resistance, water proof, low smoke halogen

Cable Model

Model	Name	Scope of application
YJV	Copper conductor XLPE insulated PVC sheathed power cable	Indoor tunnels and cable trenches and other places, can not withstand mechanical external forces, single-core cables are not allowed to be laid in the magnetic pipeline.
YJLV	Aluminum conductor XLPE insulated PVC sheathed power cable
YJY	Copper conductor XLPE insulated PE sheathed power cable
YJLY	Aluminum conductor XLPE insulated PE sheathed power cable
YJV22	Copper conductor XLPE insulated steel tape armored PVC sheathed power cable	Indoor, tunnel, cable trench or directly buried underground, can withstand certain mechanical external force, but can not withstand large tension.
YJLV22	Aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable
YJV23	Copper conductor XLPE insulated steel tape armored PE sheathed power cable
YJLV23	Aluminum conductor XLPE insulated steel tape armored PE outer sheath power cable
YJV32	Copper conductor XLPE insulated fine steel wire armored PVC sheathed power cable	Indoor, tunnel, cable trench or directly buried underground, able to withstand high-intensity mechanical external force and tension.

Production Scope

Model	Number of cores	Rated voltage kV
		3.6/6	6/6	8.7/10	12/20	18/20	21/35	26/35
		3.6/6	6/10	8.7/15	12/20	18/30	21/35	26/35
		Nominal section of conductor ㎜ 2
YJV \ YJLV \ YJY \ YJLY	1	25-800	25-800	25-800	35-800	50-630	50-630	50-630
YJV \ YJLV \ YJY \ YJLY	3	25-630	25-630	25-500	35-500	50-400	50-400	50-400
YJV22\YJLV22\YJY23\YJLY23	1	25-800	25-800	25-800	35-800	50-630	50-630	50-630
YJV22\YJLV22\YJY23\YJLY23	3	25-630	25-630	25-500	35-500	50-400	50-400	50-400
YJV32\YJLV32\YJY33\YJL\Y33	1	25-800	25-800	25-800	35-800	50-630	50-630	50-630
YJV32\YJLV32\YJY33\YJL\Y33	3	25-630	25-630	25-400	35-400	50-300	50-300	50-300
YJV32\YJLV32\YJV42\YJLV42	3	25-300	25-300	25-300	35-300	50-300	50-300	50-300

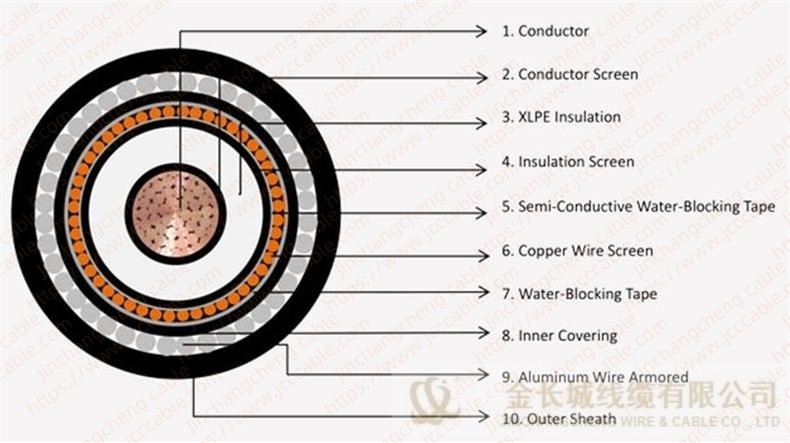

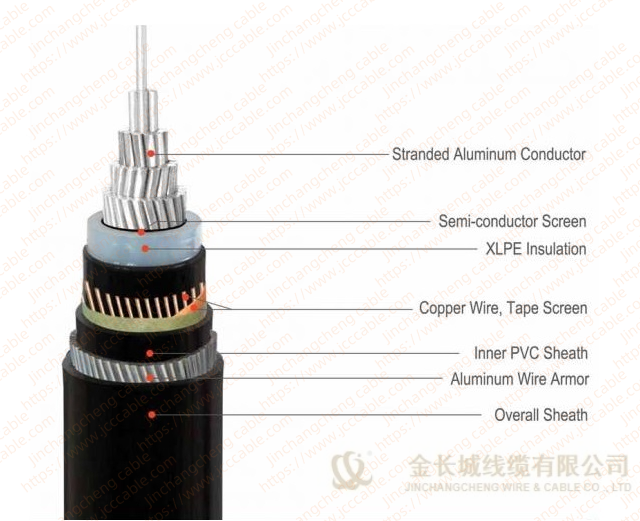

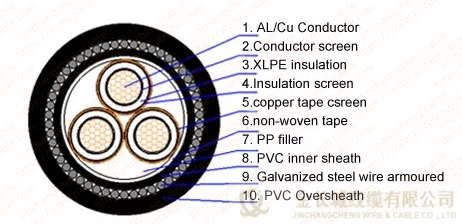

CONSTRUCTION

Rated voltage 3.6/6KV (7.2KV) Wire Armour Cable (AWA, SWA)

Nominal.Section	Conductor dia.	Nominal. Insinuation thickness	Cable Approx. Overall dia. mm		Cable Approx. Weight. Kg/Km				Max. D.C. resistance at 20℃ Ω/KM
mm2	mm	mm	Single core AWA	Three core SWA	Single core AWA		Three core SWA		CU	AL
mm2	mm	mm	Single core AWA	Three core SWA	CU	AL	CU	AL	CU	AL
25	6.00	2.5	23.90	41.53	856	701	3251	2781	0.727	1.2
35	7.00	2.5	24.90	45.01	983	768	4086	3436	0.524	0.868
50	8.30	2.5	26.20	48.13	1148	857	4710	3830	0.387	0.641
70	10.00	2.5	28.00	52.17	1409	987	5708	4435	0.268	0.443
95	11.60	2.5	29.71	56.03	1714	1130	6805	5043	0.193	0.320
120	13.00	2.5	31.21	59.38	2002	1264	7848	5619	0.153	0.253
150	14.60	2.5	33.78	63.20	2404	1497	8988	6250	0.124	0.206

Rated voltage 6/10KV (11KV) Wire Armour Cable (AWA, SWA)

Nominal.Section	Conductor dia.	Nominal. Insinuation thickness	Cable Approx. Overall dia. mm		Cable Approx. Weight. Kg/Km				Max. D.C. resistance at 20℃ Ω/KM
mm2	mm	mm	Single core AWA	Three core SWA	Single core AWA		Three core SWA		CU	AL
mm2	mm	mm	Single core AWA	Three core SWA	CU	AL	CU	AL	CU	AL
25	6.00	3.4	25.50	46.92	941	786	4075	3605	0.727	1.2
35	7.00	3.4	26.50	49.33	1071	856	4599	3949	0.524	0.868
50	8.30	3.4	27.89	52.44	1239	948	5243	4363	0.387	0.641
70	10.00	3.4	29.71	56.51	1506	1085	6230	4957	0.268	0.443
95	11.60	3.4	31.43	64.04	1817	1233	8452	6689	0.193	0.320
120	13.00	3.4	33.78	63.70	2192	1454	8418	6189	0.153	0.253
150	14.60	3.4	35.49	67.52	2523	1617	9585	6847	0.124	0.206

Rated voltage 8.7/15KV (17.5KV) Wire Armour Cable (AWA, SWA)

Nominal.Section	Conductor dia.	Nominal. Insinuation thickness	Cable Approx. Overall dia. mm		Cable Approx. Weight. Kg/Km				Max. D.C. resistance at 20℃ Ω/KM
mm2	mm	mm	Single core AWA	Three core SWA	Single core AWA		Three core SWA		CU	AL
mm2	mm	mm	Single core AWA	Three core SWA	CU	AL	CU	AL	CU	AL
25	6.00	4.5	27.79	52.65	1063	907	4731	4261	0.727	1.2
35	7.00	4.5	28.86	55.08	1200	985	5276	4626	0.524	0.868
50	8.30	4.5	30.25	58.19	1373	1082	5946	5066	0.387	0.641
70	10.00	4.5	32.07	62.24	1647	1226	7004	5731	0.268	0.443
95	11.60	4.5	34.64	66.08	2050	1466	8156	6394	0.193	0.320
120	13.00	4.5	36.13	69.43	2349	1611	9249	7019	0.153	0.253
150	14.60	4.5	37.85	74.64	2686	1780	11294	8556	0.124	0.206

Rated voltage 12/20KV (24KV) Wire Armour Cable (AWA, SWA)

Nominal.Section	Conductor dia.	Nominal. Insinuation thickness	Cable Approx. Overall dia. mm		Cable Approx. Weight. Kg/Km				Max. D.C. resistance at 20℃ Ω/KM
mm2	mm	mm	Single core AWA	Three core SWA	Single core AWA		Three core SWA		CU	AL
mm2	mm	mm	Single core AWA	Three core SWA	CU	AL	CU	AL	CU	AL
25	6.00	5.5	29.93	57.47	1180	1024	5324	4854	0.727	1.2
35	7.00	5.5	31.00	59.87	1321	1106	5884	5234	0.524	0.868
50	8.30	5.5	33.24	62.99	1584	1293	6615	5735	0.387	0.641
70	10.00	5.5	35.06	67.04	1874	1453	7662	6388	0.268	0.443
95	11.60	5.5	36.78	70.87	2197	1614	8841	7079	0.193	0.320
120	13.00	5.5	38.27	75.62	2501	1764	10830	8600	0.153	0.253
150	14.60	5.5	39.99	79.44	2844	1938	12085	9347	0.124	0.206

Rated voltage 18/30KV (36KV) Wire Armour Cable (AWA, SWA)

Nominal.Section	Conductor dia.	Nominal. Insinuation thickness	Cable Approx. Overall dia. mm		Cable Approx. Weight. Kg/Km				Max. D.C. resistance at 20℃ Ω/KM
mm2	mm	mm	Single core AWA	Three core SWA	Single core AWA		Three core SWA		CU	AL
mm2	mm	mm	Single core AWA	Three core SWA	CU	AL	CU	AL	CU	AL
25	6.00	8.0	37.20	71.3	1693	1538	7292	6822	0.727	1.2
35	7.00	8.0	38.27	75.1	1843	1628	8710	8060	0.524	0.868
50	8.30	8.0	39.66	78.2	2042	1751	9538	8658	0.387	0.641
70	10.00	8.0	41.54	82.3	2356	1934	10699	9426	0.268	0.443
95	11.60	8.0	44.39	86.1	2847	2264	12054	10291	0.193	0.320
120	13.00	8.0	45.95	89.4	3183	2445	13271	11041	0.153	0.253
150	14.60	8.0	47.73	93.3	3553	2647	14605	11867	0.124	0.206

Rated voltage 26/35KV (40.5KV) Wire Armour Cable (AWA, SWA)

Nominal.Section	Conductor dia.	Nominal. Insinuation thickness	Cable Approx. Overall dia. mm		Cable Approx. Weight. Kg/Km				Max. D.C. resistance at 20℃ Ω/KM
mm2	mm	mm	Single core AWA	Three core SWA	Single core AWA		Three core SWA		CU	AL
mm2	mm	mm	Single core AWA	Three core SWA	CU	AL	CU	AL	CU	AL
25	6.00	10.5	43.10	85.6	2143	1987	10281	9811	0.727	1.2
35	7.00	10.5	45.28	88.0	2456	2241	10944	10295	0.524	0.868
50	8.30	10.5	46.73	91.1	2684	2393	11832	10952	0.387	0.641
70	10.00	10.5	48.62	95.2	3020	2598	13134	11861	0.268	0.443
95	11.60	10.5	50.40	99.0	3395	2811	14498	12735	0.193	0.320
120	13.00	10.5	51.96	102.4	3732	2994	15779	13549	0.153	0.253
150	14.60	10.5	53.75	106.2	4121	3215	17185	14447	0.124	0.206
