10KV overhead insulated cable

Key words:

ACSR

Classification:

Overhead Insuiated Cable

Email：

jcccable@163.com

Inquiry
Related

Product Description

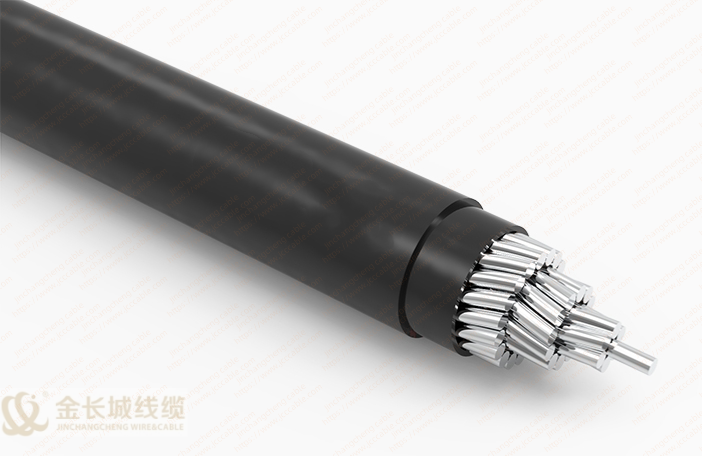

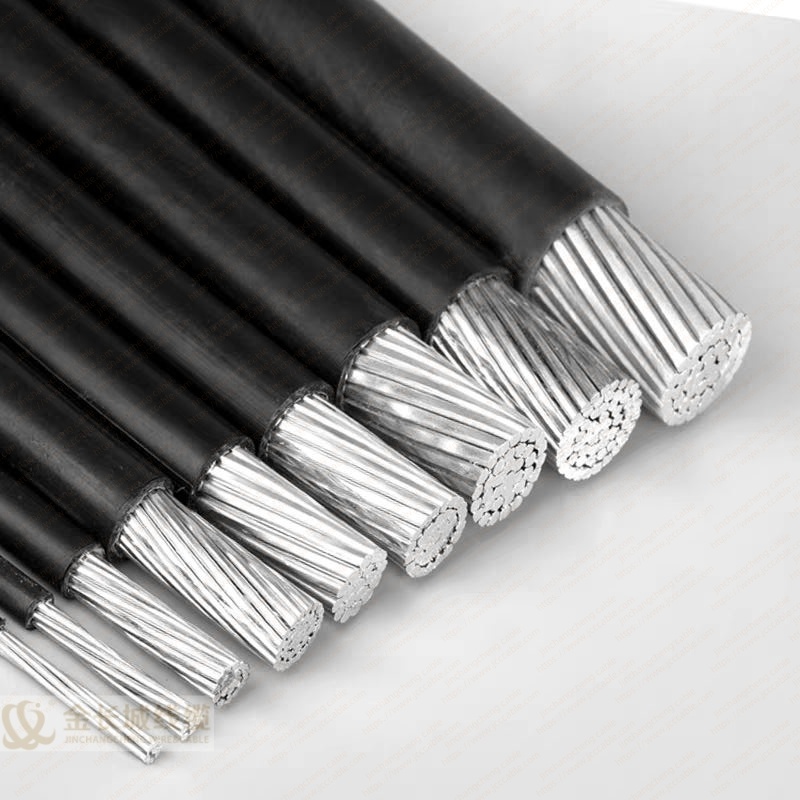

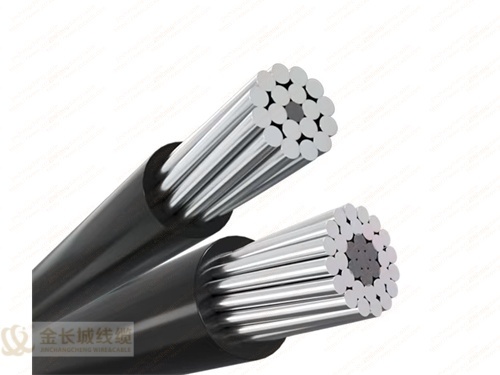

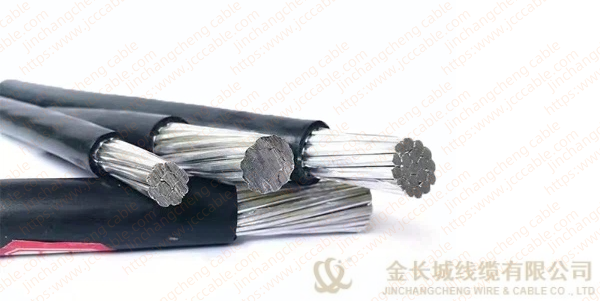

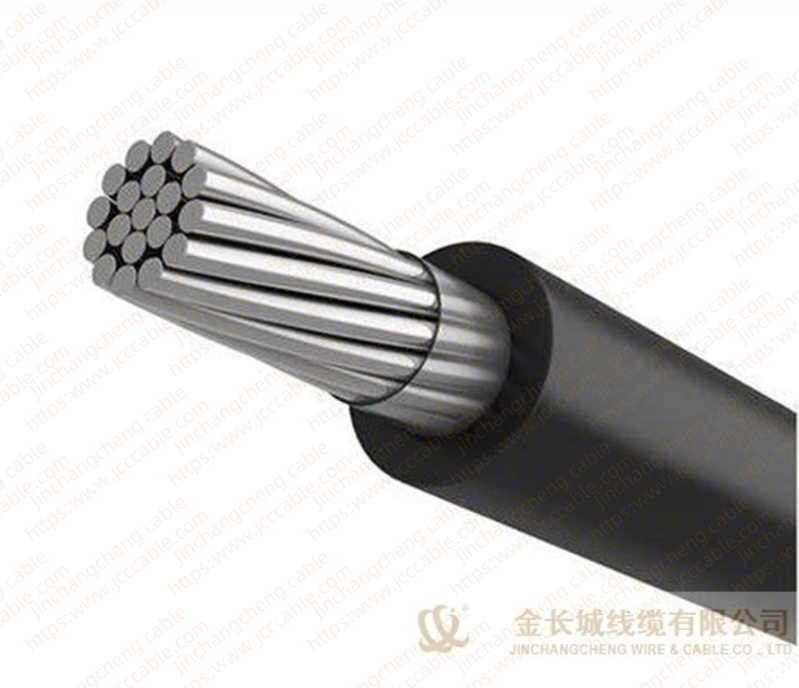

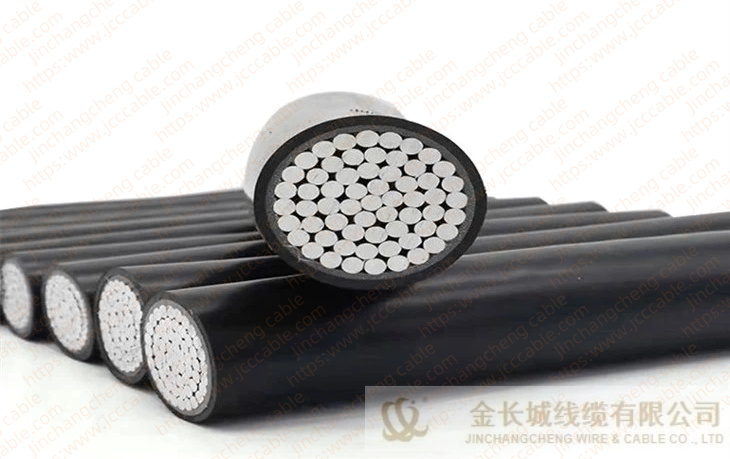

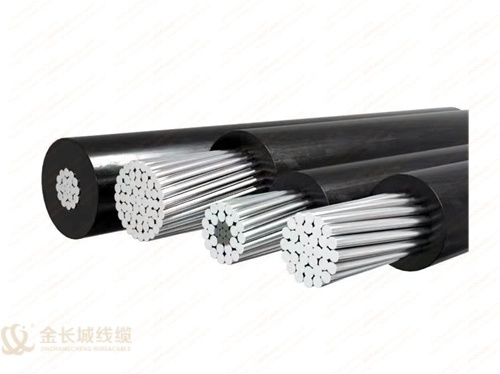

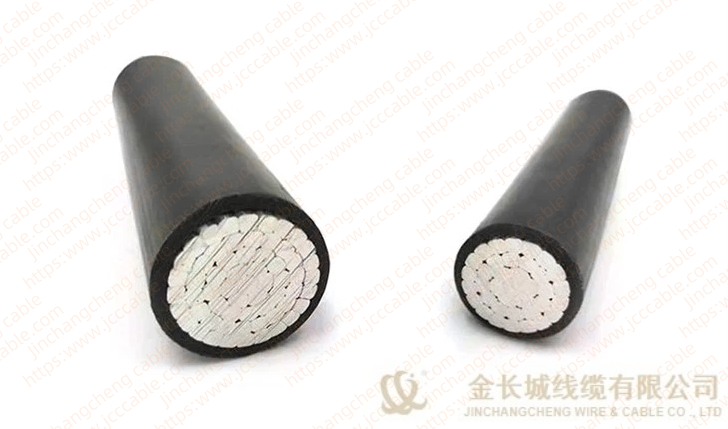

Aerial Insulated Cables with Rated Voltage 10 KV



10 KV Aerial Insulated Cables Standards Implemented

This product is produced according to the national standard GB/T14049-2008, applicable to the AC rated voltage U (Um) of 10 (12) KV for overhead power line steel core, aluminum core cross-linked polyethylene or high-density polyethylene insulated aerial cable.



SPECIFICATIONS

Rated Voltage:10KV

Maximal short-circuit temperature：+250 ℃

Minimum installation temperature： -20℃

Max. conductor temp.in service:XLPE-90 ℃ ,PVC-70 ℃

Min. bending radius during installation: 6(XD)

Outer sheath-- UV resistant



CONSTRUCTION

1. Conductor:Copper or Aluminum, Class 1: solid conductor, or Class 2: stranded conductor,ACSR

2. Conductor screen(optional): Semi-conducting compound

3. Insulation: XLPE or HDPE, UV resistant

4. Outer sheath(optional): HDPE, UV resistant


Type and Designation

Type


Product Designation


Main application

JKYJ

Cu core XLPE aerial insulated cable

Overhead fixed laying, soft copper core products for the transformer lead, cable erection, should be considered to maintain a certain distance with the trees, the cable is running, allowing the  cables contact with trees  frequently.

JKTRYJ

Soft Cu core XLPE aerial insulated cable

JKLYJ

Al core XLPE aerial insulated cable

JKY

Cu core PE aerial insulated cable

JKTRY

Soft Cu core PE aerial insulated cable

JKLY

Al core PE aerial insulated cable

JKLYJ/B

Al core with essential color XLPE aerial insulated cable

as above

JKLYJ/Q

Al core light XLPE aerial insulated cable

When the cable is erected, it should be considered to maintain a certain distance from the trees. When the cable runs, only short-term contact between the cable and the tree is allowed.

JKLY/Q

Al core light PE aerial thin insulated cable


The Specification of Aerial Insulated Cables with Rated Voltage 10 KV

Type

Number of core

Rated voltage
10(KV)

Nominal section (mm2)

JKYJ,JKTRYJ,JKLYJ

1

10-300

3

25-300

3+K(A)
OR3+K(B)

25-300

In which. K is 25-120

JKY,JKTRY,JKLY,
JKLYJ/Q,JKLY/Q

1

10-300

JKLYJ/B

3

25-300

3+K(A)
OR3+K(B)

25-300

In which. K is 25-120







10KV Aerial Insulated Cables （Aluminum)       IEC 60502-2   /   GB/T14049

Nominal Size

Min. No.
of Wires

 Diameter of Conductor

Thickness of Conductor screen

Nominal Thickness of Insulation

Nominal Thickness of Insulation Screen

Max. DC Resistance at   20 ℃

Min. Breaking Load

Reduced

Nominal

AAC

AAAC

AAC

AAAC

mm²

No.

mm

mm

mm

mm

mm

Ω/km

Ω/km

N



10

6

3.8

0.5

-

3.4

-

3.080

3.574

-

-

16

6

4.8

0.5

-

3.4

-

1.910

2.217

-

-

25

6

6.0

0.5

2.5

3.4

1.0

1.200

1.393

3762

6284

35

6

7.0

0.5

2.5

3.4

1.0

0.868

1.007

5177

8800

50

6

8.3

0.5

2.5

3.4

1.0

0.641

0.744

7011

12569

70

12

10.0

0.5

2.5

3.4

1.0

0.443

0.514

10354

17596

95

15

11.6

0.6

2.5

3.4

1.0

0.320

0.371

13727

23880

120

18

13.0

0.6

2.5

3.4

1.0

0.253

0.294

17339

30164

150

18

14.6

0.6

2.5

3.4

1.0

0.206

0.239

21033

37706

185

30

16.2

0.6

2.5

3.4

1.0

0.164

0.190

26732

46503

240

34

18.4

0.6

2.5

3.4

1.0

0.125

0.145

34679

60329

300

34

20.6

0.6

2.5

3.4

1.0

0.100

0.116

43349

75411

400

53

23.8

0.6

2.5

3.4

1.0

0.0778

0.0904

55707

100548





Nominal Size

Min. No.
of Wires

 Diameter of Conductor

Thickness of Conductor screen

Nominal Thickness of Insulation

Nominal Thickness of Insulation Screen

Max. DC Resistance at   20 ℃

Min. Breaking Load

Reduced

Nominal

Hard Copper

Soft Copper

Hard Copper

mm²

No.

mm

mm

mm

mm

mm

Ω/km

Ω/km

N

10

6

3.8

0.5

-

3.4

-

-

1.830

-

16

6

4.8

0.5

-

3.4

-

-

1.150

-

25

6

6.0

0.5

2.5

3.4

1.0

0.7490

0.727

8465

35

6

7.0

0.5

2.5

3.4

1.0

0.5400

0.524

11731

50

6

8.3

0.5

2.5

3.4

1.0

0.3990

0.387

16052

70

12

10.0

0.5

2.5

3.4

1.0

0.2760

0.268

23461

95

15

11.6

0.6

2.5

3.4

1.0

0.1990

0.193

31759

120

18

13.0

0.6

2.5

3.4

1.0

0.1580

0.153

39911

150

18

14.6

0.6

2.5

3.4

1.0

0.1280

-

49505

185

30

16.2

0.6

2.5

3.4

1.0

0.1021

-

61846

240

34

18.4

0.6

2.5

3.4

1.0

0.0777

-

79823

300

34

20.6

0.6

2.5

3.4

1.0

0.0619

-

99788

400

53

23.8

0.6

2.5

3.4

1.0

0.0484

-

133040



10 KV Aerial Insulated Cables Using Feature

Maximum long-term allowable operating temperature of the cable conductor (with load bearing structure cable)

1. Cross-linked polyethylene insulation 90℃;

2. High-density polyethylene insulation 75℃. In case of a short circuit (maximum duration not exceeding 5 seconds) the maximum temperature of the cable should not exceed:

(1). Cross-linked polyethylene insulation 250℃;

(2). High-density polyethylene insulation 150℃. The laying temperature of the cable shall not be lower than -20℃; the allowable bending radius of the cable shall not be less than the diameter of the cylinder used in the cable bending test.
