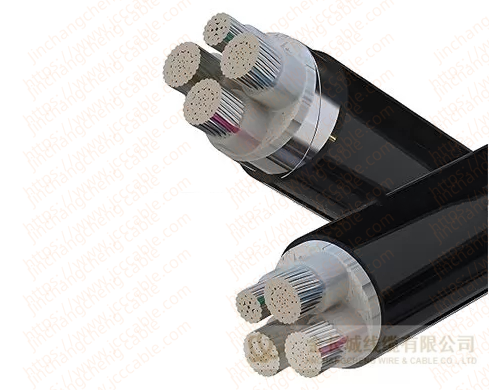

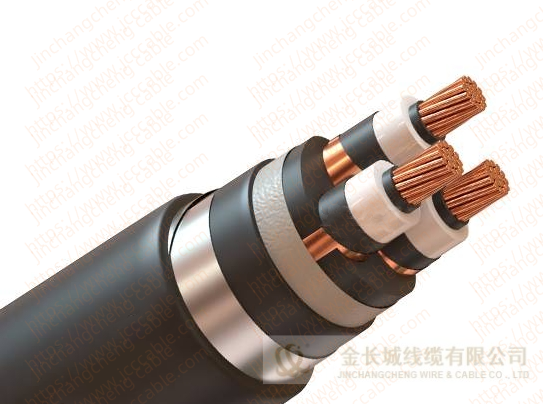

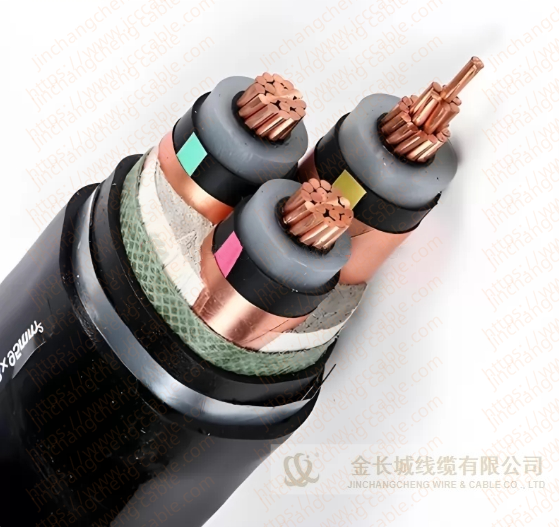

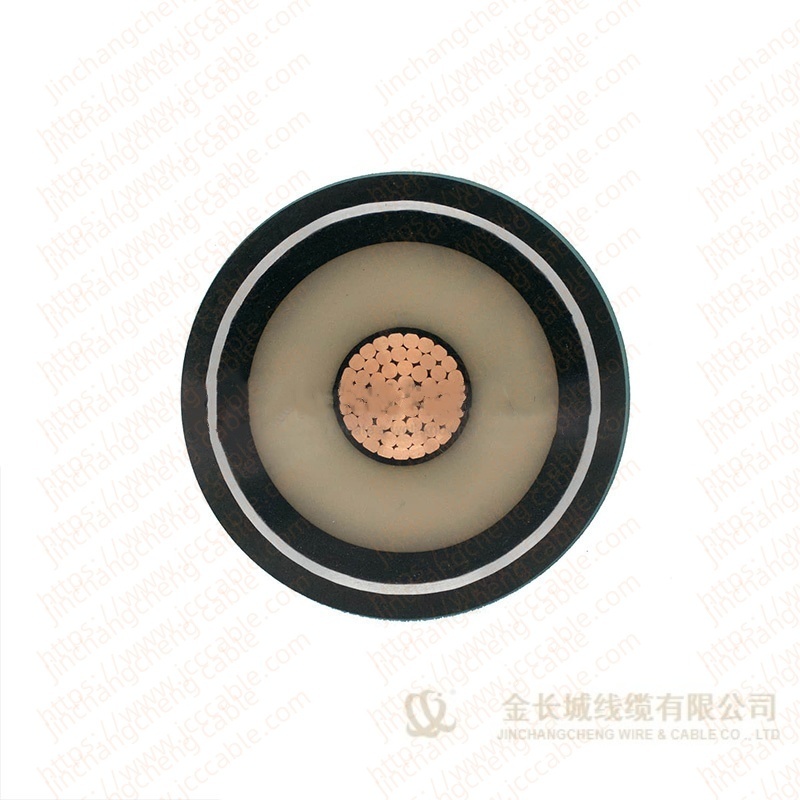

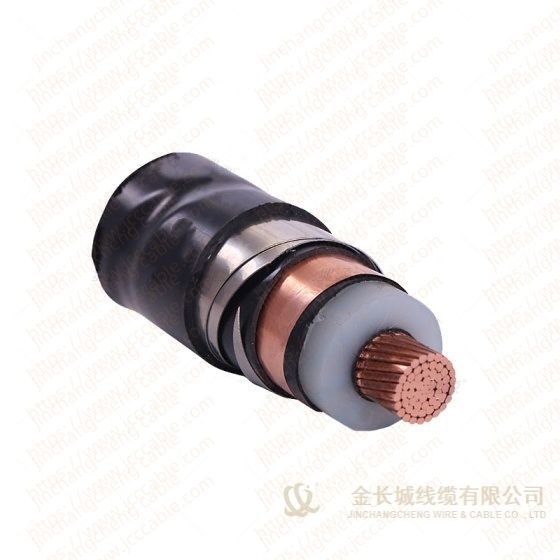

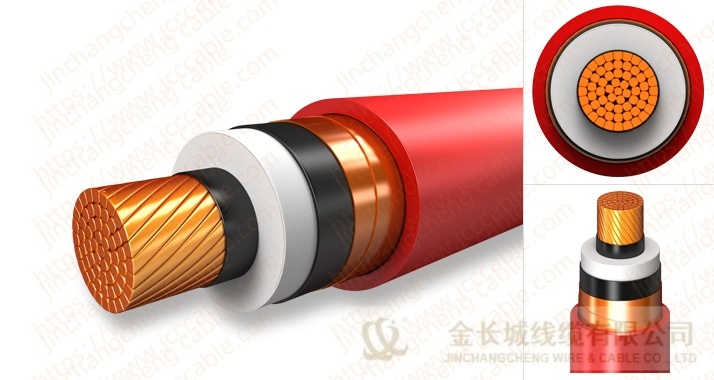

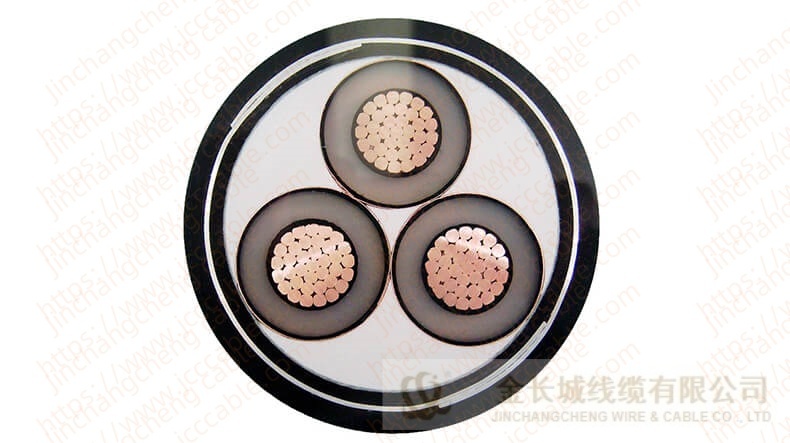

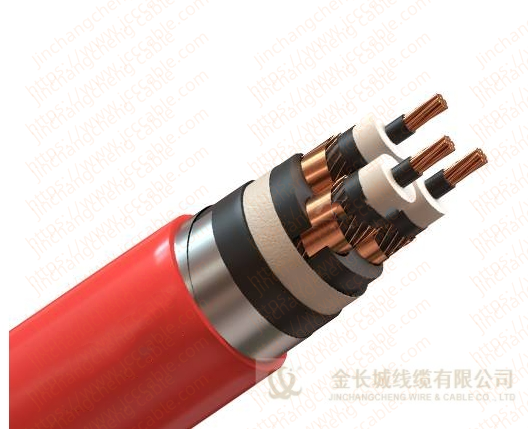

Tape armored Medium Voltage Power Cable

Medium voltage tape armored XLPE Insulation power cable is suitable for use in rated AC voltage 6~35kV system transmission and distribution Iines. Depending on different protective layer, it can be laid separately in air, cable tray, indoor wall bracket, cable box, direct burial underground , cable trenches, pipes and etc.

Key words:

Classification:

MV Electric Power Cable

Email：

goldgreatwall2025@gmail.com

WhatsApp：

0086 13653277222

Inquiry

Product Description

Application

Medium voltage XLPE Insulation power cable is suitable for use in rated AC voltage 6~35kV system transmission and distribution Iines.Depending on different protective layer, it can be laid separately in air, cable tray, indoor wall bracket, cable box, direct burial underground , cable trenches, pipes and etc.

Standard

IEC60502-2; IEC60228; IEC60332-1/2/3; GB/T12706;

SPECIFICATIONS

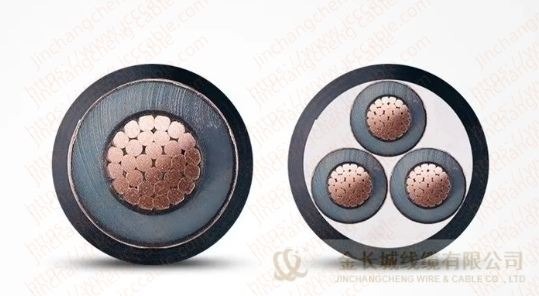

Core number: 1core, 3 core

Armour: Aluminium tape (ATA), Galvanized Steel tape (STA)

Max. Long-term operating temperature for cable conductor is 90℃

The ambient temperature for installation: ≥0℃

When cable in short-circuit, max. conductor temperature is 250℃ with duration no longer than 5 seconds

Property of flame retardant, fire resistance, water proof , Low smoke halogen free can be chosen.

Cable Model

Model	Name	Scope of application
YJV	Copper conductor XLPE insulated PVC sheathed power cable	Indoor tunnels and cable trenches and other places, can not withstand mechanical external forces, single-core cables are not allowed to be laid in the magnetic pipeline.
YJLV	Aluminum conductor XLPE insulated PVC sheathed power cable
YJY	Copper conductor XLPE insulated PE sheathed power cable
YJLY	Aluminum conductor XLPE insulated PE sheathed power cable
YJV22	Copper conductor XLPE insulated steel tape armored PVC sheathed power cable	Indoor, tunnel, cable trench or directly buried underground, can withstand certain mechanical external force, but can not withstand large tension.
YJLV22	Aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable
YJV23	Copper conductor XLPE insulated steel tape armored PE sheathed power cable
YJLV23	Aluminum conductor XLPE insulated steel tape armored PE outer sheath power cable
YJV32	Copper conductor XLPE insulated fine steel wire armored PVC sheathed power cable	Indoor, tunnel, cable trench or directly buried underground, able to withstand high-intensity mechanical external force and tension.

Production Scope

Model	Number of cores	Rated voltage kV
		3.6/6	6/6	8.7/10	12/20	18/20	21/35	26/35
		3.6/6	6/10	8.7/15	12/20	18/30	21/35	26/35
		Nominal section of conductor ㎜ 2
YJV \ YJLV \ YJY \ YJLY	1	25-800	25-800	25-800	35-800	50-630	50-630	50-630
YJV \ YJLV \ YJY \ YJLY	3	25-630	25-630	25-500	35-500	50-400	50-400	50-400
YJV22\YJLV22\YJY23\YJLY23	1	25-800	25-800	25-800	35-800	50-630	50-630	50-630
YJV22\YJLV22\YJY23\YJLY23	3	25-630	25-630	25-500	35-500	50-400	50-400	50-400
YJV32\YJLV32\YJY33\YJL\Y33	1	25-800	25-800	25-800	35-800	50-630	50-630	50-630
YJV32\YJLV32\YJY33\YJL\Y33	3	25-630	25-630	25-400	35-400	50-300	50-300	50-300
YJV32\YJLV32\YJV42\YJLV42	3	25-300	25-300	25-300	35-300	50-300	50-300	50-300

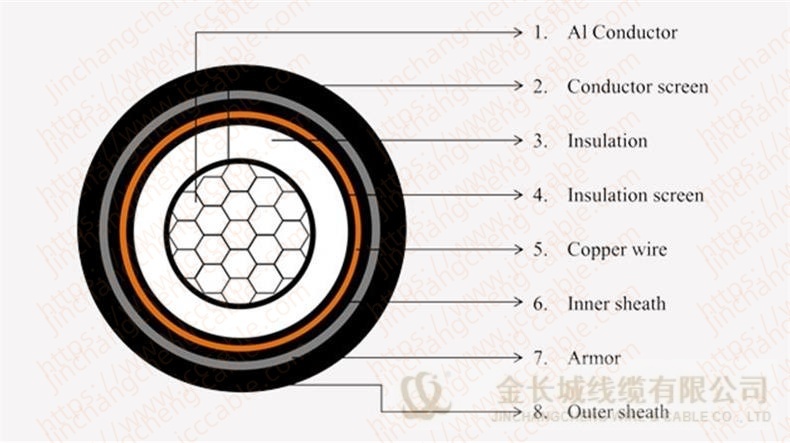

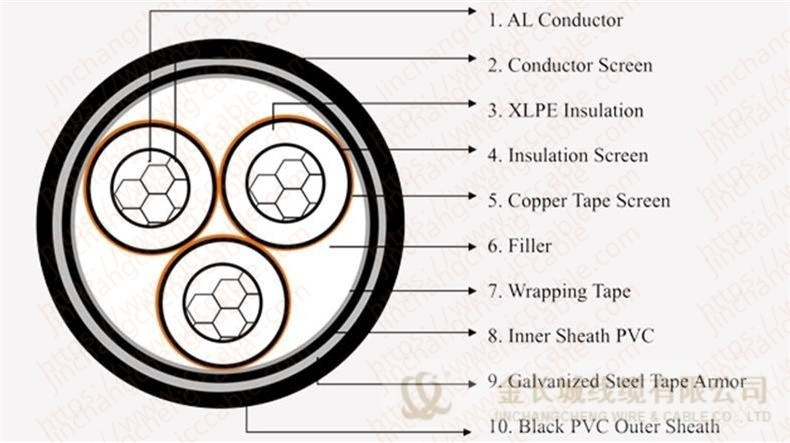

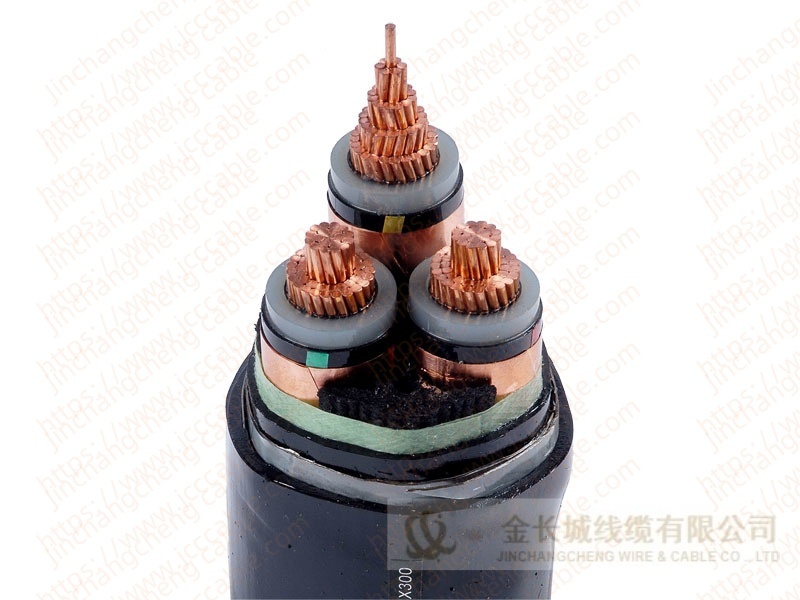

CONSTRUCTION

Rated voltage 3.6/6KV (7.2KV) Steel Tape Armour Cable (STA)

Nominal. Section	Conductor dia.	Nominal. Insinuation thickness	Cable Approx. Overall dia. mm	Cable Approx. Weight. Kg/Km		Max. D.C. resistance at 20℃ Ω/KM
mm2	mm	mm	Three core	Three core		CU	AL
mm2	mm	mm	Three core	CU	AL	CU	AL
10	3.69	2.5	30.20	1783	1599	1.83	3.08
16	4.74	2.5	32.40	2085	1790	1.15	1.91
25	6.00	2.5	35.40	2532	2062	0.727	1.2
35	7.00	2.5	37.70	2976	2326	0.524	0.868
50	8.30	2.5	40.70	3519	2639	0.387	0.641
70	10.00	2.5	44.60	4381	3108	0.268	0.443
95	11.60	2.5	48.20	5361	3598	0.193	0.320
120	13.00	2.5	51.70	6333	4104	0.153	0.253
150	14.60	2.5	55.30	7376	4638	0.124	0.206

Rated voltage 6/10KV (11KV) Steel Tape Armour Cable （STA）

Nominal. Section	Conductor dia.	Nominal. Insinuation thickness	Cable Approx. Overall dia. mm	Cable Approx. Weight. Kg/Km		Max. D.C. resistance at 20℃ Ω/KM
mm2	mm	mm	Three core	Three core		CU	AL
mm2	mm	mm	Three core	CU	AL	CU	AL
16	4.74	3.4	40.69	2388	2093	1.15	1.91
25	6.00	3.4	43.46	2871	2401	0.727	1.2
35	7.00	3.4	49.04	3620	2971	0.524	0.868
50	8.30	3.4	52.05	4202	3322	0.387	0.641
70	10.00	3.4	53.07	4780	3507	0.268	0.443
95	11.60	3.4	56.73	5775	4013	0.193	0.320
120	13.00	3.4	60.15	6741	4511	0.153	0.253
150	14.60	3.4	63.38	7775	5037	0.124	0.206

Rated voltage 8.7/15KV (17.5KV) Steel Tape Armour Cable （STA）

Nominal. Section	Conductor dia.	Nominal. Insinuation thickness	Cable Approx. Overall dia. mm	Cable Approx. Weight. Kg/Km		Max. D.C. resistance at 20℃ Ω/KM
mm2	mm	mm	Three core	Three core		CU	AL
mm2	mm	mm	Three core	CU	AL	CU	AL
25	6.00	4.5	48.62	3339	2869	0.727	1.2
35	7.00	4.5	51.59	3797	3147	0.524	0.868
50	8.30	4.5	54.80	4406	3526	0.387	0.641
70	10.00	4.5	58.02	5294	4021	0.268	0.443
95	11.60	4.5	62.08	6376	4613	0.193	0.320
120	13.00	4.5	65.50	7370	5141	0.153	0.253
150	14.60	4.5	68.73	8431	5693	0.124	0.206

Rated voltage 12/20KV (24KV) Steel Tape Armour Cable （STA）

Nominal. Section	Conductor dia.	Nominal. Insinuation thickness	Cable Approx. Overall dia. mm	Cable Approx. Weight. Kg/Km		Max. D.C. resistance at 20℃ Ω/KM
mm2	mm	mm	Three core	Three core		CU	AL
mm2	mm	mm	Three core	CU	AL	CU	AL
25	6.00	5.5	53.94	3984	3514	0.727	1.2
35	7.00	5.5	56.51	4463	3813	0.524	0.868
50	8.30	5.5	59.72	5104	4224	0.387	0.641
70	10.00	5.5	62.94	6026	4753	0.268	0.443
95	11.60	5.5	66.80	7118	5356	0.193	0.320
120	13.00	5.5	70.22	8145	5916	0.153	0.253
150	14.60	5.5	73.45	9239	6501	0.124	0.206

Rated voltage 18/30KV (36KV) Steel Tape Armour Cable （STA）

Nominal. Section	Conductor dia.	Nominal. Insinuation thickness	Cable Approx. Overall dia. mm	Cable Approx. Weight. Kg/Km		Max. D.C. resistance at 20℃ Ω/KM
mm2	mm	mm	Three core	Three core		CU	AL
mm2	mm	mm	Three core	CU	AL	CU	AL
25	6.00	8.0	65.94	5323	4853	0.727	1.2
35	7.00	8.0	68.51	5841	5191	0.524	0.868
50	8.30	8.0	71.72	6539	5659	0.387	0.641
70	10.00	8.0	75.14	7565	6292	0.268	0.443
95	11.60	8.0	78.80	8689	6926	0.193	0.320
120	13.00	8.0	83.62	10653	8424	0.153	0.253
150	14.60	8.0	86.85	11847	9109	0.124	0.206

Rated voltage 26/35KV (40.5KV) Steel Tape Armour Cable (STA)

Nominal. Section	Conductor dia.	Nominal. Insinuation thickness	Cable Approx. Overall dia. mm	Cable Approx. Weight. Kg/Km		Max. D.C. resistance at 20℃ Ω/KM
mm2	mm	mm	Three core	Three core		CU	AL
mm2	mm	mm	Three core	CU	AL	CU	AL
25	6.00	10.5	77.94	6976	6506	0.727	1.2
35	7.00	10.5	81.91	8406	7757	0.524	0.868
50	8.30	10.5	84.92	9156	8276	0.387	0.641
70	10.00	10.5	88.34	10296	9023	0.268	0.443
95	11.60	10.5	92.00	11524	9761	0.193	0.320
120	13.00	10.5	95.62	12753	10523	0.153	0.253
150	14.60	10.5	99.05	14062	11324	0.124	0.206
