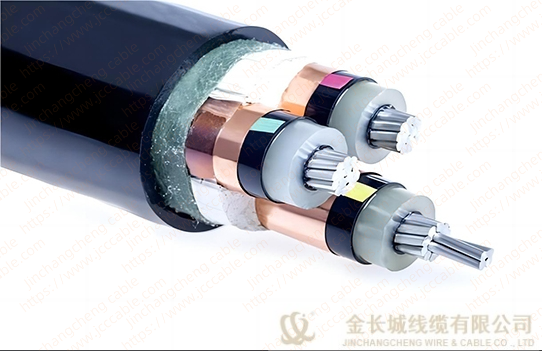

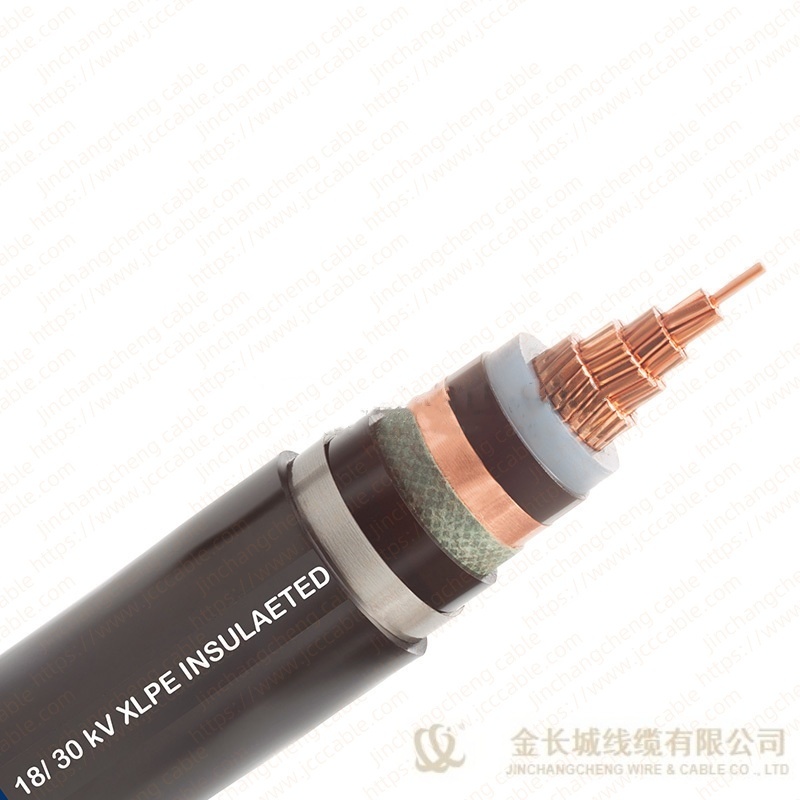

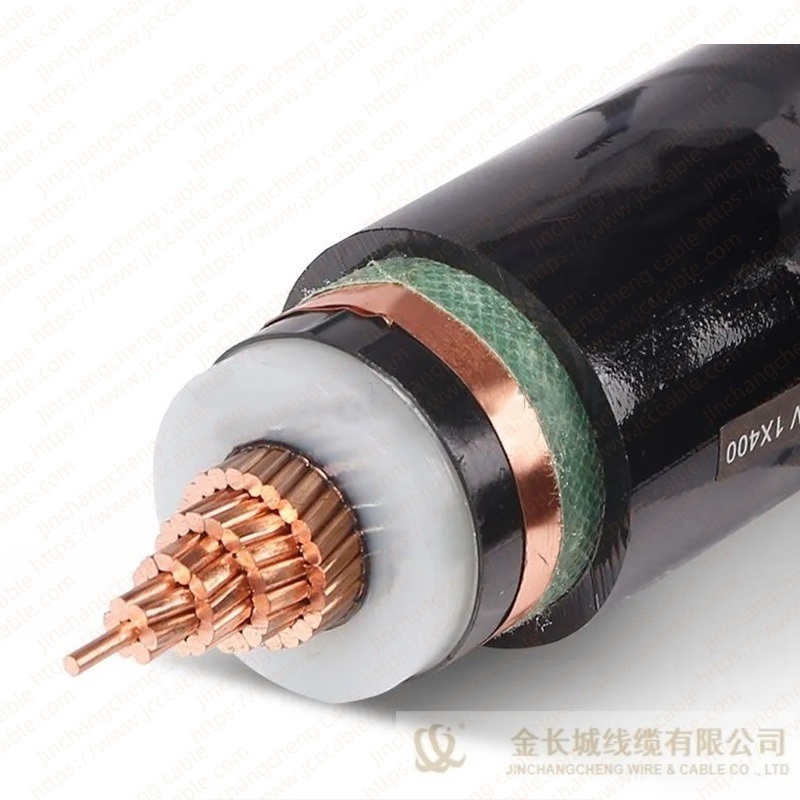

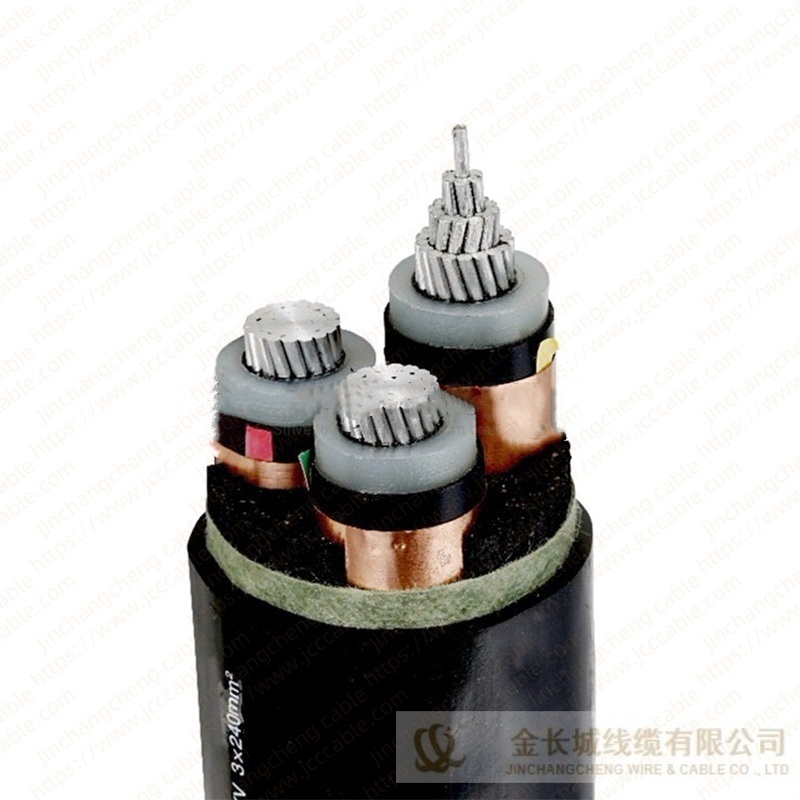

Non armored Medium Voltage Power Cable

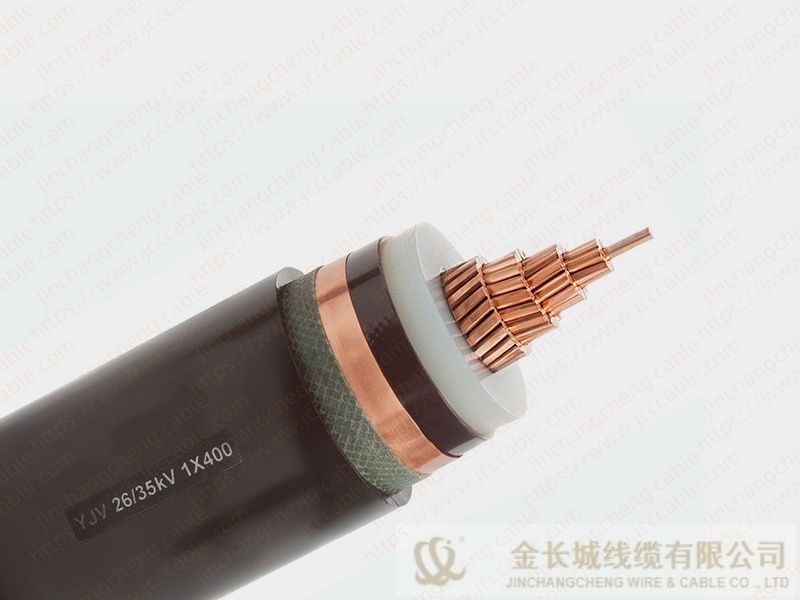

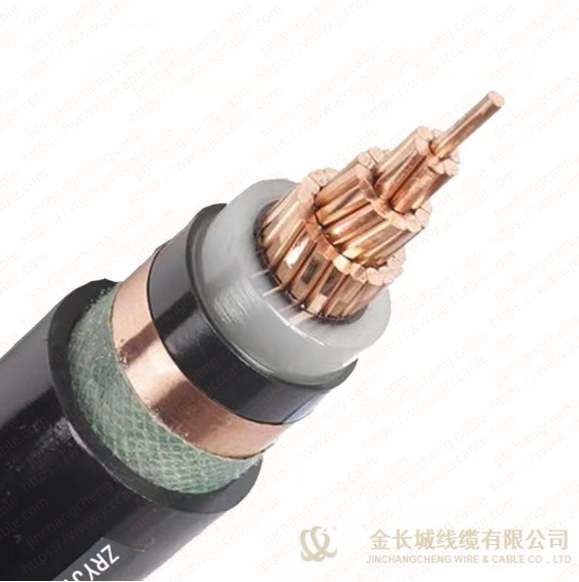

Medium voltage non armoured XLPE Insulation power cable is suitable for use in rated AC voltage 6~35kV system transmitting and distributing Iines, it can be laid separately in air, cable tray, indoor wall bracket, cable box, direct burial underground , cable trenches, pipes and etc.

Key words:

power cable

insulated cable

MV cable

Classification:

MV Electric Power Cable

Email：

goldgreatwall2025@gmail.com

WhatsApp：

0086 13653277222

Inquiry

Product Description

Standard：

IEC60502-2; IEC60228; IEC60332-1/2/3; ;GB/T12706;

SPECIFICATIONS

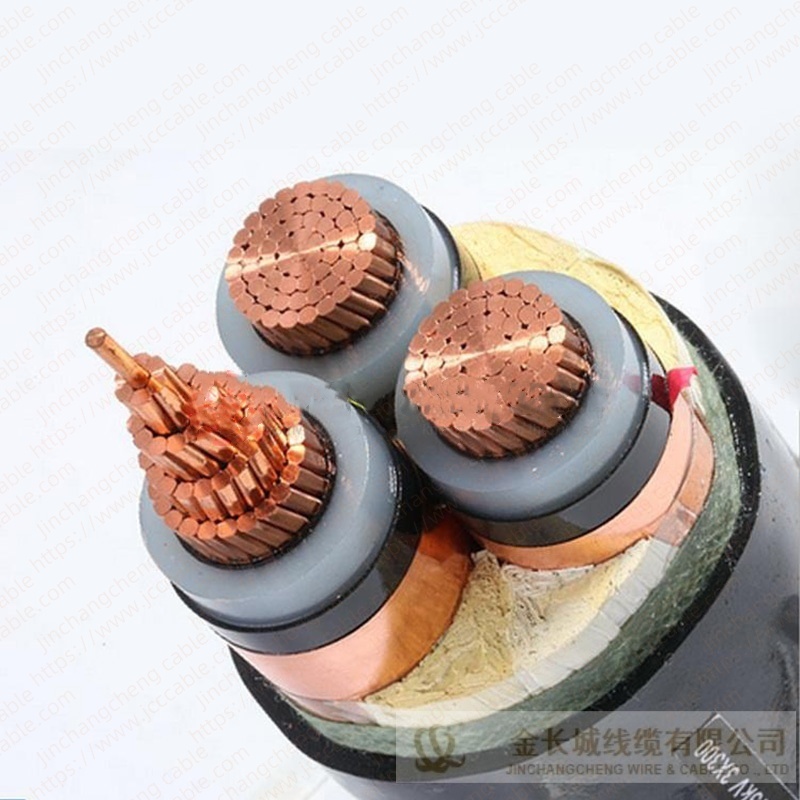

Core number : 1 core and 3 core

Long term operating temperature for cable conductor is 90℃

The ambient temperature for installation: ≥0℃

When cable in short-circuit ,Max conductor temperature is 250℃ with duration no longer than 5 seconds

Property of flame retardant, fire resistance, water proof , Low smoke halogen free can be chose.

Cable Model

Model	Name	Scope of application
YJV	Copper conductor XLPE insulated PVC sheathed power cable	Indoor tunnels and cable trenches and other places, can not withstand mechanical external forces, single-core cables are not allowed to be laid in the magnetic pipeline.
YJLV	Aluminum conductor XLPE insulated PVC sheathed power cable
YJY	Copper conductor XLPE insulated PE sheathed power cable
YJLY	Aluminum conductor XLPE insulated PE sheathed power cable
YJV22	Copper conductor XLPE insulated steel tape armored PVC sheathed power cable	Indoor, tunnel, cable trench or directly buried underground, can withstand certain mechanical external force, but can not withstand large tension.
YJLV22	Aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable
YJV23	Copper conductor XLPE insulated steel tape armored PE sheathed power cable
YJLV23	Aluminum conductor XLPE insulated steel tape armored PE outer sheath power cable
YJV32	Copper conductor XLPE insulated fine steel wire armored PVC sheathed power cable	Indoor, tunnel, cable trench or directly buried underground, able to withstand high-intensity mechanical external force and tension.

Production Scope

Model	Number of cores	Rated voltage kV
		3.6/6	6/6	8.7/10	12/20	18/20	21/35	26/35
		3.6/6	6/10	8.7/15	12/20	18/30	21/35	26/35
		Nominal section of conductor ㎜ 2
YJV \ YJLV \ YJY \ YJLY	1	25-800	25-800	25-800	35-800	50-630	50-630	50-630
YJV \ YJLV \ YJY \ YJLY	3	25-630	25-630	25-500	35-500	50-400	50-400	50-400
YJV22\YJLV22\YJY23\YJLY23	1	25-800	25-800	25-800	35-800	50-630	50-630	50-630
YJV22\YJLV22\YJY23\YJLY23	3	25-630	25-630	25-500	35-500	50-400	50-400	50-400
YJV32\YJLV32\YJY33\YJL\Y33	1	25-800	25-800	25-800	35-800	50-630	50-630	50-630
YJV32\YJLV32\YJY33\YJL\Y33	3	25-630	25-630	25-400	35-400	50-300	50-300	50-300
YJV32\YJLV32\YJV42\YJLV42	3	25-300	25-300	25-300	35-300	50-300	50-300	50-300

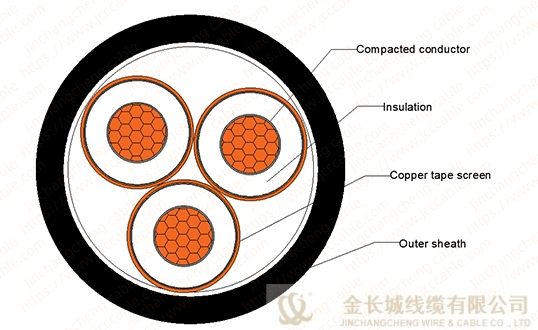

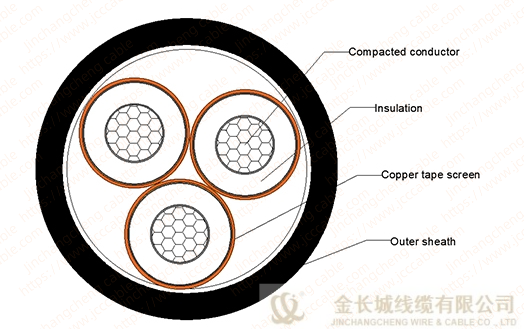

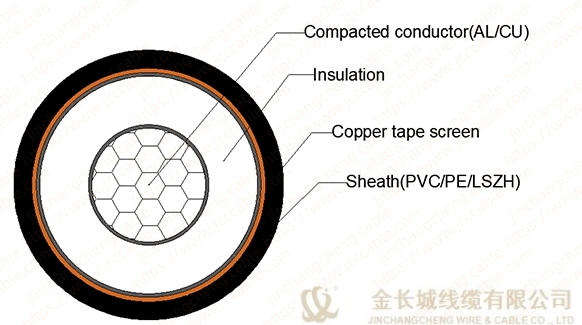

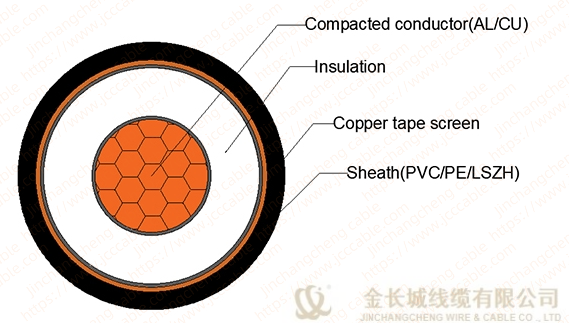

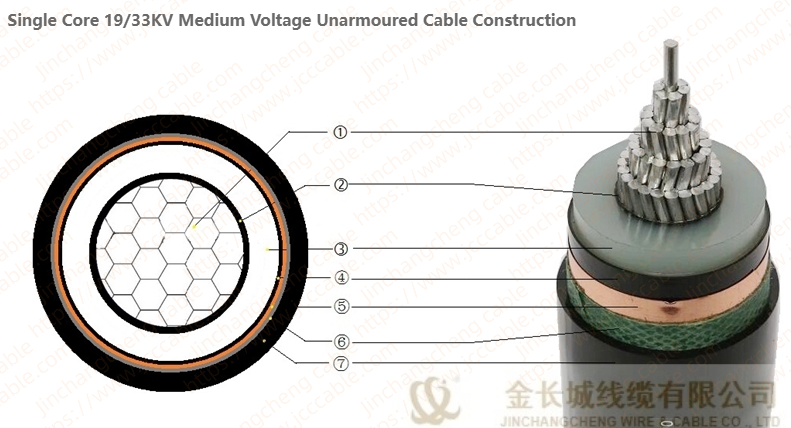

CONSTRUCTION

Rated voltage 3.6/6KV (7.2KV)

Nominal.Section	Conductor dia.	Nominal. Insinuation thickness	Cable Approx. Overall dia. mm		Cable Approx. Weight. Kg/Km				Max. D.C. resistance at 20℃ Ω/KM
mm2	mm	mm	Single core	Three core	Single core		Three core		CU	AL
mm2	mm	mm	Single core	Three core	CU	AL	CU	AL	CU	AL
10	3.69	2.5	15.30	29.80	324	263	1063	880	1.83	3.08
16	4.74	2.5	16.30	32.20	401	303	1332	1037	1.15	1.91
25	6.00	2.5	17.80	35.20	522	366	1717	1247	0.727	1.2
35	7.00	2.5	18.80	37.30	631	416	2069	1419	0.524	0.868
50	8.30	2.5	20.30	40.30	781	489	2543	1663	0.387	0.641
70	10.00	2.5	22.00	44.20	1009	588	3300	2027	0.268	0.443
95	11.60	2.5	23.80	48.00	1291	707	4210	2448	0.193	0.320
120	13.00	2.5	25.20	51.20	1548	810	5054	2825	0.153	0.253
150	14.60	2.5	27.00	54.90	1841	935	5991	3253	0.124	0.206

Rated voltage 6/10KV (11KV)

Nominal.Section	Conductor dia.	Nominal. Insinuation thickness	Cable Approx. Overall dia. mm		Cable Approx. Weight. Kg/Km				Max. D.C. resistance at 20℃ Ω/KM
mm2	mm	mm	Single core	Three core	Single core		Three core		CU	AL
mm2	mm	mm	Single core	Three core	CU	AL	CU	AL	CU	AL
16	4.74	3.4	18.30	36.20	468	370	1522	1227	1.15	1.91
25	6.00	3.4	19.60	39.20	585	429	1921	1451	0.727	1.2
35	7.00	3.4	20.80	41.60	706	491	2305	1655	0.524	0.868
50	8.30	3.4	22.10	44.60	851	560	2795	1915	0.387	0.641
70	10.00	3.4	24.00	48.50	1095	673	3572	2298	0.268	0.443
95	11.60	3.4	25.60	52.10	1371	788	4479	2716	0.193	0.320
120	13.00	3.4	27.20	55.30	1644	906	5338	3109	0.153	0.253
150	14.60	3.4	28.80	59.00	1931	1024	6292	3554	0.124	0.206

Rated voltage 8.7/15KV (17.5KV)

Nominal.Section	Conductor dia.	Nominal. Insinuation thickness	Approx.Cable Overall dia. mm		Approx. Cable Weight. Kg/Km				Max. D.C. resistance at 20℃ Ω/KM
mm2	mm	mm	Single core	Three core	Single core		Three core		CU	AL
mm2	mm	mm	Single core	Three core	CU	AL	CU	AL	CU	AL
25	6.00	4.5	22.00	44.40	672	516	2252	1782	0.727	1.2
35	7.00	4.5	23.20	46.70	798	583	2648	1998	0.524	0.868
50	8.30	4.5	24.50	49.70	947	656	3158	2279	0.387	0.641
70	10.00	4.5	25.90	53.60	1158	737	3962	2689	0.268	0.443
95	11.60	4.5	26.80	57.20	1454	870	4894	3131	0.193	0.320
120	13.00	4.5	28.40	60.50	1731	993	5781	3552	0.153	0.253
150	14.60	4.5	30.80	64.10	2047	1141	6754	4016	0.124	0.206

Rated voltage 12/20KV (24KV)

Nominal.Section	Conductor dia.	Nominal. Insinuation thickness	Approx.Cable Overall dia. mm		Approx. Cable Weight. Kg/Km				Max. D.C. resistance at 20℃ Ω/KM
mm2	mm	mm	Single core	Three core	Single core		Three core		CU	AL
mm2	mm	mm	Single core	Three core	CU	AL	CU	AL	CU	AL
25	6.00	5.5	24.00	48.50	756	601	2549	2079	0.727	1.2
35	7.00	5.5	25.00	50.80	875	660	2959	2309	0.524	0.868
50	8.30	5.5	26.50	53.80	1039	748	3488	2608	0.387	0.641
70	10.00	5.5	28.20	57.70	1284	863	4314	3041	0.268	0.443
95	11.60	5.5	30.00	61.30	1584	1001	5268	3505	0.193	0.320
120	13.00	5.5	31.40	64.50	1854	1116	6168	3938	0.153	0.253
150	14.60	5.5	33.20	68.20	2165	1259	7169	4431	0.124	0.206

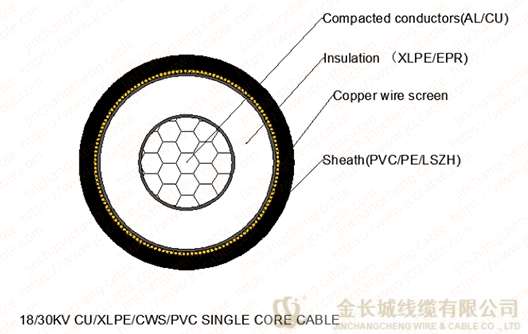

Rated voltage 18/30KV (36KV)

Nominal.Section	Conductor dia.	Nominal. Insinuation thickness	Approx.Cable Overall dia. mm		Approx. Cable Weight. Kg/Km				Max. D.C. resistance at 20℃ Ω/KM
mm2	mm	mm	Single core	Three core	Single core		Three core		CU	AL
mm2	mm	mm	Single core	Three core	CU	AL	CU	AL	CU	AL
25	6.00	8.0	30.40	62.20	1066	911	3722	3252	0.727	1.2
35	7.00	8.0	31.40	64.50	1195	980	4178	3528	0.524	0.868
50	8.30	8.0	32.70	67.50	1361	1070	4766	3886	0.387	0.641
70	10.00	8.0	34.60	71.40	1637	1216	5669	4396	0.268	0.443
95	11.60	8.0	36.40	75.10	1956	1373	6701	4939	0.193	0.320
120	13.00	8.0	37.80	78.30	2240	1502	7665	5436	0.153	0.253
150	14.60	8.0	39.40	81.90	2553	1647	8730	5992	0.124	0.206

Rated voltage 26/35KV (40.5KV)

Nominal.Section	Conductor dia.	Nominal. Insinuation thickness	Approx.Cable Overall dia. mm		Approx. Cable Weight. Kg/Km				Max. D.C. resistance at 20℃ Ω/KM
mm2	mm	mm	Single core	Three core	Single core		Three core		CU	AL
mm2	mm	mm	Single core	Three core	CU	AL	CU	AL	CU	AL
25	6.00	10.5	36.00	74.60	1383	1228	5003	4533	0.727	1.2
35	7.00	10.5	37.20	77.00	1537	1322	5508	4859	0.524	0.868
50	8.30	10.5	38.50	80.00	1715	1423	6150	5270	0.387	0.641
70	10.00	10.5	40.40	83.80	2008	1587	7112	5839	0.268	0.443
95	11.60	10.5	42.00	87.50	2326	1742	8210	6447	0.193	0.320
120	13.00	10.5	43.60	90.70	2641	1903	9230	7000	0.153	0.253
150	14.60	10.5	45.20	94.30	2968	2062	10358	7620	0.124	0.206
