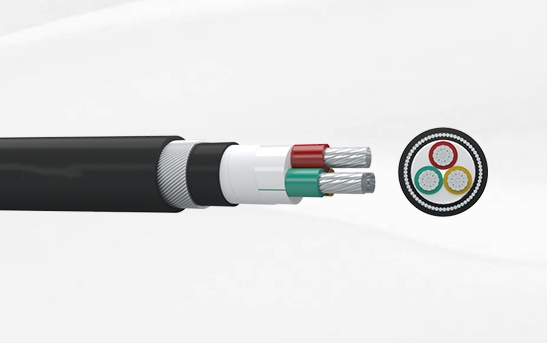

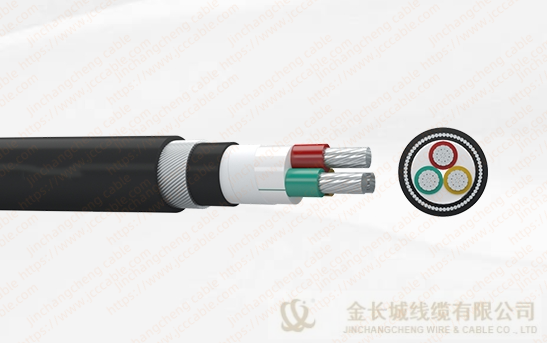

YJLV32 type 0.6/1KV XLPE Insulated Power Cable
Classification:
Product Description
Low Voltage(0.6/1KV) Power Cable-YJLV32
YJLV32 cable uses aluminum conductors, which are light and cost-effective. The cross-linked polyethylene insulation layer gives the cable excellent electrical properties and heat resistance, and the long-term operating temperature can reach 90°C. The fine steel wire armor layer provides excellent mechanical protection, enabling the cable to withstand external mechanical stress and tension. The outer PVC sheath enhances the cable's weather resistance and chemical corrosion resistance, ensuring its stable operation under various environmental conditions.
Application
These power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. They are suitable for laying Indoor, tunnel, cable trench, shaft or buried laying, The cable can withstand mechanical external forces and a certain tensile force, it widely used in transformer stations, electric power plants and industrial plants.
Construction
● Conductor: Aluminum, class 1 or class 2, solid or stranded, circular or circular compacted conductors
● Insulation: Cross-linked polyethylene XLPE
● Filler: Non-hygroscopic material
● Binder: Non-hygroscopic material
● Inner sheath: Polyvinyl chloride PVC
● Armour: Steel wire
● Binder: Non-hygroscopic material
● Outer sheath: Polyvinyl chloride PVC
Advantages：
Strong tensile strength: Due to the use of fine steel wire armor, YJLV32 cable has stronger tensile strength and is suitable for occasions that need to withstand large mechanical external forces.
Corrosion resistance: Both the insulation layer and the sheath layer of the cable have good corrosion resistance and can be used for a long time in harsh environments.
Long service life: Due to the use of high-quality materials and advanced production processes, the YJLV32 cable has a long service life, which can reduce the cost and frequency of cable replacement.
Wide application scenarios: As mentioned above, YJLV32 cable can be widely used in various occasions to meet different power transmission and distribution needs.
Standard
IEC 60228 Conductors of Insulate Cables
IEC 60502-1 Power Cables with Extruded Insulation and Their Accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1kV (Um=1.2kV) and 3kV(Um=3.6kV)
No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal | Nominal | Approx. | Approx. Weight | Max. D.C. Resistance of Conductor |
No. × mm² | No. | mm | mm | mm | mm | kg/km | Ω/km |
2×2.5 | 1 | 0.7 | 0.8 | 1.8 | 14.1 | 314 | 12.1 |
2×4 | 1 | 0.7 | 0.8 | 1.8 | 15.1 | 357 | 7.41 |
2×6 | 1 | 0.7 | 0.8 | 1.8 | 16.1 | 406 | 4.61 |
2×10 | 6 | 0.7 | 1.25 | 1.8 | 19.5 | 619 | 3.08 |
2×16 | 6 | 0.7 | 1.25 | 1.8 | 21.1 | 743 | 1.91 |
2×25 | 6 | 0.9 | 1.6 | 1.8 | 25.0 | 1078 | 1.20 |
2×35 | 6 | 0.9 | 1.6 | 1.8 | 27.0 | 1243 | 0.868 |
2×50 | 6 | 1.0 | 1.6 | 1.8 | 30.0 | 1459 | 0.641 |
3×2.5 | 1 | 0.7 | 0.8 | 1.8 | 14.6 | 340 | 12.1 |
3×4 | 1 | 0.7 | 0.8 | 1.8 | 15.6 | 388 | 7.41 |
3×6 | 1 | 0.7 | 0.8 | 1.8 | 16.7 | 448 | 4.61 |
3×10 | 6 | 0.7 | 1.25 | 1.8 | 20.4 | 682 | 3.08 |
3×16 | 6 | 0.7 | 1.25 | 1.8 | 22.1 | 835 | 1.91 |
3×25 | 6 | 0.9 | 1.6 | 1.8 | 26.2 | 1221 | 1.20 |
3X35 | 6 | 0.9 | 1.6 | 1.8 | 28.4 | 1414 | 0.868 |
3×50 | 6 | 1.0 | 1.6 | 1.9 | 31.8 | 1681 | 0.641 |
4×2.5 | 1 | 0.7 | 0.8 | 1.8 | 15.4 | 377 | 12.1 |
4×4 | 1 | 0.7 | 0.8 | 1.8 | 16.6 | 436 | 7.41 |
4×6 | 1 | 0.7 | 1.25 | 1.8 | 18.7 | 631 | 4.61 |
4×10 | 6 | 0.7 | 1.25 | 1.8 | 21.8 | 779 | 3.08 |
4×16 | 6 | 0.7 | 1.6 | 1.8 | 24.4 | 1076 | 1.91 |
4×25 | 6 | 0.9 | 1.6 | 1.8 | 28.3 | 1404 | 1.20 |
4×35 | 6 | 0.9 | 1.6 | 1.9 | 30.9 | 1645 | 0.868 |
4×50 | 6 | 1.0 | 1.6 | 2.0 | 34.7 | 1977 | 0.641 |
5×2.5 | 1 | 0.7 | 0.8 | 1.8 | 16.3 | 419 | 12.1 |
5×4 | 1 | 0.7 | 1.25 | 1.8 | 18.5 | 606 | 7.41 |
5×6 | 1 | 0.7 | 1.25 | 1.8 | 19.9 | 704 | 4.61 |
5×10 | 6 | 0.7 | 1.25 | 1.8 | 23.3 | 870 | 3.08 |
5×16 | 6 | 0.7 | 1.6 | 1.8 | 26.1 | 1227 | 1.91 |
5×25 | 6 | 0.9 | 1.6 | 1.8 | 30.5 | 1597 | 1.20 |
5×35 | 6 | 0.9 | 1.6 | 1.9 | 33.4 | 1890 | 0.868 |
5×50 | 6 | 1.0 | 2.0 | 2.1 | 39.3 | 2609 | 0.641 |
3×4+1×2.5 | 1/1 | 0.7/0.7 | 0.8 | 1.8 | 16.3 | 422 | 7.41/12.1 |
3×6+1×4 | 1/1 | 0.7/0.7 | 1.25 | 1.8 | 18.4 | 608 | 4.61/7.41 |
3×10+1×6 | 6/1 | 0.7/0.7 | 1.25 | 1.8 | 21.0 | 736 | 3.08/4.61 |
3×16+1×10 | 6/6 | 0.7/0.7 | 1.25 | 1.8 | 23.2 | 905 | 1.91/3.08 |
3×25+1×16 | 6/6 | 0.9/0.7 | 1.6 | 1.8 | 27.3 | 1321 | 1.20/1.91 |
3×35+1×16 | 6/6 | 0.9/0.7 | 1.6 | 1.8 | 29.1 | 1489 | 0.868/1.91 |
3×50+2×25 | 6/6 | 1.0/0.9 | 2.0 | 2.0 | 36.4 | 2285 | 0.641/1.20 |
4×4+1×2.5 | 1/1 | 0.7/0.7 | 1.25 | 1.8 | 18.2 | 587 | 7.41/12.1 |
4×6+1×4 | 1/1 | 0.7/0.7 | 1.25 | 1.8 | 19.6 | 682 | 4.61/7.41 |
4×10+1×6 | 6/1 | 0.7/0.7 | 1.25 | 1.8 | 22.6 | 838 | 3.08/4.61 |
4×16+1×10 | 6/6 | 0.7/0.7 | 1.6 | 1.8 | 25.7 | 1182 | 1.91/3.08 |
4×25+1×16 | 6/6 | 0.9/0.7 | 1.6 | 1.8 | 29.6 | 1515 | 1.20/1.91 |
4×35+1×16 | 6/6 | 0.9/0.7 | 1.6 | 1.9 | 32.0 | 1750 | 0.868/1.91 |
4×50+1×25 | 6/6 | 1.0/0.9 | 2.0 | 2.1 | 38.0 | 2485 | 0.641/1.20 |
Application
These power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. They are suitable for laying Indoor, tunnel, cable trench, shaft or buried laying, The cable can withstand mechanical external forces and a certain tensile force, it widely used in transformer stations, electric power plants and industrial plants.
