YJLV22 type 0.6/1KV XLPE Insulated Power Cable
Classification:
Product Description
Low Voltage(0.6/1KV) Power Cable-YJLV22

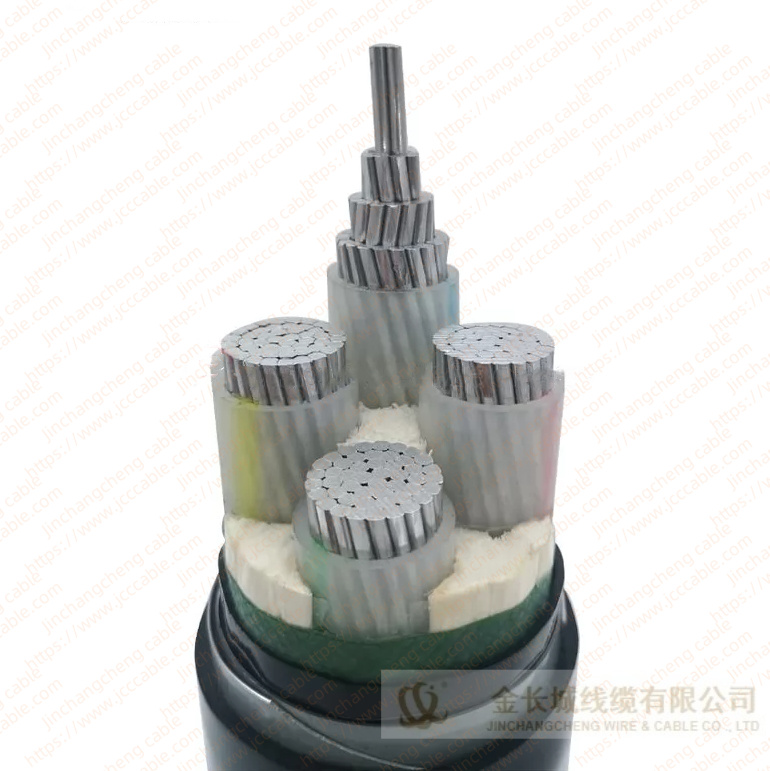

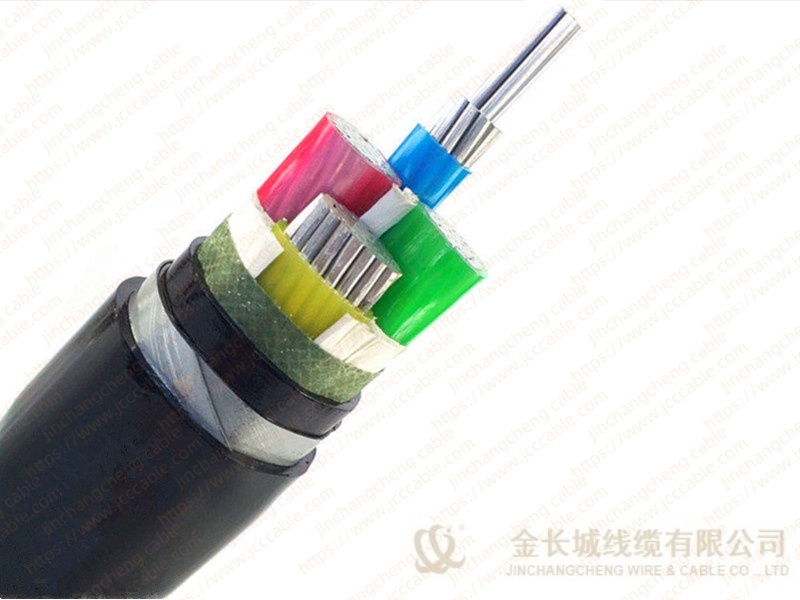

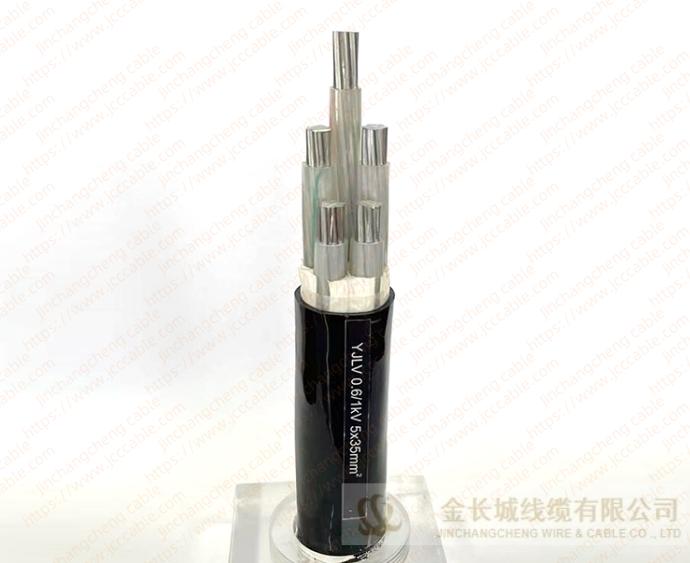

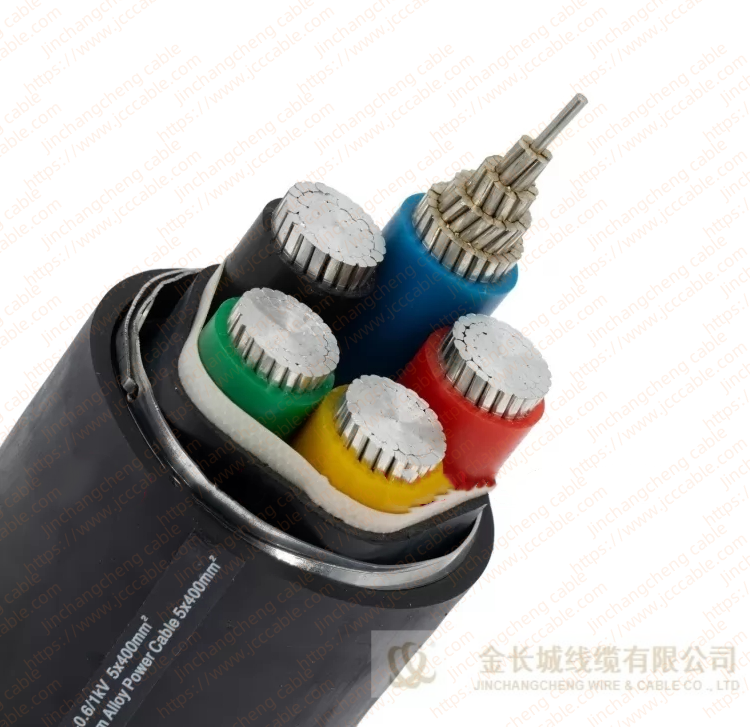

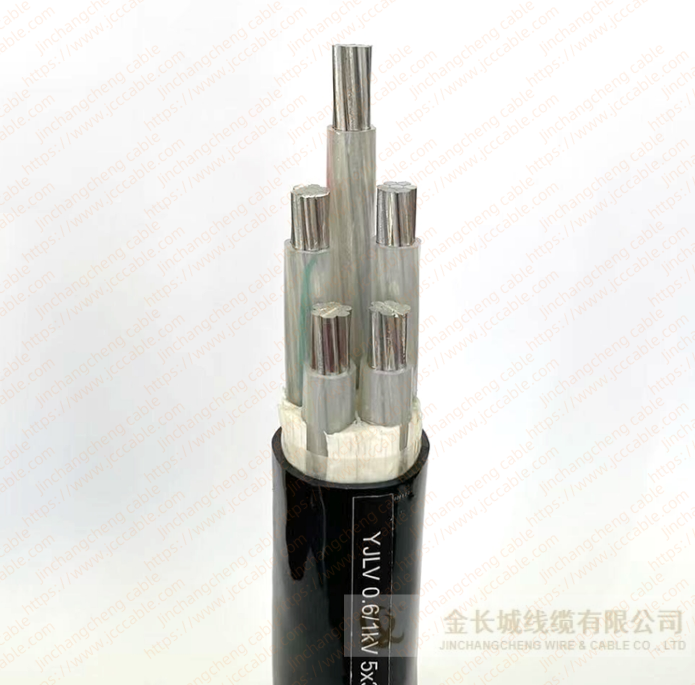

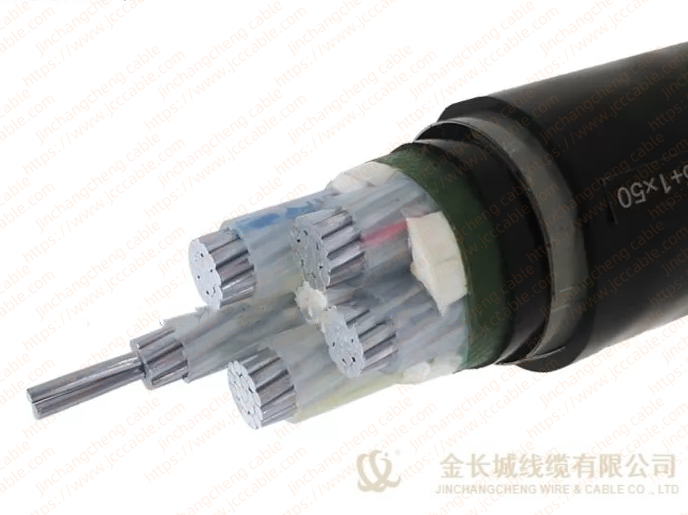

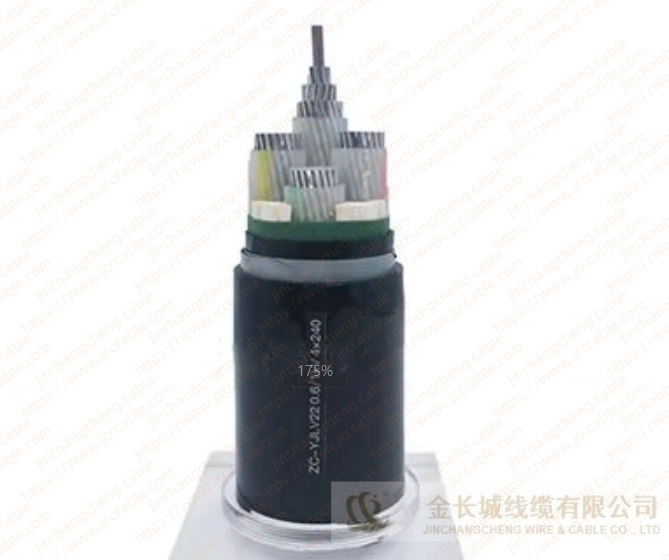

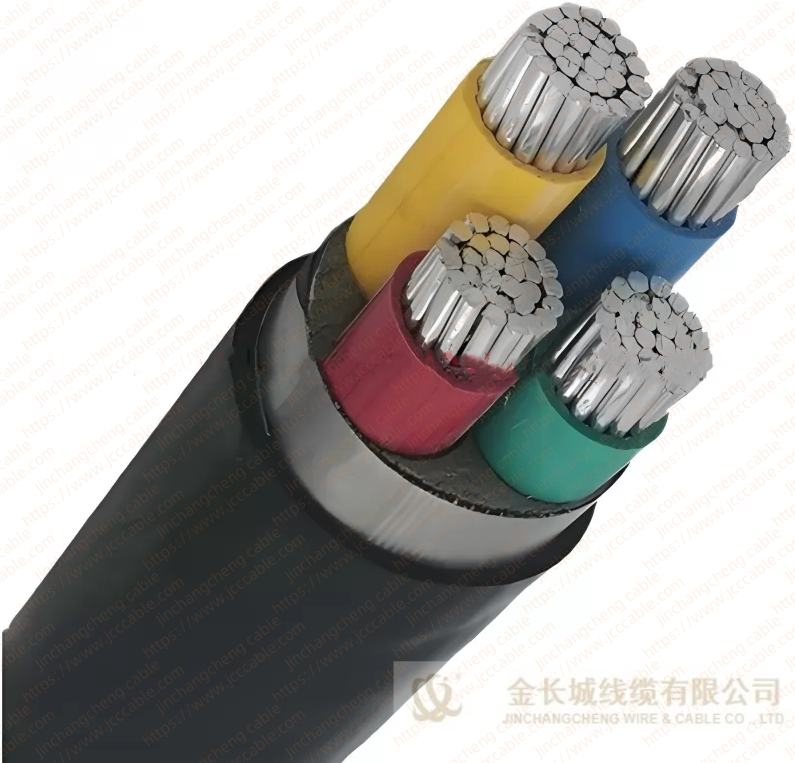

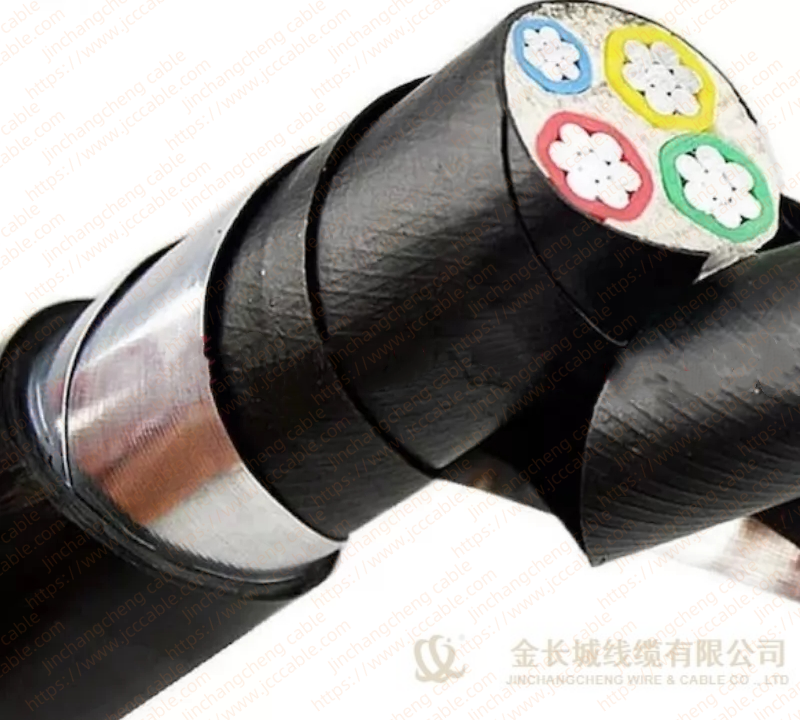

The cable consists of an aluminum conductor, a cross-linked polyethylene insulation layer, a steel belt or steel wire armor layer, and a polyvinyl chloride sheath. Widely used in power, construction, industry, and other fields. It is suitable for fixed installation indoors, in tunnels, pipelines, or directly buried underground.
YJLV22 Cable Standards:
IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)
TECHNICAL DATA :
Voltage Rating Uo/U (Um) 0.6/1 (1.2)kV
Nominal Voltage DC (core-earth/core-core) :1.8/1.8kV
Test Voltage:4kV
Temperature Rating:
Flexed: 5°C to +90°C
Fixed: -35°C to +90°C
Maximum Short Circuit Temperature:
+250°C (max 5 seconds)
Minimum Bend Radius:
Single core: 15 x overall diameter
Multi core: 12 x overall diameter
Advantage:
Safe and reliable: cross-linked polyethylene insulation is used, which is resistant to voltage shock and short circuit, and reduces the failure rate.
Corrosion resistance: The aluminum core and PVC sheath are corrosion-resistant and suitable for harsh environments, such as acid, alkali, and salt environments, humid areas, etc.
Excellent mechanical properties: The steel belt armor enhances the mechanical strength of the cable, has high tensile strength, is resistant to bending and impact, and is suitable for various laying environments.
Easy installation: The cable is light in weight and flexible, reducing construction time.
Good electromagnetic compatibility: Reduce electromagnetic interference and improve system stability.
Low smoke and halogen-free: It produces less smoke and no harmful gases during combustion, which meets environmental protection requirements.
Features
Lightweight design: The density of aluminum is lower than that of copper, which reduces the weight of the cable, facilitates transportation and installation, and reduces construction costs.
Excellent electrical performance: The high-purity electrolytic aluminum conductor ensures excellent conductivity, and the cross-linked polyethylene insulation layer provides reliable insulation protection.
Strong corrosion resistance: Both the aluminum core and the polyvinyl chloride sheath have good corrosion resistance and are suitable for various complex environments.
Safety and environmental protection: Low-smoke halogen-free materials are used, with excellent flame retardant properties to ensure the safety of personnel and equipment.
Usage Characteristics
The maximum rated operating temperature of the conductor is 90℃
The maximum short-circuit temperature of the conductor shall not exceed 250℃
The maximum time shall not exceed 5 seconds
The installation and laying temperature of the cable shall not be lower than 0℃
The laying temperature in the air shall be 40℃
The laying temperature in the soil shall be 25℃.

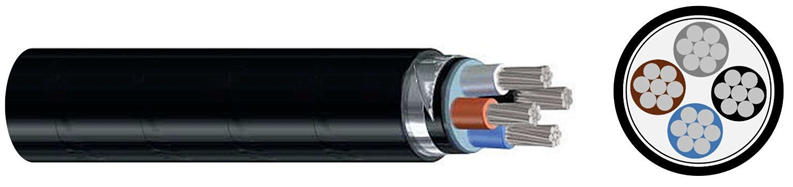

CONSTRUCTION :

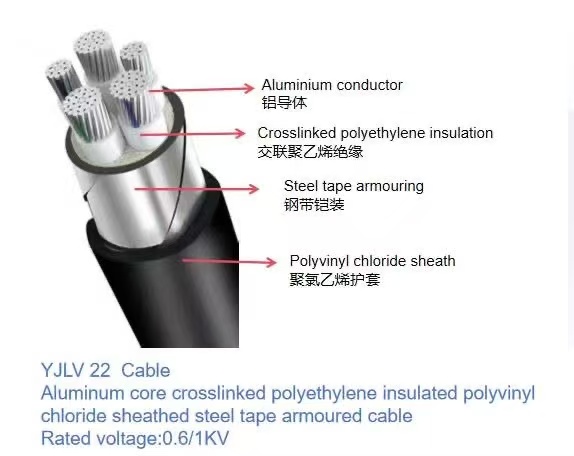

YJLV22 Cable Construction
PARAMETER :
0.6/1kV-1 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||||||
Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
weight | ||||||||
mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
1X10 | 0.7 | 0.2 | 1.8 | 11.8 | 206 | 3.08 | 58 | 47 |
1X16 | 0.7 | 0.2 | 1.8 | 12.9 | 247 | 1.91 | 75 | 62 |
1X25 | 0.9 | 0.2 | 1.8 | 14.6 | 310 | 1.2 | 100 | 78 |
1X35 | 0.9 | 0.2 | 1.8 | 15.2 | 352 | 0.868 | 120 | 94 |
0.6/1kV-2 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||||||
Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
weight | ||||||||
mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
2X2.5 | 0.7 | 0.2 | 1.8 | 13.4 | 236 | 12.1 | - | 23 |
2X4 | 0.7 | 0.2 | 1.8 | 14.3 | 269 | 7.41 | - | 30 |
2X6 | 0.7 | 0.2 | 1.8 | 15.3 | 307 | 4.61 | - | 38 |
2X10 | 0.7 | 0.2 | 1.8 | 17.8 | 397 | 3.08 | 50 | 47 |
2X16 | 0.7 | 0.2 | 1.8 | 20 | 493 | 1.91 | 64 | 62 |
2X25 | 0.9 | 0.2 | 1.8 | 23.3 | 643 | 1.2 | 86 | 78 |
2X35 | 0.9 | 0.2 | 1.8 | 24.6 | 738 | 0.868 | 105 | 94 |
0.6/1kV-3 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||||||
Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
weight | ||||||||
mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
3X2.5 | 0.7 | 0.2 | 1.8 | 13.9 | 257 | 12.1 | - | 23 |
3X4 | 0.7 | 0.2 | 1.8 | 14.8 | 296 | 7.41 | - | 30 |
3X6 | 0.7 | 0.2 | 1.8 | 16 | 342 | 4.61 | - | 38 |
3X10 | 0.7 | 0.2 | 1.8 | 18.6 | 447 | 3.08 | 50 | 47 |
3X16 | 0.9 | 0.2 | 1.8 | 21 | 563 | 1.91 | 64 | 62 |
3X25 | 0.9 | 0.2 | 1.8 | 24.6 | 744 | 1.2 | 86 | 78 |
0.6/1kV-4 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||||||
Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
weight | ||||||||
mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
4X2.5 | 0.7 | 0.2 | 1.8 | 14.7 | 288 | 12.1 | - | 23 |
4X4 | 0.7 | 0.2 | 1.8 | 15.8 | 334 | 7.41 | - | 30 |
4X6 | 0.7 | 0.2 | 1.8 | 17 | 384 | 4.61 | - | 38 |
4X10 | 0.7 | 0.2 | 1.8 | 20 | 509 | 3.08 | 50 | 47 |
4X16 | 0.9 | 0.2 | 1.8 | 22.7 | 649 | 1.91 | 64 | 62 |
4X25 | 0.9 | 0.2 | 1.8 | 26.7 | 880 | 1.2 | 86 | 78 |
0.6/1kV-5 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||||||
Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
weight | ||||||||
mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
5X2.5 | 0.7 | 0.2 | 1.8 | 15.6 | 321 | 12.1 | - | 23 |
5X4 | 0.7 | 0.2 | 1.8 | 16.8 | 376 | 7.41 | - | 30 |
5X6 | 0.7 | 0.2 | 1.8 | 18.2 | 443 | 4.61 | - | 38 |
5X10 | 0.7 | 0.2 | 1.8 | 21.6 | 592 | 3.08 | 50 | 47 |
5X16 | 0.7 | 0.2 | 1.8 | 24.6 | 763 | 1.91 | 64 | 62 |
5X25 | 0.9 | 0.2 | 1.8 | 29 | 1029 | 1.2 | 86 | 78 |
0.6/1kV-3+1core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||||||
Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
weight | ||||||||
mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
3X4+1X2.5 | 0.7/0.7 | 0.2 | 1.8 | 15.5 | 318 | 7.41/12.1 | - | 30 |
3X6+1X4 | 0.7/0.7 | 0.2 | 1.8 | 16.8 | 371 | 4.61/7.41 | - | 38 |
3X10+1X6 | 0.7/0.7 | 0.2 | 1.8 | 19.3 | 478 | 3.08/4.61 | 50 | 47 |
3X16+1X10 | 0.7/0.7 | 0.2 | 1.8 | 22.1 | 615 | 1.91/3.08 | 64 | 62 |
3X25+1X16 | 0.9/0.7 | 0.2 | 1.8 | 25.1 | 794 | 1.2/1.91 | 86 | 78 |
0.6/1kV-4+1core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||||||
Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
weight | ||||||||
mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
4X4+1X2.5 | 0.7/0.7 | 0.2 | 1.8 | 16.3 | 365 | 7.41/12.1 | - | 30 |
4X6+1X4 | 0.7/0.7 | 0.2 | 1.8 | 17.7 | 429 | 4.61/7.41 | - | 38 |
4X10+1X6 | 0.7/0.7 | 0.2 | 1.8 | 20.3 | 561 | 3.08/4.61 | 50 | 47 |
4X16+1X10 | 0.7/0.7 | 0.2 | 1.8 | 24 | 728 | 1.91/3.08 | 64 | 62 |
4X25+1X16 | 0.9/0.7 | 0.2 | 1.8 | 28.1 | 974 | 1.2/1.91 | 86 | 78 |
0.6/1kV-3+2 core aluminum conductor XLPE insulated steel tape armored PVC sheathed power cable | ||||||||
Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. | Max.D.C resistance of conductor（20℃） | Current carrying capacity | |
weight | ||||||||
mm2 | mm | mm | mm | mm | kg/km | Ω/km | In Air(A) | In Ground(A) |
3X4+2X2.5 | 0.7/0.7 | 0.2 | 1.8 | 16.6 | 354 | 7.41/12.1 | - | 30 |
3X6+2X4 | 0.7/0.7 | 0.2 | 1.8 | 18 | 416 | 4.61/7.41 | - | 38 |
3X10+2X6 | 0.7/0.7 | 0.2 | 1.8 | 20.9 | 531 | 3.08/4.61 | 50 | 47 |
3X16+2X10 | 0.7/0.7 | 0.2 | 1.8 | 24 | 694 | 1.91/3.08 | 64 | 62 |
3X25+2X16 | 0.9/0.7 | 0.2 | 1.8 | 28.1 | 920 | 1.2/1.91 | 86 | 78 |
