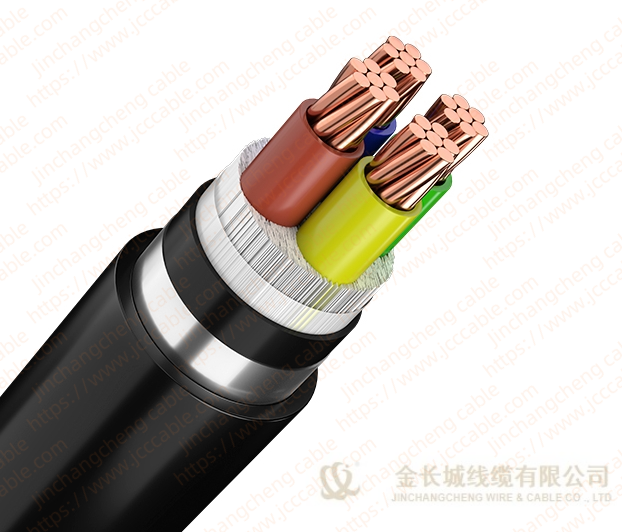

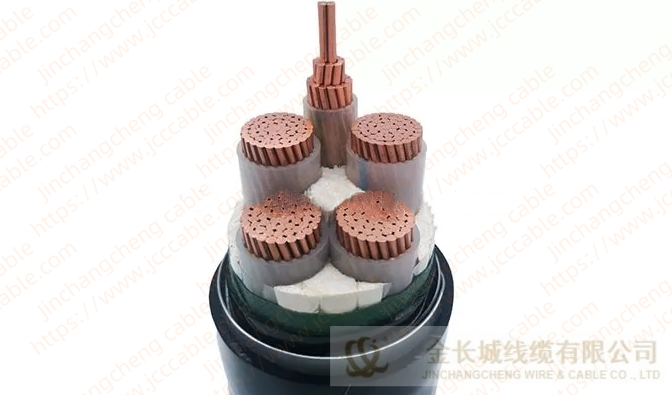

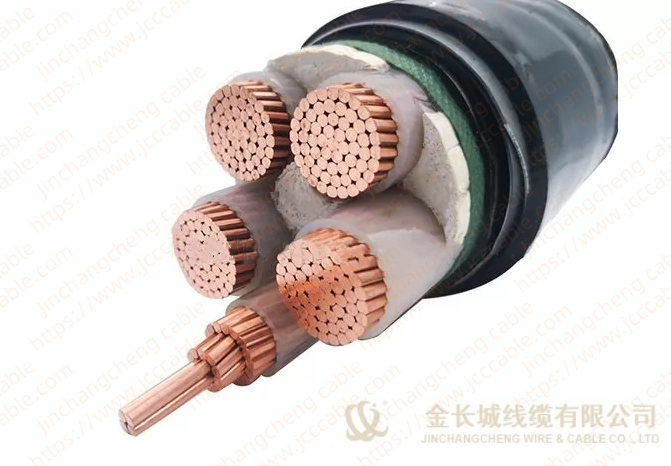

YJV22 type 0.6/1KV XLPE Insulated Power Cable
Key words:
Classification:
Product Description
Low Voltage(0.6/1KV) Power Cable-YJV22

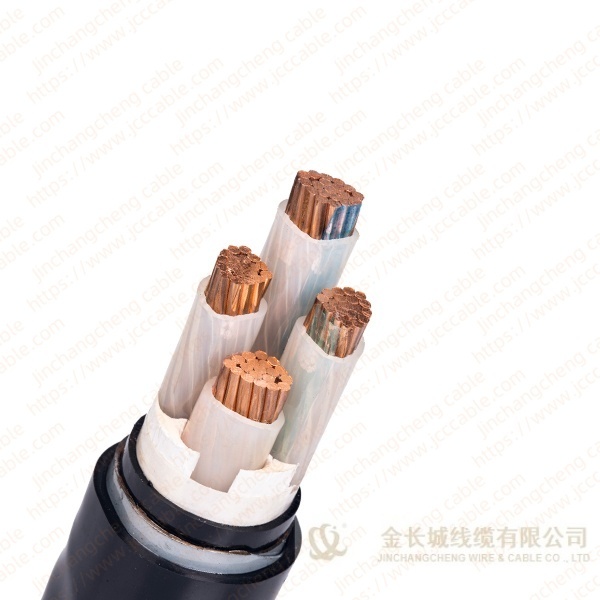

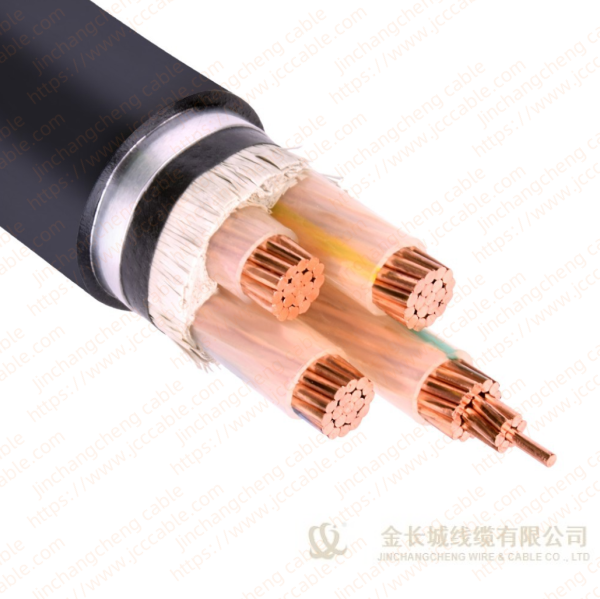

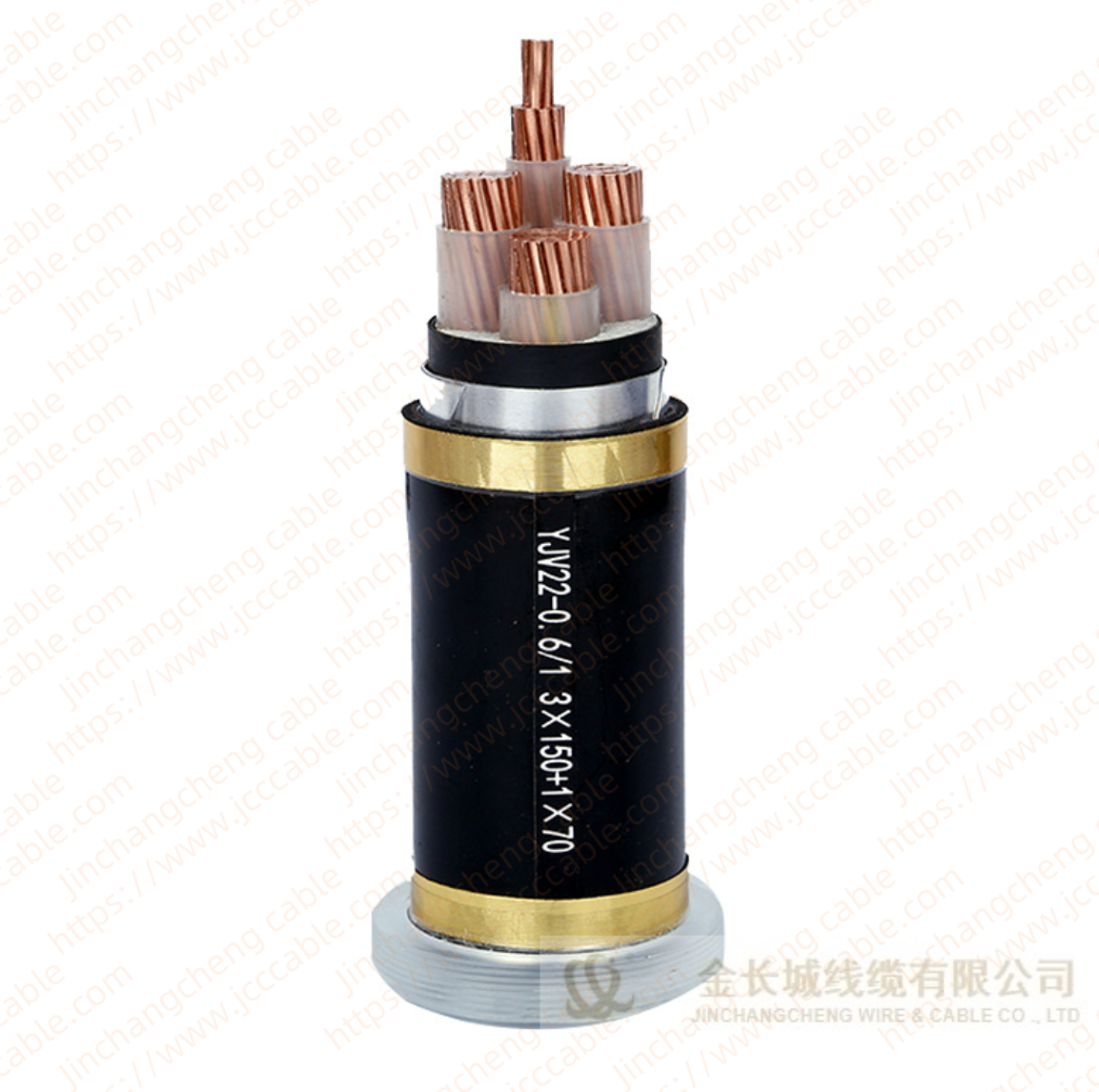

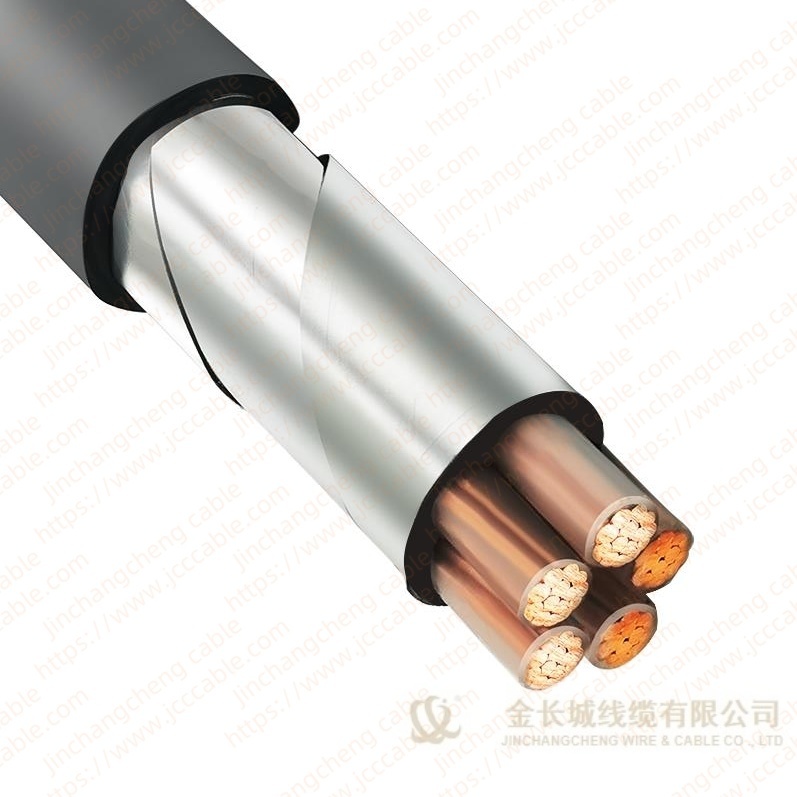

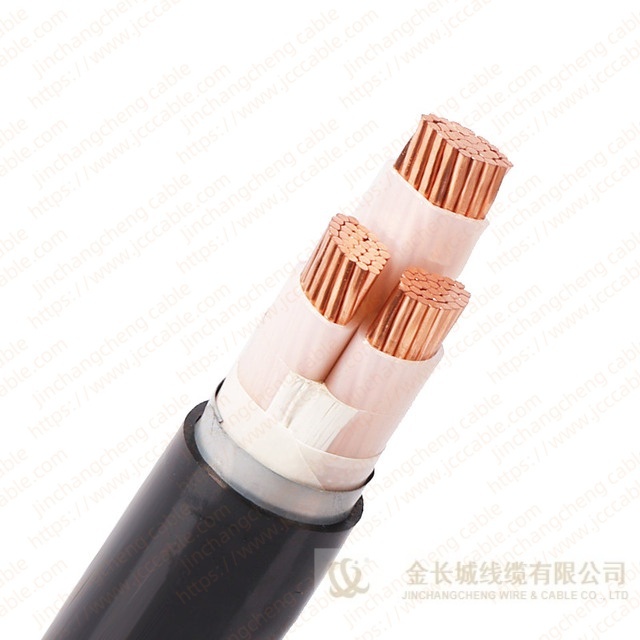

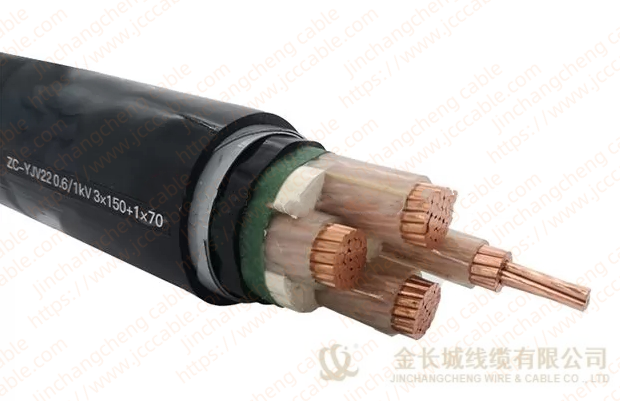

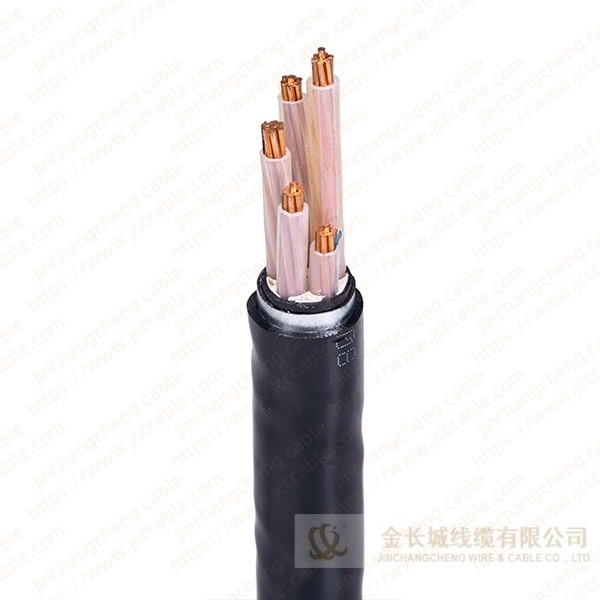

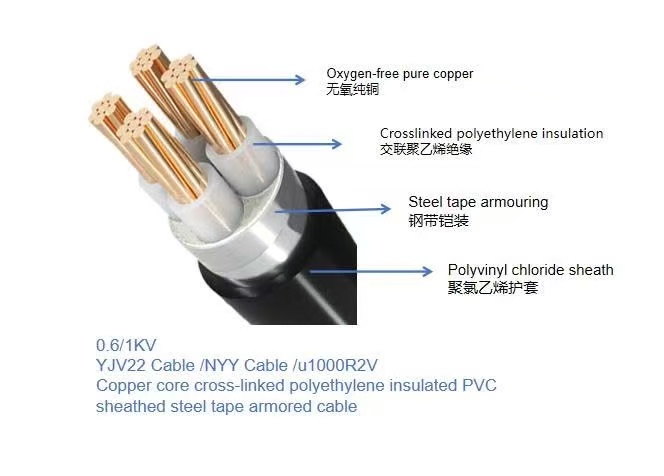

This product is a copper core XLPE insulated armored power cable with excellent conductivity, insulation and mechanical properties. It is produced strictly in accordance with GB/T12706-2008 standard, and can be customized according to customer needs to meet international standards such as IEC, BS, DIN, ANSI, etc. to meet different application scenarios.
YJV22 Cable Application
YJV22 cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.
YJV22 Cable Standards:
IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)
Advantages:
The advantages of copper core power cables are mainly reflected in their physical and electrical properties, including low resistivity, high strength, good ductility, strong fatigue resistance, good stability, large current carrying capacity, low voltage loss, low energy consumption, low heating temperature, oxidation resistance and corrosion resistance.
Standard
IEC 60228 Conductors of Insulate Cables
IEC 60502-1 Power Cables with Extruded Insulation and Their Accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1kV (Um=1.2kV) and 3kV(Um=3.6kV)
TECHNICAL DATA :
Voltage Rating Uo/U (Um) 0.6/1 (1.2)kV
Nominal Voltage DC (core-earth/core-core) :1.8/1.8kV
Test Voltage:4kV
Temperature Rating:
Flexed: 5°C to +90°C
Fixed: -35°C to +90°C
Maximum Short Circuit Temperature:
+250°C (max 5 seconds)
Minimum Bend Radius:
Single core: 15 x overall diameter
Multi core: 12 x overall diameter
Product structure and parameter
No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal | Nominal | Approx. | Approx. Weight | Max. D.C. Resistance of Conductor |
No. × mm² | No. | mm | mm | mm | mm | kg/km | Ω/km |
2×1.5 | 1 | 0.7 | 0.2 | 1.8 | 12.2 | 220 | 12.1 |
2×2.5 | 1 | 0.7 | 0.2 | 1.8 | 13.0 | 256 | 7.41 |
2×4 | 1 | 0.7 | 0.2 | 1.8 | 14.0 | 307 | 4.61 |
2×6 | 1 | 0.7 | 0.2 | 1.8 | 15.0 | 370 | 3.08 |
2×10 | 6 | 0.7 | 0.2 | 1.8 | 17.5 | 509 | 1.83 |
2×16 | 6 | 0.7 | 0.2 | 1.8 | 19.1 | 659 | 1.15 |
2×25 | 6 | 0.9 | 0.2 | 1.8 | 22.3 | 915 | 0.727 |
2×35 | 6 | 0.9 | 0.2 | 1.8 | 24.3 | 1147 | 0.524 |
2×50 | 6 | 1.0 | 0.2 | 1.8 | 27.3 | 1463 | 0.387 |
2×70 | 12 | 1.1 | 0.2 | 1.9 | 30.9 | 1939 | 0.268 |
2×95 | 15 | 1.1 | 0.2 | 2.0 | 35.4 | 2587 | 0.193 |
2×120 | 18 | 1.2 | 0.5 | 2.2 | 40.2 | 3557 | 0.153 |
2×150 | 18 | 1.4 | 0.5 | 2.3 | 44.2 | 4269 | 0.124 |
2×185 | 30 | 1.6 | 0.5 | 2.5 | 49.0 | 5250 | 0.0991 |
Application
These power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be laying indoor, tunnel and underground. Able to bear external mechanical force, but unable to bear large pulling force.
