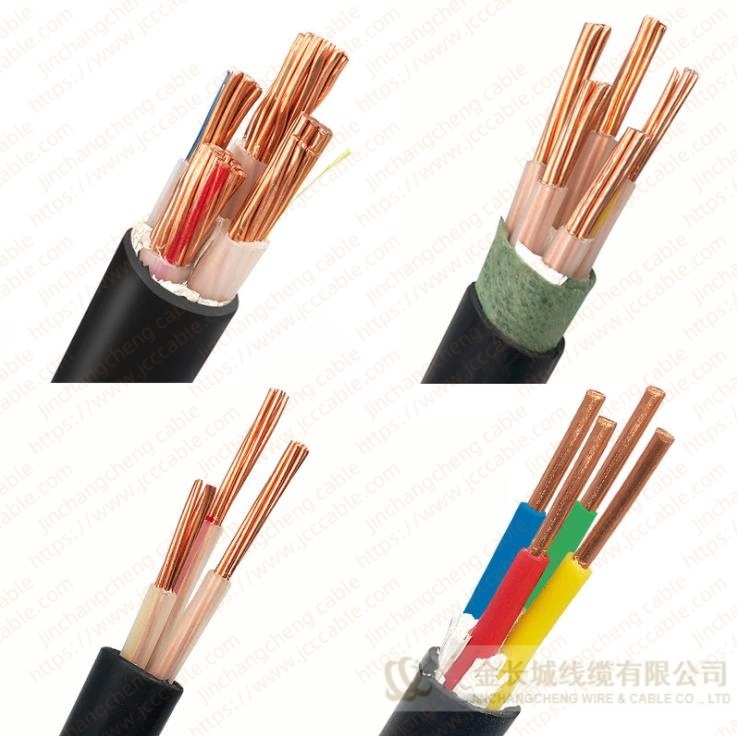

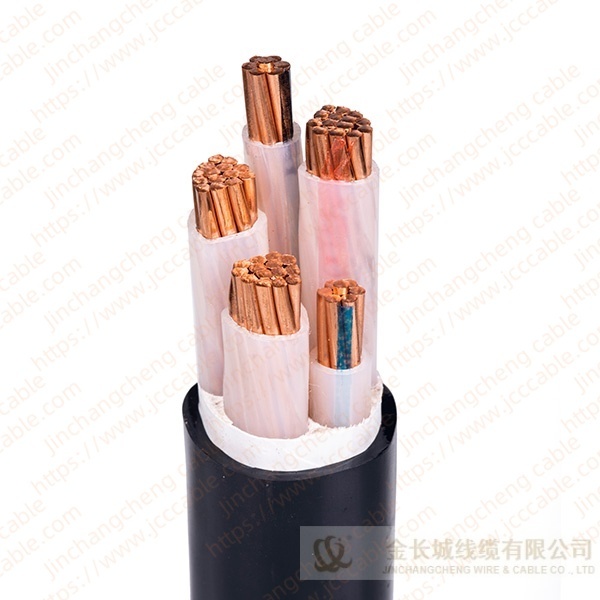

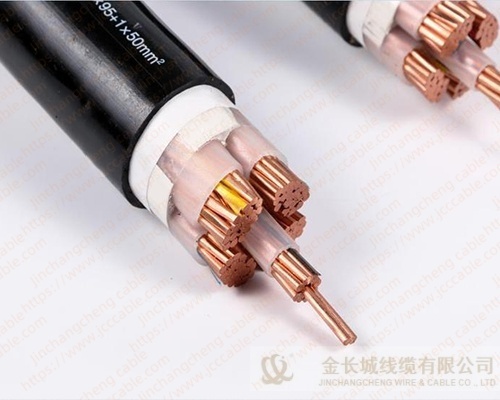

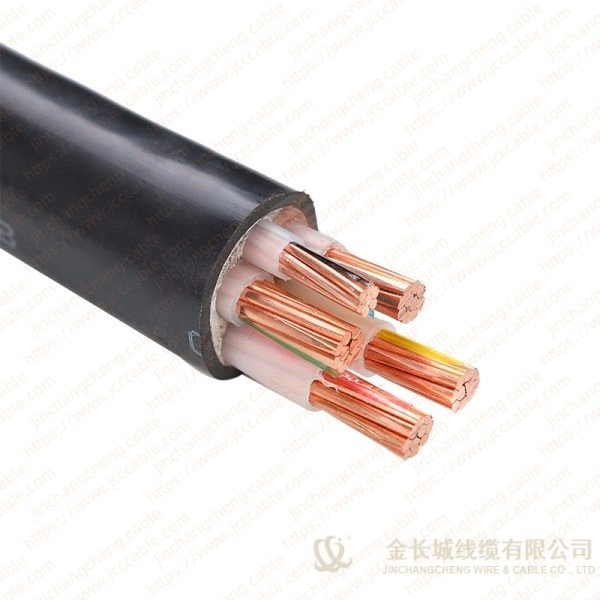

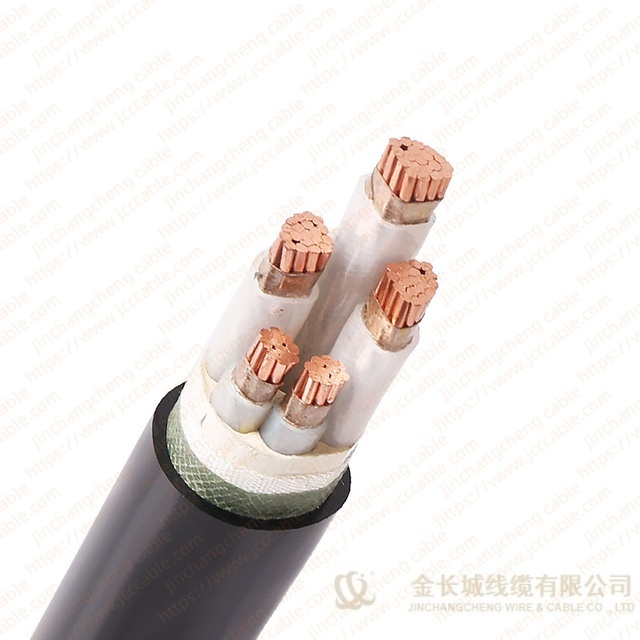

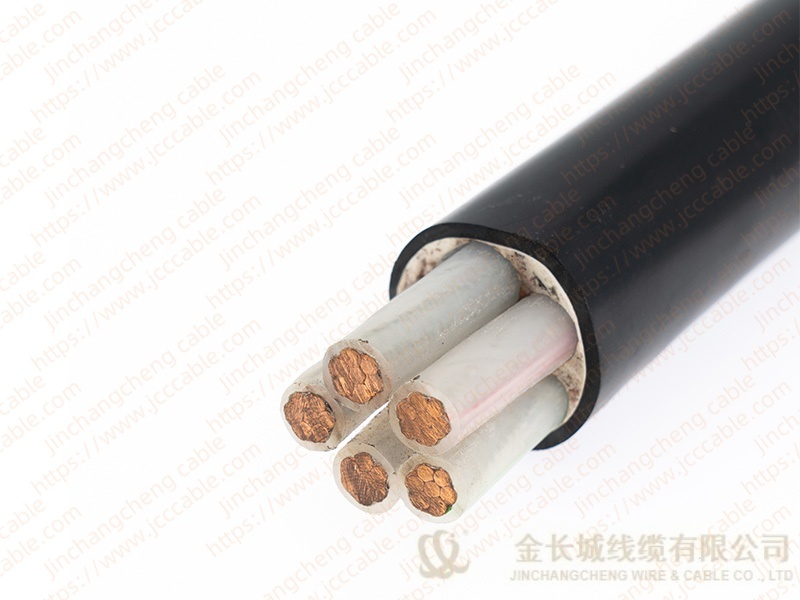

YJV type 0.6/1KV XLPE Insulated Power Cable
Key words:
Classification:
Product Description
Low Voltage(0.6/1KV) Power Cable-YJV
Copper core cross-linked polyethylene insulated power cable is a power cable product with excellent performance, safety, reliability and wide application. It complies with international and domestic standards such as IEC 60502, IEC 60228, GB/T 12706.1-2008, and has passed CE, CCC and other certifications. It is one of the commonly used cables in power engineering.
Construction

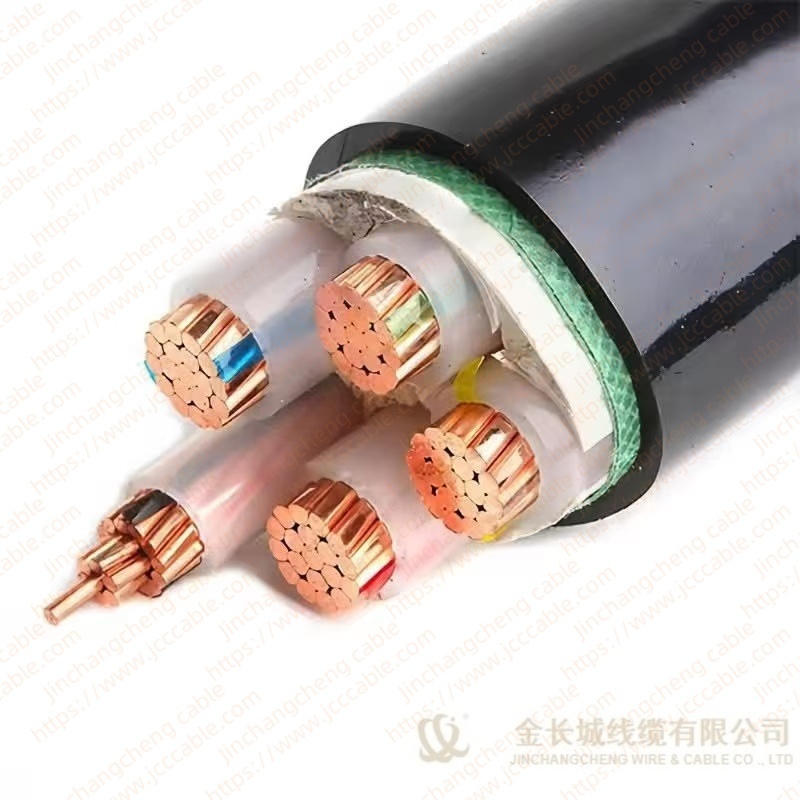

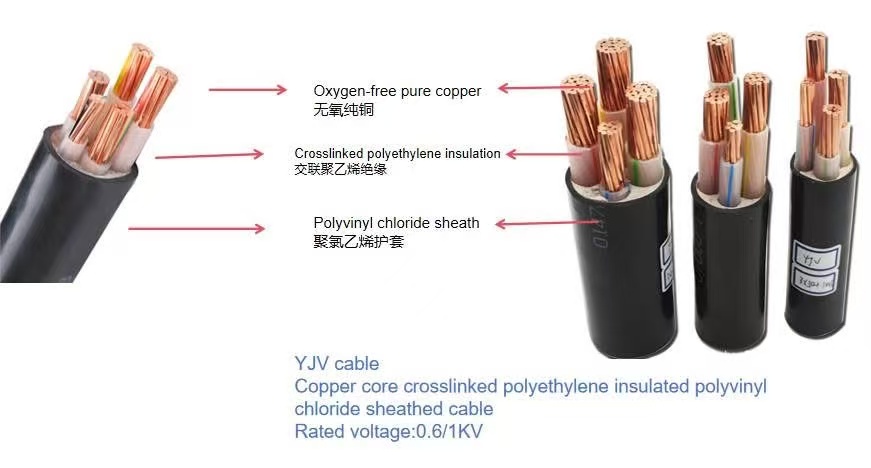

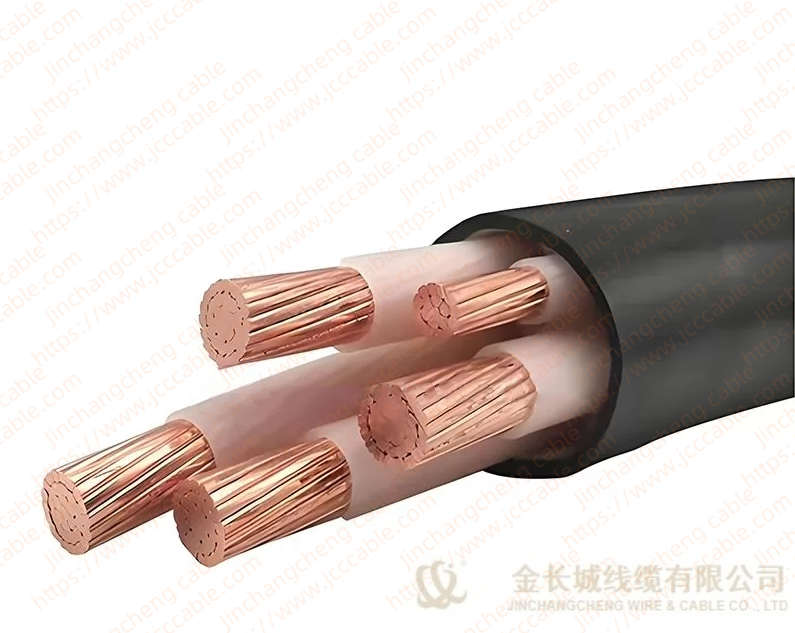

● Conductor: Copper, class 1 or class 2, solid or stranded, circular or circular compacted conductors
● Insulation: Cross-linked polyethylene XLPE
● Outer sheath: Polyvinyl chloride PVC
Specification
IEC 60228 Conductors of Insulate Cables
IEC 60502-1 Power Cables with Extruded Insulation and Their accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1kV (Um=1.2kV) and 3kV(Um=3.6kV)
Features
Conductor Material: High-purity copper ensures excellent conductivity and minimal energy loss. Available in stranded configurations for flexibility.
Insulation: Options include XLPE for high thermal resistance and PVC for chemical resistance and flexibility.

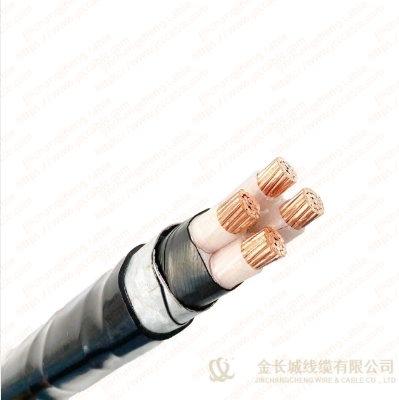

Armor Protection: Reinforced with steel tape or wire (STA/SWA) to protect against mechanical damage and rodent attacks.
Voltage Rating & Temperature Resistance: Suitable for voltages ranging from 0.6/1 kV to 35 kV and operating efficiently in temperatures from -15°C to +90°C.
Compliance: Meets international standards such as IEC 60502, BS 6622, and NFC 33226 for quality and safety. This robust design by our Copper Conductor Power Cable
Physical property:
Maximum operating temperature of conductor:
70℃ (PVC insulation), 90℃ (XLPE insulation)
Minimum operating temperature:
-5℃ (PVC or LSZH sheath), -20℃ (PE sheath)
Short-circuit temperature (no more than 5 seconds) :
140℃-160℃ (PVC insulation), 250℃ (XLPE insulation)
Advantage:
Excellent electrical properties: Excellent conductivity, reliable insulation performance, suitable for high voltage and high current power transmission.
Excellent physical properties: High temperature resistance, cold resistance, oil resistance, chemical corrosion resistance, adaptable to various harsh environments.
Good mechanical properties: Good flexibility, high tensile strength, easy to lay and install.
Safe and reliable: Comply with international standards such as IEC 60502, IEC 60228, passed CE, CCC and other certifications, with good safety performance.
Long service life: The cross-linked polyethylene insulation layer has good aging resistance, which extends the service life of the cable.
Product structure and parameter
No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal | Approx. | Approx. Weight | Max. D.C. Resistance of Conductor |
No. × mm² | No. | mm | mm | mm | kg/km | Ω/km |
1×1.5 | 1 | 0.7 | 1.4 | 5.6 | 44 | 12.1 |
1×2.5 | 1 | 0.7 | 1.4 | 6.0 | 55 | 7.41 |
1×4 | 1 | 0.7 | 1.4 | 6.4 | 72 | 4.61 |
1×6 | 1 | 0.7 | 1.4 | 6.9 | 95 | 3.08 |
1×10 | 6 | 0.7 | 1.4 | 8.2 | 140 | 1.83 |
1×16 | 6 | 0.7 | 1.4 | 9.0 | 199 | 1.15 |
1×25 | 6 | 0.9 | 1.4 | 10.6 | 295 | 0.727 |
1×35 | 6 | 0.9 | 1.4 | 11.6 | 389 | 0.524 |
1×50 | 6 | 1.0 | 1.4 | 13.1 | 512 | 0.387 |
1×70 | 12 | 1.1 | 1.4 | 14.8 | 714 | 0.268 |
1×95 | 15 | 1.1 | 1.5 | 16.8 | 968 | 0.193 |
1×120 | 18 | 1.2 | 1.5 | 18.4 | 1204 | 0.153 |
1×150 | 18 | 1.4 | 1.6 | 20.5 | 1484 | 0.124 |
1×185 | 30 | 1.6 | 1.6 | 22.5 | 1847 | 0.0991 |
1×240 | 34 | 1.7 | 1.7 | 25.2 | 2385 | 0.0754 |
1×300 | 34 | 1.8 | 1.8 | 27.8 | 2970 | 0.0601 |
1×400 | 53 | 2.0 | 1.9 | 31.2 | 3803 | 0.0470 |
1×500 | 53 | 2.2 | 2.0 | 34.7 | 4801 | 0.0366 |
1×630 | 53 | 2.4 | 2.2 | 39.2 | 6196 | 0.0283 |
Application
Power system: power plants, substations, distribution rooms, factories, etc.
Construction projects: residential buildings, commercial buildings, industrial plants, etc.
Industrial enterprises: petrochemicals, metallurgy, mining, electronics, etc.
Transportation: subways, railways, tunnels, etc.
