VV32 type 0.6/1KV PVC Insulated Power Cable
Key words:
Classification:
Product Description
Low Voltage(0.6/1KV) Power Cable-VV32
VV32 power cable is a copper core PVC insulated, steel wire armored, PVC sheathed cable suitable for fixed installation in AC 50Hz, rated voltage 0.6/1kV power transmission and distribution systems. Its steel wire armor structure enables it to withstand mechanical external forces and is suitable for use in underground, tunnel, mine and other environments that require a certain amount of tension. The cable complies with the Chinese national standard GB/T 12706, and also meets the requirements of the international standard IEC 60502 and the British standard BS 6346, ensuring its safety and reliability in various applications.
Standard
IEC 60228 Conductors of Insulate Cables
IEC 60502-1 Power Cables with Extruded Insulation and Their accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1 kV (Um=1.2kV) and 3kV(Um=3.6kV)
Product advantages
Strong resistance to mechanical damage - The steel wire armor structure enhances the mechanical strength of the cable, can resist external damage, and is suitable for underground and harsh environments.
99.9% copper core conductor - using high conductivity oxygen-free copper to improve power transmission efficiency and reduce energy consumption.
Durable PVC insulation and sheath - with excellent heat resistance, corrosion resistance, and moisture resistance, extending the service life of the cable.
Adapt to a variety of laying methods - can be used in underground, tunnel, bridge, indoor and outdoor scenes, suitable for industrial and building power distribution systems.

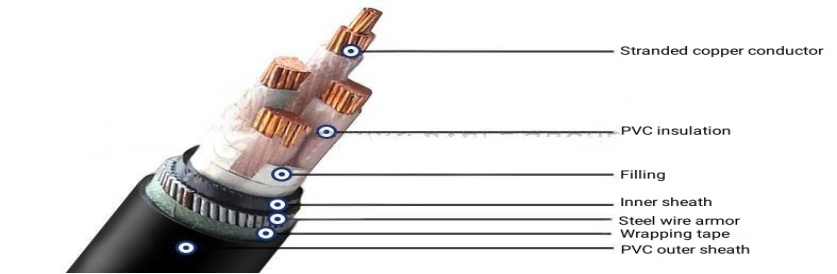

Construction
● Conductor: Copper, class 1 or class 2, solid or stranded, circular or circular compacted conductors
● Insulation: Polyvinyl chloride PVC
● Filler: Non-hygroscopic material
● Binder: Non-hygroscopic material
● Inner sheath: Polyvinyl chloride PVC
● Armour: Steel wire
● Binder :Non-hygroscopic material
● Outer sheath: Polyvinyl chloride PVC
No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal | Nominal | Approx. | Approx. weight | Max. D.C. Resistance of Conductor |
No. × mm² | No. | mm | mm | mm | mm | kg/km | Ω/km |
2×1.5 | 1 | 0.8 | 0.8 | 1.8 | 13.7 | 322 | 12.1 |
2×2.5 | 1 | 0.8 | 0.8 | 1.8 | 14.5 | 367 | 7.41 |
2×4 | 1 | 1.0 | 0.8 | 1.8 | 16.3 | 459 | 4.61 |
2×6 | 1 | 1.0 | 1.25 | 1.8 | 18.2 | 652 | 3.08 |
2×10 | 6 | 1.0 | 1.25 | 1.8 | 20.7 | 842 | 1.83 |
2×16 | 6 | 1.0 | 1.25 | 1.8 | 22.3 | 1025 | 1.15 |
2×25 | 6 | 1.2 | 1.6 | 1.8 | 26.2 | 1501 | 0.727 |
2×35 | 6 | 1.2 | 1.6 | 1.8 | 28.2 | 1791 | 0.524 |
3×1.5 | 1 | 0.8 | 0.8 | 1.8 | 14.2 | 357 | 12.1 |
3×2.5 | 1 | 0.8 | 0.8 | 1.8 | 15.1 | 411 | 7.41 |
3×4 | 1 | 1.0 | 0.8 | 1.8 | 16.9 | 528 | 4.61 |
3×6 | 1 | 1.0 | 1.25 | 1.8 | 18.9 | 750 | 3.08 |
3×10 | 6 | 1.0 | 1.25 | 1.8 | 21.7 | 991 | 1.83 |
3×16 | 6 | 1.0 | 1.25 | 1.8 | 23.4 | 1232 | 1.15 |
3×25 | 6 | 1.2 | 1.6 | 1.8 | 27.5 | 1801 | 0.727 |
3X35 | 6 | 1.2 | 1.6 | 1.8 | 29.7 | 2181 | 0.524 |
3×400 | 53 | 2.6 | 3.15 | 3.4 | 79.4 | 17564 | 0.0470 |
4×1.5 | 1 | 0.8 | 0.8 | 1.8 | 15.0 | 398 | 12.1 |
4×2.5 | 1 | 0.8 | 0.8 | 1.8 | 15.9 | 468 | 7.41 |
4×4 | 1 | 1.0 | 1.25 | 1.8 | 18.9 | 736 | 4.61 |
4×6 | 1 | 1.0 | 1.25 | 1.8 | 20.2 | 869 | 3.08 |
4×10 | 6 | 1.0 | 1.25 | 1.8 | 23.2 | 1157 | 1.83 |
4×16 | 6 | 1.0 | 1.6 | 1.8 | 25.9 | 1609 | 1.15 |
4×25 | 6 | 1.2 | 1.6 | 1.8 | 29.7 | 2162 | 0.727 |
4×35 | 6 | 1.2 | 1.6 | 1.9 | 32.3 | 2669 | 0.524 |
5×1.5 | 1 | 0.8 | 0.8 | 1.8 | 15.8 | 449 | 12.1 |
5×2.5 | 1 | 0.8 | 0.8 | 1.8 | 16.9 | 530 | 7.41 |
5×4 | 1 | 1.0 | 1.25 | 1.8 | 20.1 | 836 | 4.61 |
5×6 | 1 | 1.0 | 1.25 | 1.8 | 21.5 | 992 | 3.08 |
5×10 | 6 | 1.0 | 1.6 | 1.8 | 25.6 | 1490 | 1.83 |
5×16 | 6 | 1.0 | 1.6 | 1.8 | 27.8 | 1878 | 1.15 |
5×25 | 6 | 1.2 | 1.6 | 1.9 | 32.3 | 2563 | 0.727 |
5×35 | 6 | 1.2 | 2.0 | 2.0 | 36.7 | 3487 | 0.524 |
3×2.5+1×1.5 | 1/1 | 0.8/0.8 | 0.8 | 1.8 | 15.7 | 450 | 7.41/12.1 |
3×4+1×2.5 | 1/1 | 1.0/0.8 | 1.25 | 1.8 | 18.4 | 699 | 4.61/7.41 |
3×6+1×4 | 1/1 | 1.0/1.0 | 1.25 | 1.8 | 19.9 | 833 | 3.08/4.61 |
3×10+1×6 | 6/1 | 1.0/1.0 | 1.25 | 1.8 | 22.5 | 1092 | 1.83/3.08 |
3×16+1×10 | 6/6 | 1.0/1.0 | 1.6 | 1.8 | 25.4 | 1527 | 1.15/1.83 |
3×25+1×16 | 6/6 | 1.2/1.0 | 1.6 | 1.8 | 28.8 | 2034 | 0.727/1.15 |
4×2.5+1×1.5 | 1/1 | 0.8/0.8 | 0.8 | 1.8 | 16.7 | 513 | 7.41/12.1 |
4×4+1×2.5 | 1/1 | 1.0/0.8 | 1.25 | 1.8 | 19.7 | 799 | 4.61/7.41 |
4×6+1×4 | 1/1 | 1.0/1.0 | 1.25 | 1.8 | 21.2 | 966 | 3.08/4.61 |
4×10+1×6 | 6/1 | 1.0/1.0 | 1.6 | 1.8 | 24.9 | 1403 | 1.83/3.08 |
4×16+1×10 | 6/6 | 1.0/1.0 | 1.6 | 1.8 | 27.3 | 1797 | 1.15/1.83 |
4×25+1×16 | 6/6 | 1.2/1.0 | 1.6 | 1.9 | 31.4 | 2420 | 0.727/1.15 |
Application areas
Intelligent building system: used for low-voltage power supply of residential, office and commercial facilities to ensure stable operation of intelligent control systems.
Industrial automation: supports efficient equipment linkage and data transmission to meet the dual requirements of industrial sites for power quality and safety.
Public infrastructure: suitable for public facilities such as bridges, roads and municipal engineering to ensure long-term power supply safety.
Special control system: provides stable power supply for security monitoring and emergency systems to ensure reliability at critical moments.
