VV22 type 0.6/1KV PVC Insulated Power Cable

PVC Insulated PVC Sheathed Power Cable is a high-performance power cable designed to provide safe and reliable power transmission in a variety of environments.

WhatsApp:

Product Description

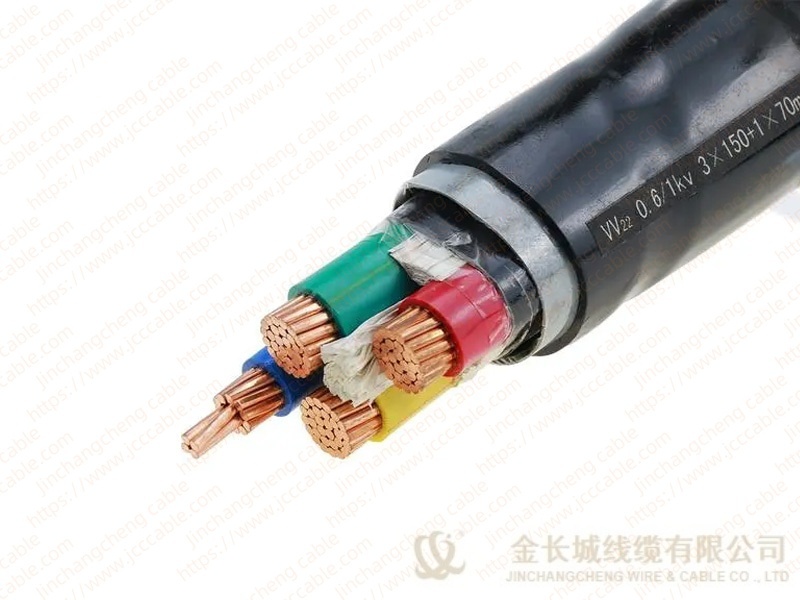

                                                                                                Low Voltage(0.6/1KV) Power Cable-VV22

Copper Core PVC Insulated Steel Tape Armored PVC Sheathed Power Cable is a high-performance power cable designed for reliable and secure power transmission in demanding environments. Featuring a copper core, this cable offers superior electrical conductivity, making it ideal for heavy-duty applications and long-distance power transmission.



Standard
IEC 60228 Conductors of Insulate Cables
IEC 60502-1 Power Cables with Extruded Insulation and Their accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1 kV (Um=1.2kV) and 3kV(Um=3.6kV)

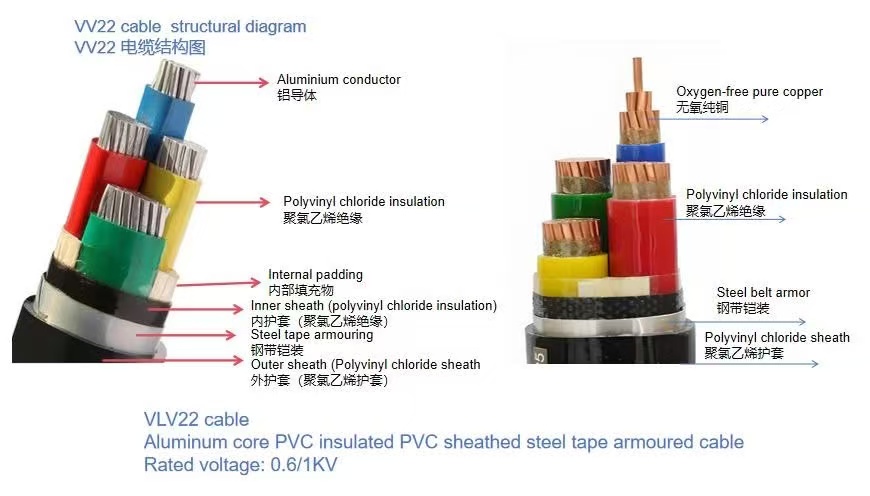

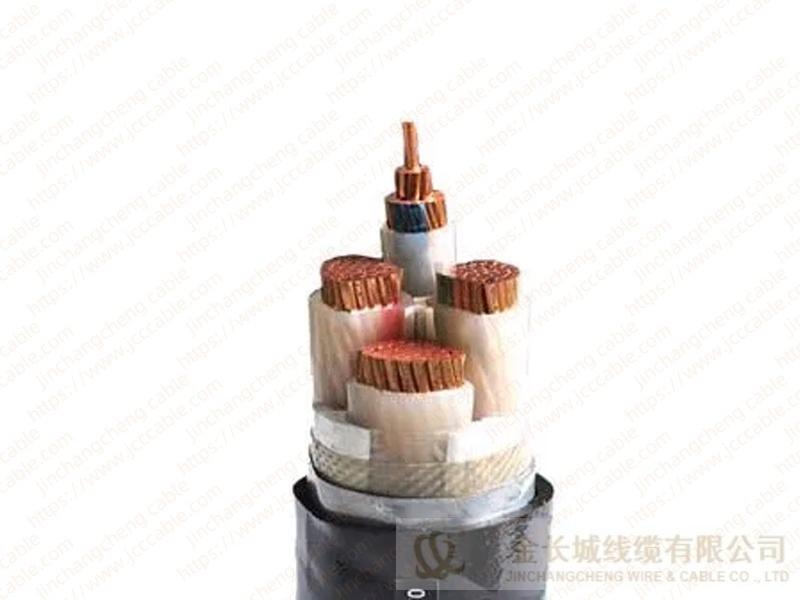

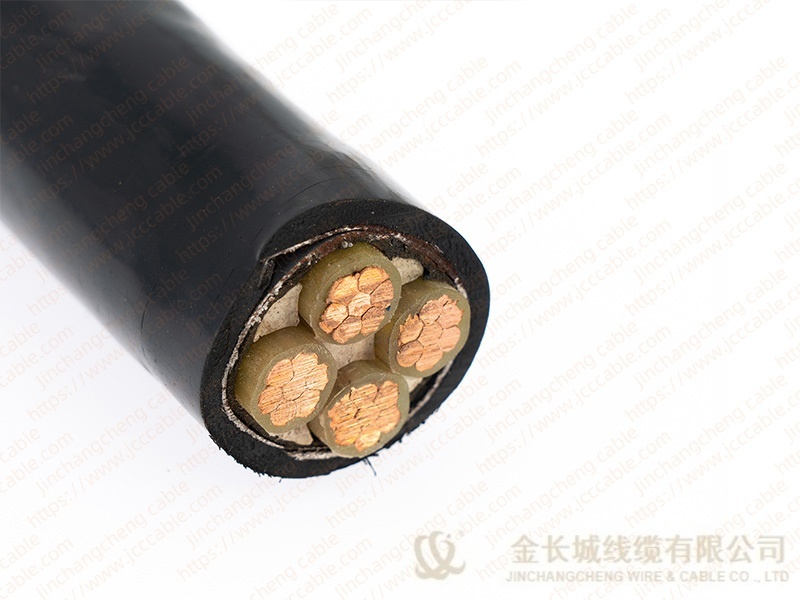

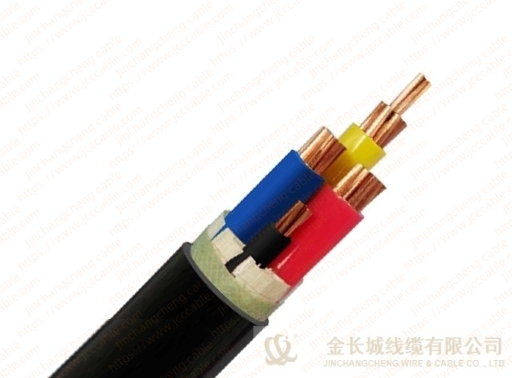

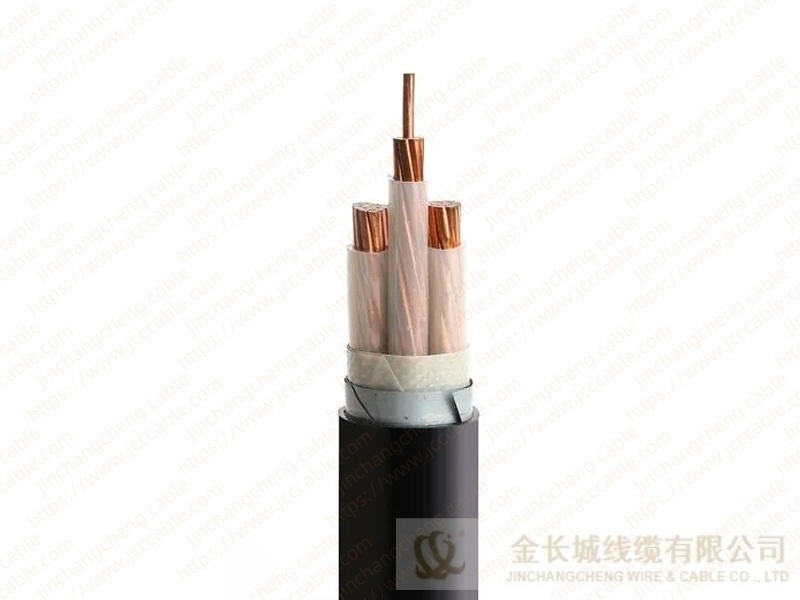

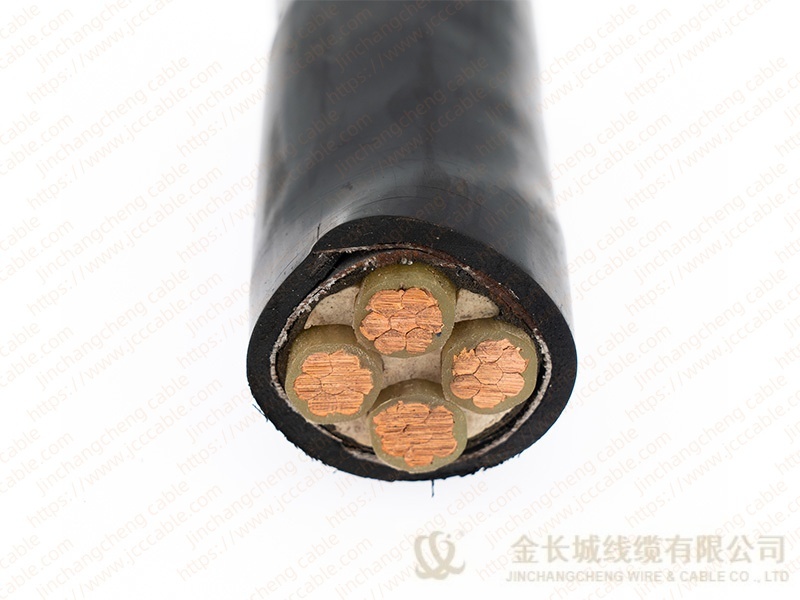

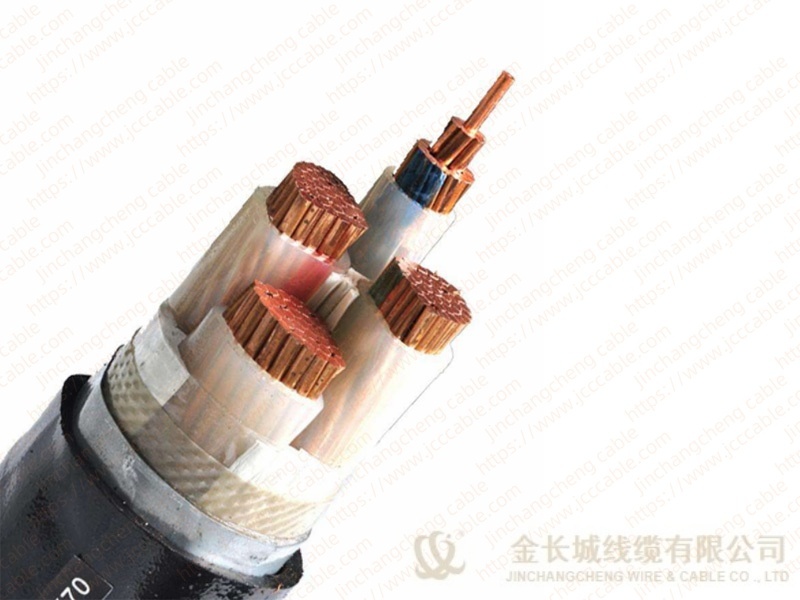

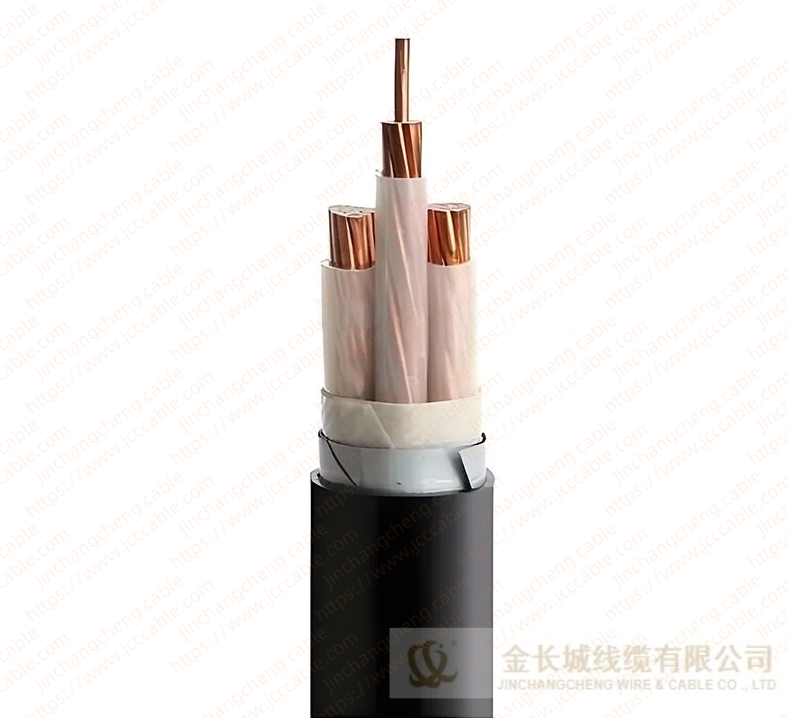

Construction
● Conductor: Copper, class 1 or class 2, solid or stranded, circular or circular compacted conductors
● Insulation: Polyvinyl chloride PVC
● Filler: Non-hygroscopic material
● Binder: Non-hygroscopic material
● Inner sheath: Polyvinyl chloride PVC
● Armour: Steel tape
● Outer sheath: Polyvinyl chloride PVC

Advantage:

Enhanced durability: Steel tape armor extends the life of the cable and protects against external mechanical damage, making it an excellent performer in demanding environments.

High safety standards: Flame retardant properties and high-quality insulation reduce electrical failures and fire hazards.

Low maintenance costs: Rugged PVC jacket and armor reduce the need for frequent maintenance, reducing long-term operating costs.

Versatile installation: Suitable for indoor and outdoor installations, including direct underground burial or installation in cable troughs and trays.



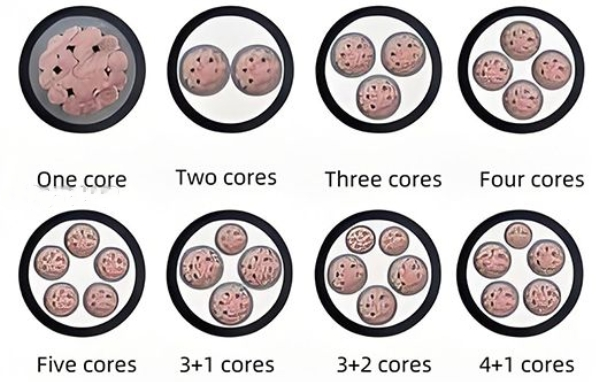

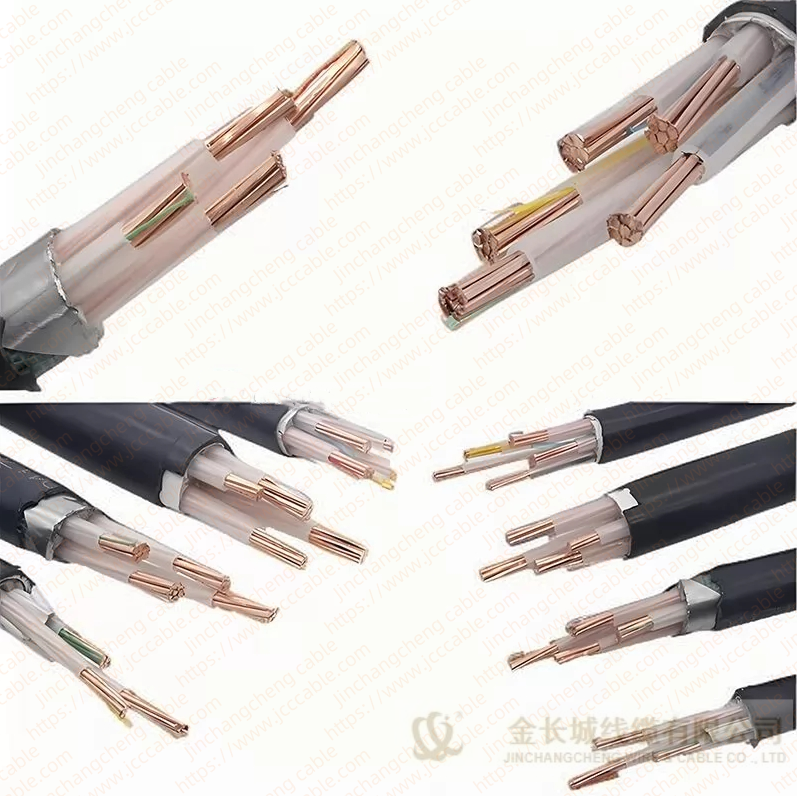

Product structure and parameter













                        IEC 60502-1

No. of Cores and Nominal Cross Section

Min. Number of Wires

Nominal Insulation Thickness

Nominal
Steel Tape Thickness

Nominal
Sheath Thickness

Approx.
Overall Diameter

Approx. Weight

Max. D.C .Resistance of Conductor
at 20℃

No.× mm²

No.

mm

mm

mm

mm

kg/km

Ω/km

2×1.5

1

0.8

0.2

1.8

12.6

236

12.1

2×2.5

1

0.8

0.2

1.8

13.4

274

7.41

2×4

1

1.0

0.2

1.8

15.2

354

4.61

2×6

1

1.0

0.2

1.8

16.2

419

3.08

2×10

6

1.0

0.2

1.8

18.7

566

1.83

2×16

6

1.0

0.2

1.8

20.3

721

1.15

2×25

6

1.2

0.2

1.8

23.5

991

0.727

2×35

6

1.2

0.2

1.8

25.5

1229

0.524

2×50

6

1.4

0.2

1.8

28.9

1580

0.387

3×1.5

1

0.8

0.2

1.8

13.1

266

12.1

3×2.5

1

0.8

0.2

1.8

14.0

314

7.41

3×4

1

1.0

0.2

1.8

15.8

415

4.61

3×6

1

1.0

0.2

1.8

16.9

502

3.08

3×10

6

1.0

0.2

1.8

19.7

692

1.83

3×16

6

1.0

0.2

1.8

21.4

905

1.15

3×25

6

1.2

0.2

1.8

24.8

1267

0.727

3X35

6

1.2

0.2

1.8

27.0

1597

0.524

4×1.5

1

0.8

0.2

1.8

13.9

304

12.1

4×2.5

1

0.8

0.2

1.8

14.8

364

7.41

4×4

1

1.0

0.2

1.8

16.9

489

4.61

4×6

1

1.0

0.2

1.8

18.2

600

3.08

4×10

6

1.0

0.2

1.8

21.2

839

1.83

4×16

6

1.0

0.2

1.8

23.2

1113

1.15

4×25

6

1.2

0.2

1.8

27.0

1578

0.727

4×35

6

1.2

0.2

1.9

29.6

2019

0.524

5×1.5

1

0.8

0.2

1.8

14.7

344

12.1

5×2.5

1

0.8

0.2

1.8

15.8

417

7.41

5×4

1

1.0

0.2

1.8

18.1

567

4.61

5×6

1

1.0

0.2

1.8

19.5

702

3.08

5×10

6

1.0

0.2

1.8

22.9

992

1.83

5×16

6

1.0

0.2

1.8

25.1

1330

1.15

5×25

6

1.2

0.2

1.9

29.6

1913

0.727

5×35

6

1.2

0.2

1.9

33.0

2489

0.524

3×2.5+1×1.5

1/1

0.8/0.8

0.2

1.8

14.6

349

7.41/12.1

3×4+1×2.5

1/1

1.0/0.8

0.2

1.8

16.4

457

4.61/7.41

3×6+1×4

1/1

1.0/1.0

0.2

1.8

17.9

572

3.08/4.61

3×10+1×6

6/1

1.0/1.0

0.2

1.8

20.5

778

1.83/3.08

3×16+1×10

6/6

1.0/1.0

0.2

1.8

22.7

1044

1.15/1.83

3×25+1×16

6/6

1.2/1.0

0.2

1.8

26.1

1459

0.727/1.15

3×35+1×16

6/6

1.2/1.0

0.2

1.8

27.9

1778

0.524/1.15

3×50+1×25

6/6

1.4/1.2

0.2

1.9

32.8

2416

0.387/0.727

3×2.5+2×1.5

1/1

0.8/0.8

0.2

1.8

15.3

388

7.41/12.1

3×4+2×2.5

1/1

1.0/0.8

0.2

1.8

17.2

506

4.61/7.41

3×6+2×4

1/1

1.0/1.0

0.2

1.8

18.9

647

3.08/4.61

3×10+2×6

6/1

1.0/1.0

0.2

1.8

21.5

875

1.83/3.08

3×16+2×10

6/6

1.0/1.0

0.2

1.8

24.2

1194

1.15/1.83

3×25+2×16

6/6

1.2/1.0

0.2

1.8

27.7

1668

0.727/1.15

3×35+2×16

6/6

1.2/1.0

0.2

1.9

29.5

1994

0.524/1.15

3×50+2×25

6/6

1.4/1.2

0.2

2.0

34.9

2743

0.387/0.727

4×2.5+1×1.5

1/1

0.8/0.8

0.2

1.8

15.6

402

7.41/12.1

4×4+1×2.5

1/1

1.0/0.8

0.2

1.8

17.7

536

4.61/7.41

4×6+1×4

1/1

1.0/1.0

0.2

1.8

19.2

674

3.08/4.61

4×10+1×6

6/1

1.0/1.0

0.2

1.8

22.2

933

1.83/3.08

4×16+1×10

6/6

1.0/1.0

0.2

1.8

24.6

1262

1.15/1.83

4×25+1×16

6/6

1.2/1.0

0.2

1.8

28.5

1783

0.727/1.15

4×35+1×16

6/6

1.2/1.0

0.2

1.9

30.9

2217

0.524/1.15



Application
These power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be laying indoor, tunnel and underground. Able to bear external mechanical force, but unable to bear large pulling force.
