VV type 0.6/1KV PVC Insulated Power Cable
Key words:
Classification:
Product Description
0.6/1KV VV PVC insulated sheathed power cable is a low voltage power transmission cable , using PVC material as insulation and sheath, with good heat resistance, corrosion resistance and aging resistance. It is widely used in power transmission systems in construction, power, industry and civil facilities, suitable for indoor and outdoor fixed laying or buried installation, meeting 0.6/1KV voltage level requirements, and is mainly used for the connection of power systems and equipment.
Construction
● Conductor: Copper, class 1 or class 2, solid or stranded, circular or circular compacted conductors
● Insulation: Polyvinyl chloride PVC
● Outer sheath: Polyvinyl chloride PVC
Advantage:
Energy-efficient: Copper's high conductivity ensures efficient power transmission and reduces energy loss.
Durable and long-lasting: PVC insulation and jacket provide wear resistance and durability, ensuring the long service life of the cable in harsh environments.
Safe and reliable: Meets strict international safety standards to ensure safety when used in residential and industrial areas.
Versatile: Suitable for a variety of power distribution needs from small-scale installations to heavy industrial applications.
Low smoke and halogen-free: It produces less smoke and no harmful gases during combustion, which meets environmental protection requirements.
Specification
IEC 60228 Conductors of Insulate Cables
IEC 60502-1 Power Cables with Extruded Insulation and Their accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1 kV (Um=1.2kV) and 3kV(Um=3.6kV)

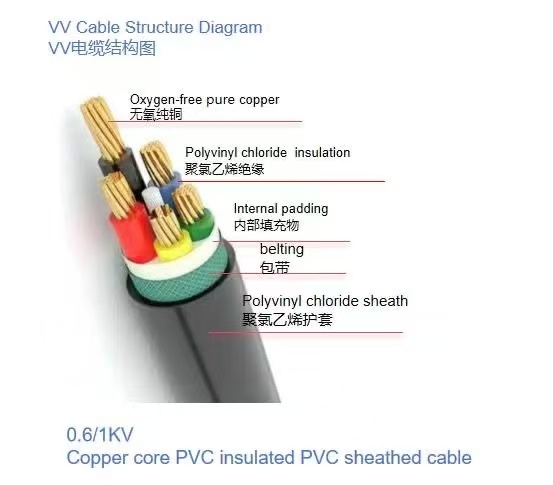

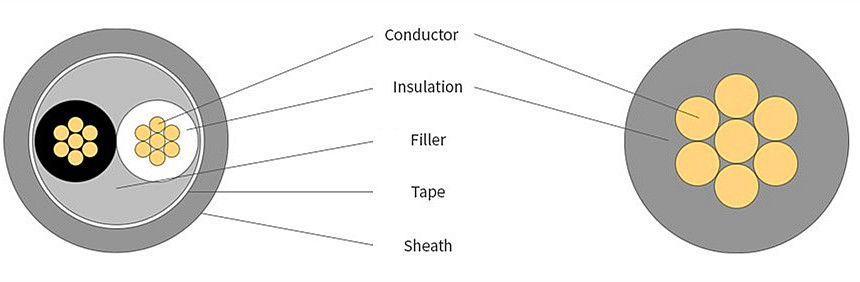

Construction
– Conductor : Annealed copper wire for electrical use (circular copper wire, circular compressed copper wire)
– Insulator : Polyvinyl Chloride (PVC)
– Inclusion
– Binder tape
– Wire identification : coloration
– Sheath : Polyvinyl Chloride (PVC)
No. of Cores and Nominal Cross Section | Min. Number of Wires | Nominal Insulation Thickness | Nominal | Approx. | Approx. Weight | Max. D.C .Resistance of Conductor |
No. × mm² | No. | mm | mm | mm | kg/km | Ω/km |
1×1.5 | 1 | 0.8 | 1.4 | 5.8 | 49 | 12.1 |
1×2.5 | 1 | 0.8 | 1.4 | 6.2 | 61 | 7.41 |
1×4 | 1 | 1.0 | 1.4 | 7.0 | 85 | 4.61 |
1×6 | 1 | 1.0 | 1.4 | 7.5 | 108 | 3.08 |
1×10 | 6 | 1.0 | 1.4 | 8.8 | 157 | 1.83 |
1×16 | 6 | 1.0 | 1.4 | 9.6 | 218 | 1.15 |
1×25 | 6 | 1.2 | 1.4 | 11.2 | 320 | 0.727 |
1×35 | 6 | 1.2 | 1.4 | 12.2 | 416 | 0.524 |
1×50 | 6 | 1.4 | 1.4 | 13.9 | 551 | 0.387 |
1×70 | 12 | 1.4 | 1.5 | 15.6 | 761 | 0.268 |
1×95 | 15 | 1.6 | 1.5 | 17.8 | 1030 | 0.193 |
1×120 | 18 | 1.6 | 1.6 | 19.4 | 1274 | 0.153 |
1×150 | 18 | 1.8 | 1.6 | 21.1 | 1554 | 0.124 |
1×185 | 30 | 2.0 | 1.7 | 23.4 | 1943 | 0.0991 |
1×240 | 34 | 2.2 | 1.8 | 26.3 | 2508 | 0.0754 |
1×300 | 34 | 2.4 | 1.9 | 29.1 | 3123 | 0.0601 |
1×400 | 53 | 2.6 | 2.0 | 32.4 | 3981 | 0.0470 |
1×500 | 53 | 2.8 | 2.1 | 36.1 | 5014 | 0.0366 |
1×630 | 53 | 2.8 | 2.2 | 40.0 | 6392 | 0.0283 |
Application
These power cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.
Product inquiry
We will contact you within one working day. Please pay attention to your email.

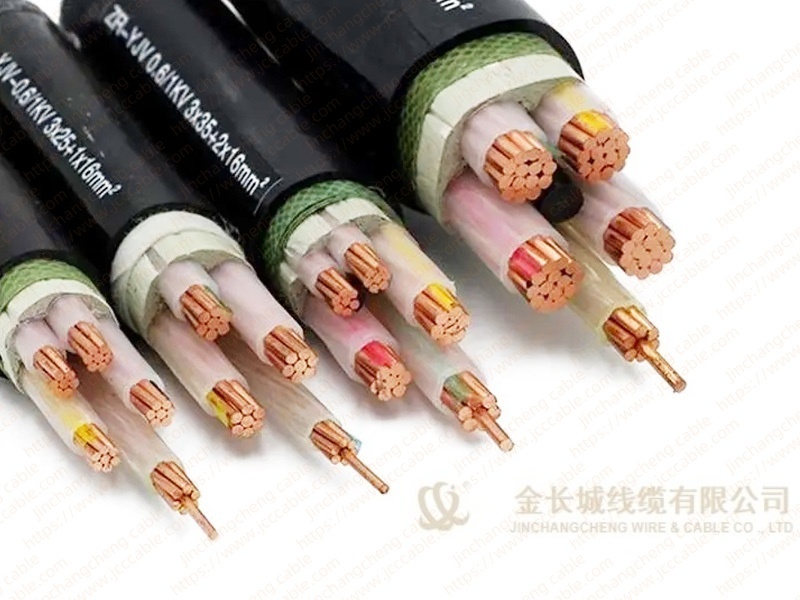

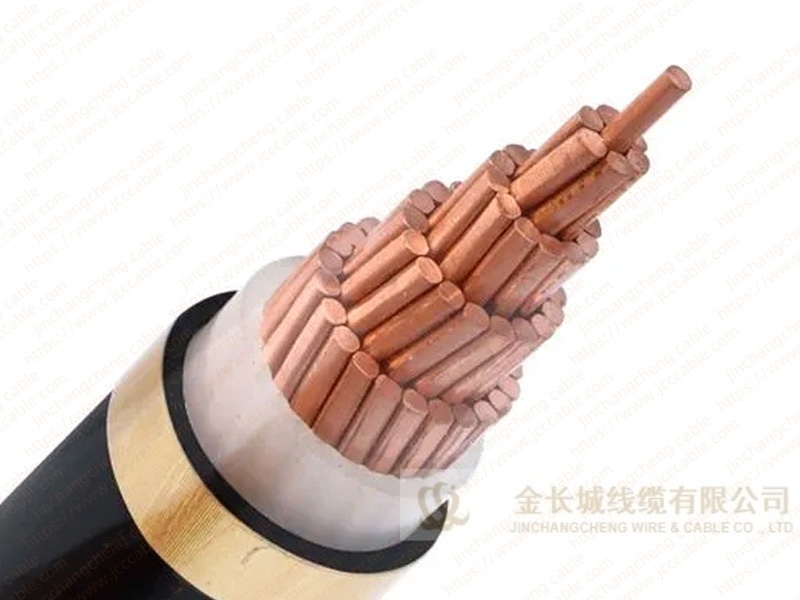

Related Products
