0.6/1KV overhead insulated conductor

Key words:

ACSR

Classification:

Overhead Insuiated Cable

Email：

jcccable@163.com

Inquiry

Product Description

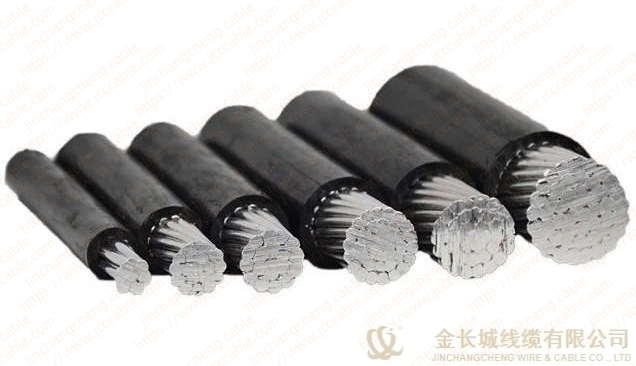

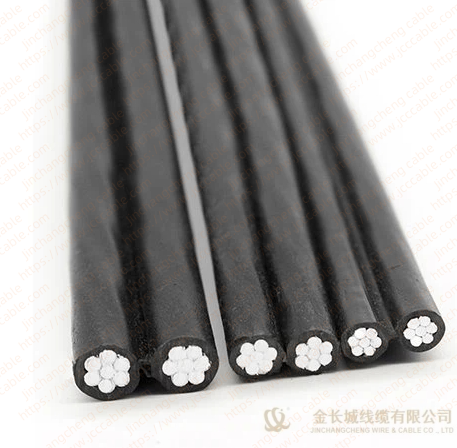

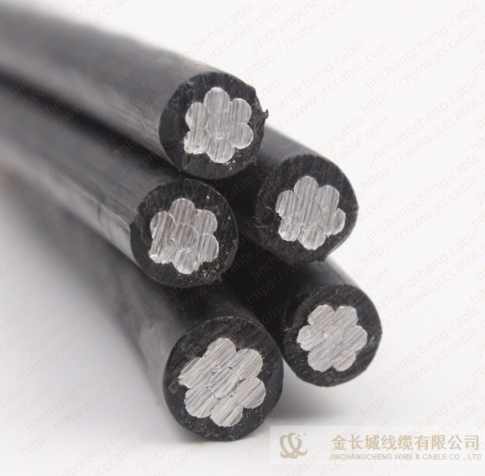

0.6/1KV XLPE insulated cable

Product implementation standards

The products are manufactured in accordance with GB/T 12527-2008(IEC60502-1),IEC 60228 overhead insulated cables with rated voltages of 1kV and below and corporate standards.

Product use

Weather-resistant high-density polyethylene and weather-resistant cross-linked polyethylene insulation, the cable is excellent and reliable, but also has excellent physical and mechanical properties and electrical properties, resistance to electric tracking, creeping discharge, and atmospheric resistance. The cable laying gap is small, saving line corridors, reducing power supply accidents, and ensuring personal safety. It is suitable for mountainous areas, forest areas, mining areas, cities and other occasions. It is an all-weather cable product.

Use characteristics

(1) Rated voltage: U is 1kV and below.

(2) Long-term allowable working temperature of product conductor

PVC insulation and polyethylene insulation should not exceed 70°C, and cross-linked polyethylene insulation should not exceed 90°C.

(3) The laying temperature of the cable should not be lower than -20℃.

(4) For cables with cable outer diameter (D) less than 25mm, the bending radius is not less than 4D.

Model	Name
JKYJ	Copper core XLPE insulated overhead cable
JKTRYJ	Soft copper core XLPE insulated overhead cable
JKLYJ	Aluminium conductor, XLPE insulated overhead cable

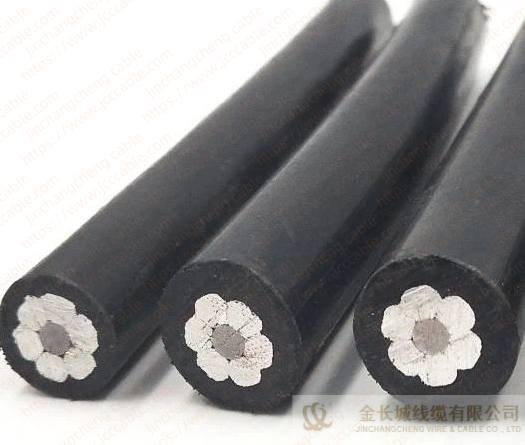

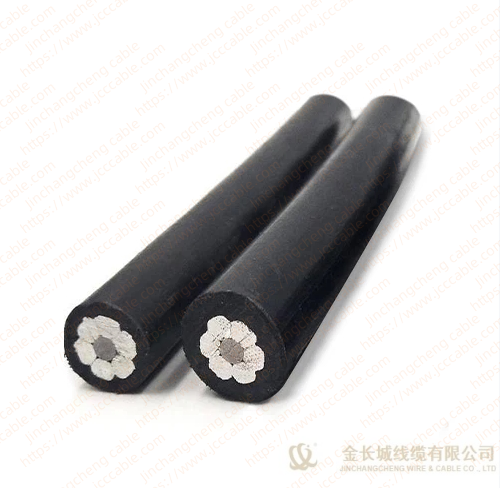

JKLGYJ	ACSR conductor XLPE insulated overhead cable
JKLHYJ	Aluminum alloy conductor XLPE insulated overhead cable
JKY	Copper core PE insulated overhead cable
JKTRY	Soft copper core PE insulated overhead cable
JKLY	The lead core PE insulated overhead cable
JKLGY	Steel core aluminum stranded conductor PE insulated aerial cable
JKLHY	Aluminum alloy conductor XLPE insulated overhead cable
JKLYJ/Q	Aluminum conductor light XLPE thinness insulated aerial cables
JKLHYJ/Q	Aluminum alloy conductor XLPE thinness insulated aerial cables
JKLGYJ/Q	ACSR conductor XLPE thinness insulated aerial cables
JKLY/Q	Aluminum conductor light XLPE thinness insulated aerial cables
JKLHY/Q	Molybdenum alloy conductor light XLPE thinness insulated aerial cables
JKLGY/Q	Steel core aluminum stranded conductor PE thinness insulated aerial cables

Type	Number of core	Nominal section (mm2)
JKV,JKLV,JKY,JKLY	1	6-240
JKYJ,JKLYJ	2-4	6-240
JKLV,JKLY,JKLYJ	3+K	6-240

Nominal Size	Min. No. of Wires	Approx. Diameter of Conductor	Nominal Thickness of Insulation	Max. Diameter of Cable	Max. DC Resistance at 20 0C		Breaking Load	Breaking Load
Nominal Size	Min. No. of Wires	Approx. Diameter of Conductor	Nominal Thickness of Insulation	Max. Diameter of Cable	AAC	AAAC	AAC	AAAC
mm²	No.	mm	mm	mm	Ω/km	Ω/km	N	N
10	6	3.8	1.0	6.5	3.08	3.574	1650	2514
16	6	4.8	1.2	8.0	1.91	2.217	2517	4022
25	6	6.0	1.2	9.4	1.2	1.393	3762	6284
35	6	7.0	1.4	11.0	0.868	1.007	5177	8800
50	6	8.4	1.4	12.3	0.641	0.744	7011	12569
70	12	10.0	1.4	14.1	0.443	0.514	10354	17596
95	15	11.6	1.6	16.5	0.32	0.371	13727	23880
120	15	13.0	1.6	18.1	0.253	0.294	17339	30164
150	15	14.6	1.8	20.2	0.206	0.239	21033	37706
185	30	16.2	2.0	22.5	0.164	0.190	26732	46503
240	30	18.4	2.2	25.6	0.125	0.145	34679	60329
300	30	20.8	2.2	27.2	0.1	0.116	43349	75411
400	53	23.2	2.2	30.7	0.0778	0.0904	55707	100548

Aerial Insulated Cables （Copper) IEC 60502-1 / GB/T 12527
Nominal Size	Min. No. of Wires	Approx. Diameter of Conductor	Nominal Thickness of Insulation	Max. Diameter of Cable	Max. DC Resistance at 20 0C		Breaking Load
Nominal Size	Min. No. of Wires	Approx. Diameter of Conductor	Nominal Thickness of Insulation	Max. Diameter of Cable	Hard Coppe	Annealedcopper	Hard Copper
mm²	No.	mm	mm	mm	Ω/km	Ω/km	N
10	6	3.8	1.0	6.5	1.906	1.83	3471
16	6	4.8	1.2	8.0	1.198	1.15	5486
25	6	6.0	1.2	9.4	0.749	0.727	8465
35	6	7.0	1.4	11.0	0.54	0.524	11731
50	6	8.4	1.4	12.3	0.399	0.387	16052
70	12	10.0	1.4	14.1	0.276	0.268	23461
95	15	11.6	1.6	16.5	0.199	0.193	31759
120	18	13.0	1.6	18.1	0.158	0.153	39911
150	18	14.6	1.8	20.2	0.128	0.124	49505
185	30	16.2	2.0	22.5	0.1021	0.0991	61846
240	34	18.4	2.2	25.6	0.0777	0.0754	79823

Application:

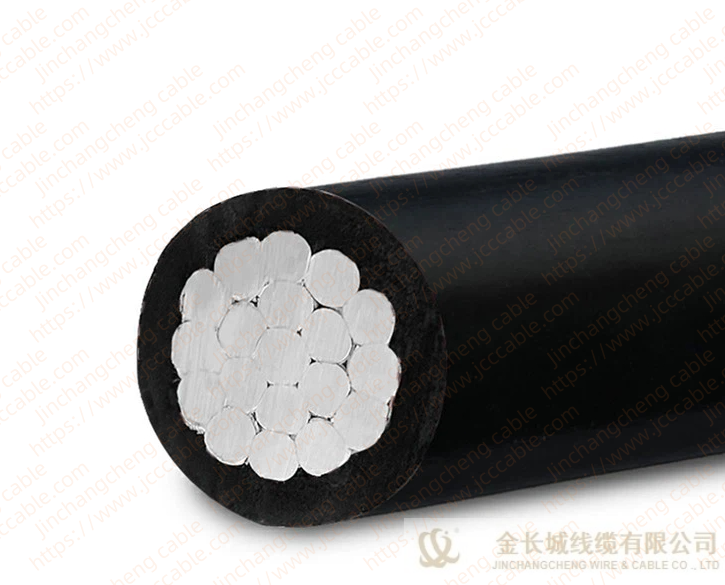

0.6/1KV single core XLPE covered aluminum cable is used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire net. It improves the safety and reliance of electrified wire net.

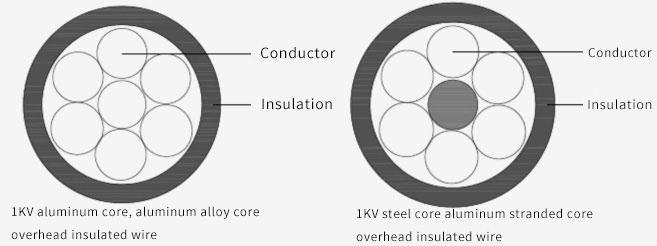

Below construction are also commonly used around the world.
