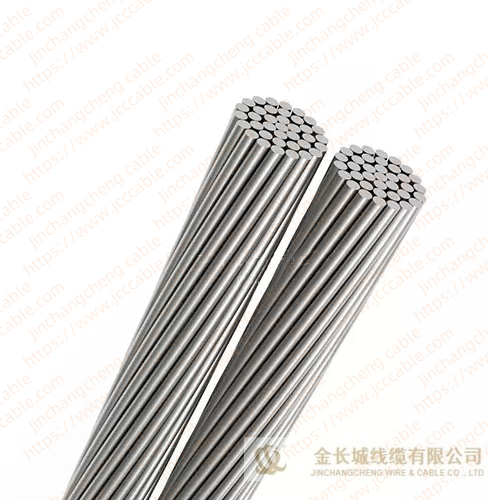

AAC-All Aluminum Stranded Conductor
Key words:
Classification:
Product Description

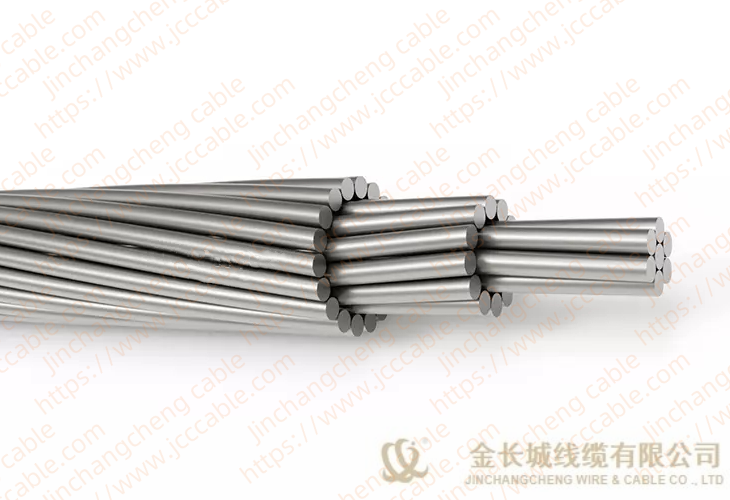

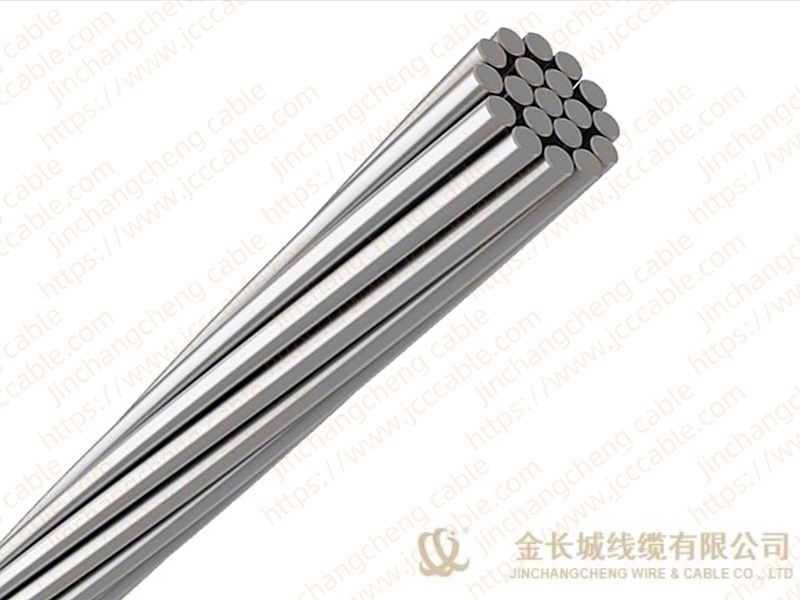

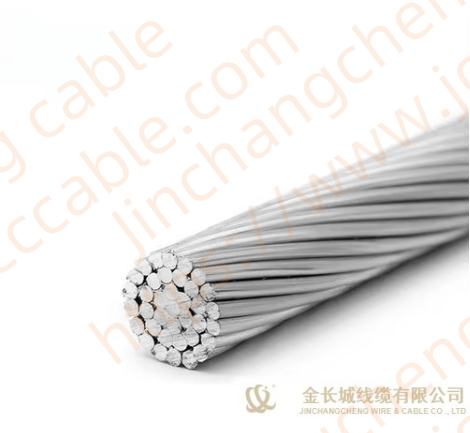

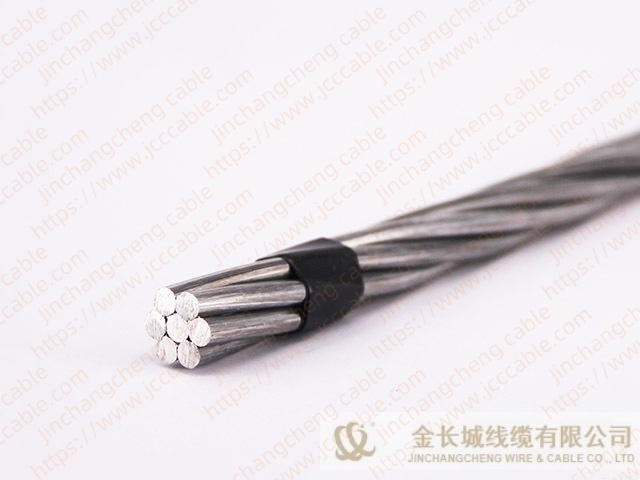

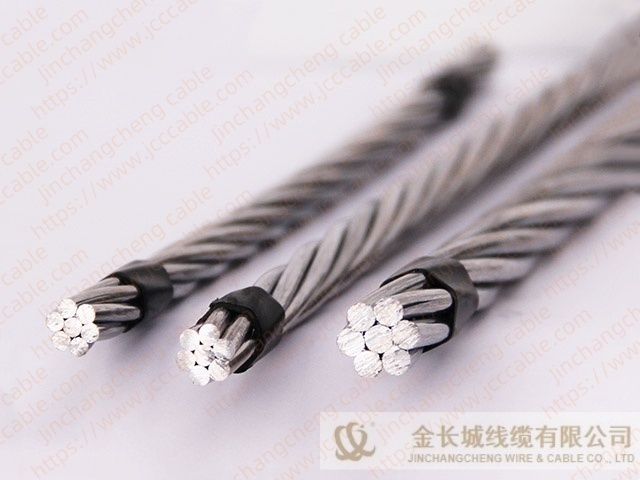

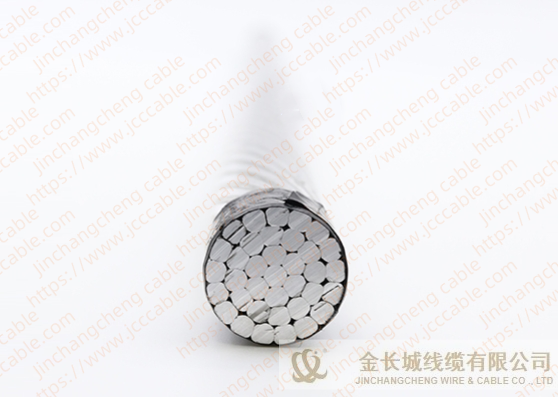

AAC-All Aluminum Conductor
AAC conductor is also known as aluminum stranded conductor which areusedinurbanareas where spans are usually short but high conductivity is required andareincommonuse on overhead lines for in low, medium and high voltage. The excellent corrosionresistance of aluminium has made AAC a conductor of choice in coastal areas.Althoughaluminium-to-copper connections can be made, it is better to use aluminiumconductorsfor service connections, as various forms of covered cable are availablefor thispurpose.
STANDARD :
IEC 61089 Standard All Aluminum Conductor AAC Standard 。IEC 61089: Round wire concentric lay overhead electrical stranded conductors.
CONSTRUCTION :

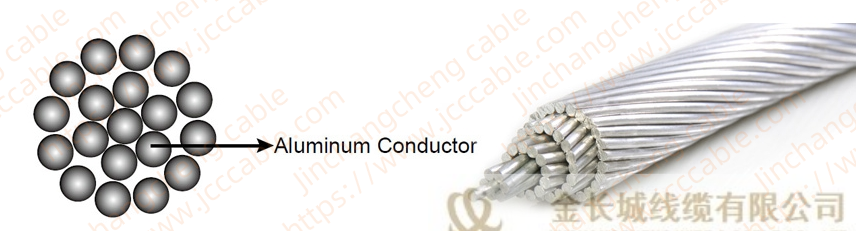

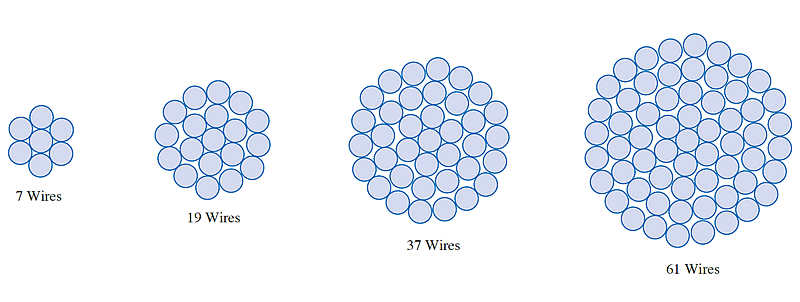

IEC 61089 Standard All Aluminum Conductor AAC Construction
Concentric lay stranded Aluminium Conductor ( AAC) is manufactured fromelectrolyticallyrefined aluminium with a minimum purity of 99.7%. and made up of oneor morestrandsof hard drawn 1350 aluminum alloy.
IEC 61089 Standard All Aluminum Conductor AAC Parameter
Code | Nominal | Stranding | Overall | Weight | Rated | Electrical | Current |
mm² | NO.×mm | mm | kg/km | kN | Ω/km | A | |
10 | 7/1.35 | 4.05 | 27.4 | 1.95 | 2.8633 | 62 | |
16 | 7/1.71 | 5.13 | 43.8 | 3.04 | 1.7896 | 84 | |
25 | 7/2.13 | 6.39 | 68.4 | 4.5 | 1.1453 | 110 | |
40 | 7/2.70 | 8.1 | 109.4 | 6.8 | 0.7158 | 147 | |
63 | 7/3.39 | 10.17 | 172.3 | 10.39 | 0.4545 | 195 | |
100 | 19/2.59 | 12.95 | 274.8 | 17 | 0.2877 | 259 | |
125 | 19/2.89 | 14.45 | 343.6 | 21.25 | 0.2302 | 297 | |
160 | 19/3.27 | 16.35 | 439.8 | 26.4 | 0.1798 | 345 | |
200 | 19/3.66 | 18.3 | 549.7 | 32 | 0.1439 | 396 | |
250 | 19/4.09 | 20.45 | 687.1 | 40 | 0.1151 | 454 | |
315 | 37/3.29 | 23.03 | 867.9 | 51.97 | 0.0916 | 522 | |
400 | 37/3.71 | 25.97 | 1102 | 64 | 0.0721 | 603 | |
450 | 37/3.94 | 27.58 | 1239.8 | 72 | 0.0641 | 647 | |
500 | 37/4.15 | 29.05 | 1377.6 | 80 | 0.0577 | 688 | |
560 | 37/4.39 | 30.73 | 1542.9 | 89.6 | 0.0515 | 736 | |
630 | 61/3.63 | 32.67 | 1738.3 | 100.8 | 0.0458 | 789 | |
710 | 61/3.85 | 34.65 | 1959.1 | 113.6 | 0.0407 | 845 | |
800 | 61/4.09 | 36.81 | 2207.4 | 128 | 0.0361 | 905 | |
900 | 61/4.33 | 38.97 | 2483.3 | 144 | 0.0321 | 967 | |
1000 | 61/4.57 | 41.13 | 2759.2 | 160 | 0.0289 | 1026 | |
1120* | 1120 | 91/3.96 | 43.56 | 3093.5 | 179.2 | 0.0258 | 1091 |
1250* | 1250 | 91/4.18 | 45.98 | 3452.6 | 200 | 0.0231 | 1157 |
1400* | 1400 | 91/4.43 | 48.73 | 3866.9 | 224 | 0.0207 | 1226 |
1500* | 1500 | 91/4.58 | 50.38 | 4143.1 | 240 | 0.0193 | 1270 |
* The items marked with “*” are not in our current product range and the details are for information only.
(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.
