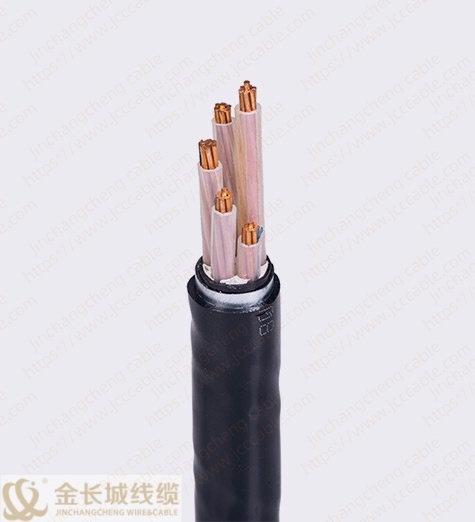

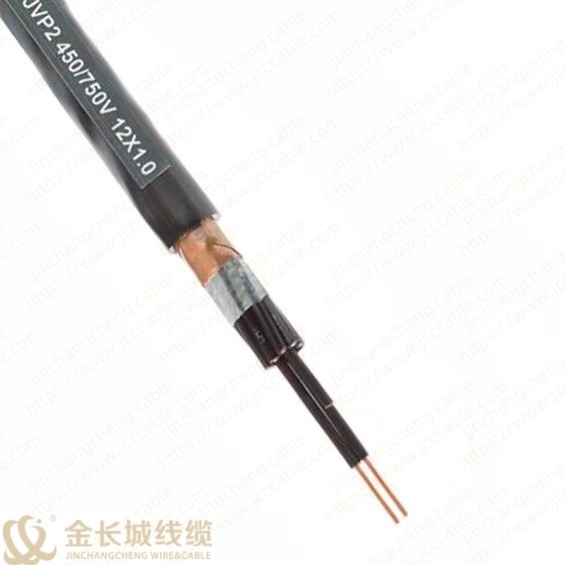

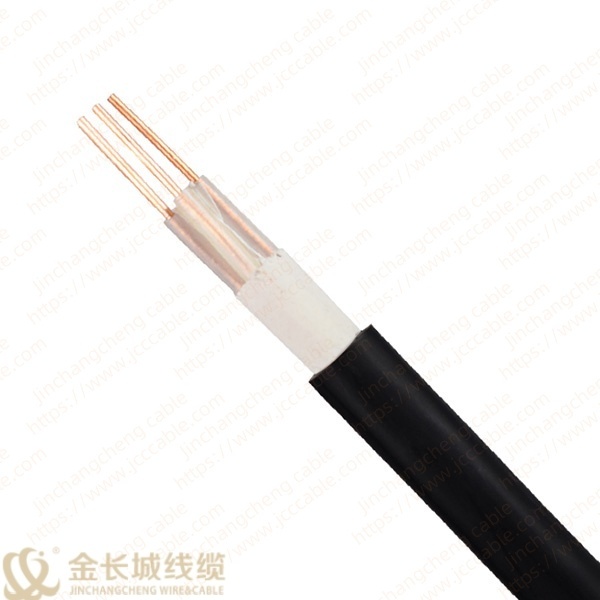

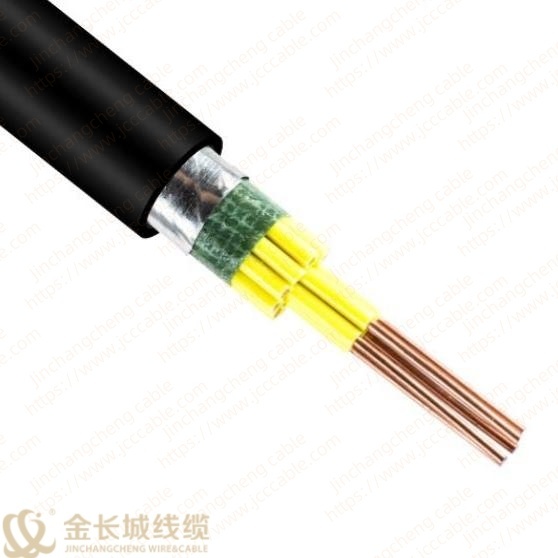

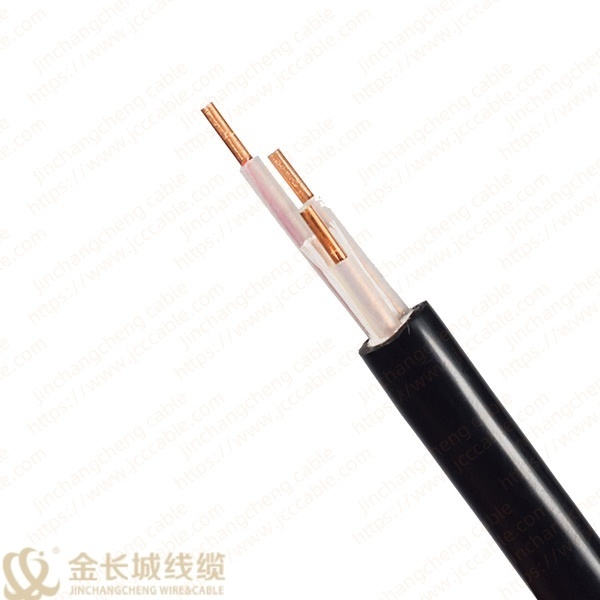

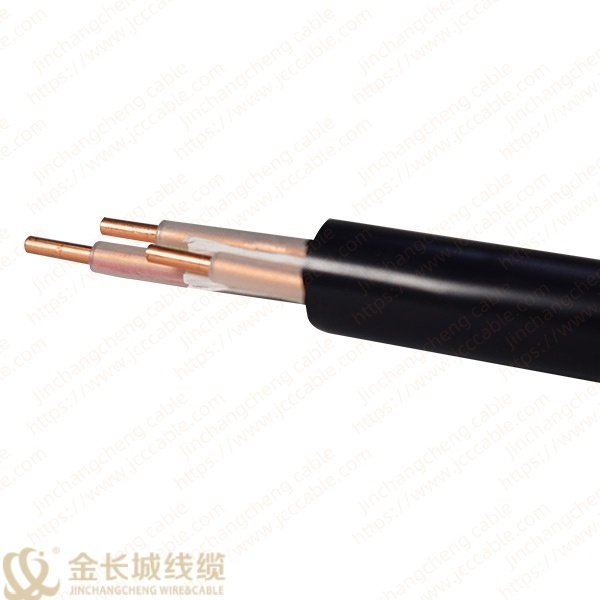

XLPE insulated control cable

Application
This product is applicable to AC rated voltage U0/U is the control cable for fixed laying in control, monitoring circuit and protection circuit of (U0/U) 0.6/1kV and below.

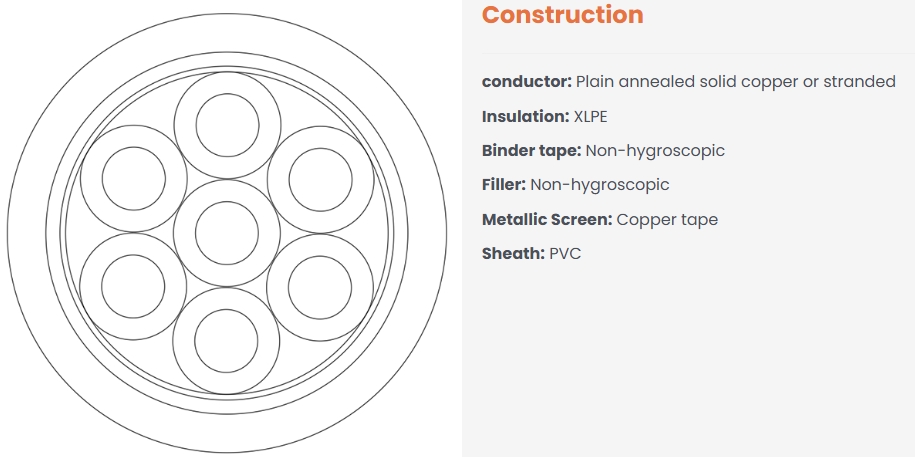

Construction
● Conductor: Copper, class 1, 2, solid, stranded round conductor
● Insulation: Cross-linked polyethylene XLPE
● Filler: Non-hygroscopic material
● Binder: Non-hygroscopic material
● Inner sheath: Polyvinyl chloride PVC
● Armour: Galvanized steel tape
● Outer sheath: Polyvinyl chloride PVC

Specification
IEC 60228 Conductors of Insulate Cables
IEC 60502-1 Power Cables with Extruded Insulation and Their Accessories for Rated Voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for Rated Voltages of 1kV (Um=1.2kV) and 3kV(Um=3.6kV)

Parameter:

Operating temperature	-20C up to + 90C( fixed installation)
Operating temperature	0C to +50C(during operation )
Minimum bending radius	5 x overall diameter
Conductor Area Size		mm	0.5	0.5	0.75	1	1.5
Conductor Stranding		No. x mm	1 x 0.8	16 x 0.2	24 x 0.2	1 x 1.13	7 x 0.53
Conductor resistance max		ohm/km	36.8	39.7	26.5	18.2	12.3
Insulation resistance min		Gohm/km	5	5	5	5	5
Capacitance unbalance at 1 kHz(pair to pair screen)		pF/250m	250
Max. Mutual Capacitance @ 1 kHz forNon OS or OS cables		pF/m	115	115	115	115	115
Max. Mutual Capacitance @ 1 kHz IS/OS cables		pF/m	75	75	75	75	75
Max. L/R Ratio for adjacent cores(Inductance/ Resistance)		H/ohm	25	25	25	25	40
Test voltage	Core to core	V	1000	1000	1000	1000	1000
Test voltage	Core to screen	V	1000	1000	1000	1000	1000
Rated voltage max		V	300/500	300/500	300/500	300/500	300/500

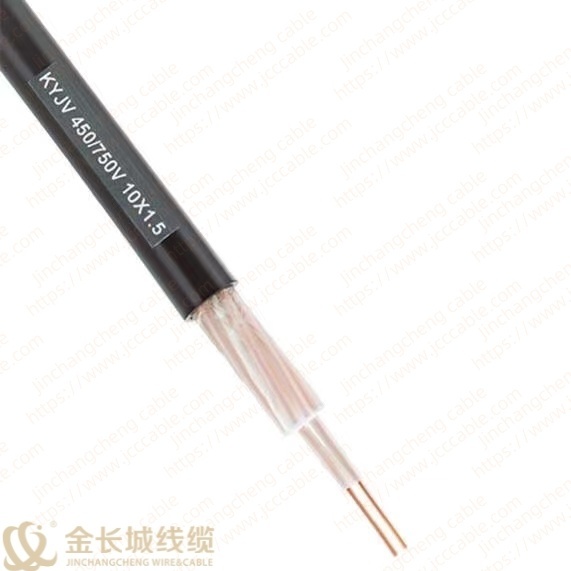

KYJV IEC60502-1

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
2×0.5	2	0.6	0.2	1.8	10.9	170	36.0
2×0.75	2	0.6	0.2	1.8	11.3	189	24.5
2×1	2	0.6	0.2	1.8	11.7	202	18.1
2×1.5	2	0.7	0.2	1.8	12.7	240	12.1
2×2.5	2	0.7	0.2	1.8	13.5	275	7.41
2×4	2	0.7	0.2	1.8	14.6	331	4.61
2×6	2	0.7	0.2	1.8	15.7	390	3.08
2×10	2	0.7	0.2	1.8	17.5	525	1.83
3×0.5	2	0.6	0.2	1.8	11.2	187	36.0
3×0.75	2	0.6	0.2	1.8	11.7	212	24.5
3×1	2	0.6	0.2	1.8	12.1	228	18.1
3×1.5	2	0.7	0.2	1.8	13.2	264	12.1
3×2.5	2	0.7	0.2	1.8	14.1	311	7.41
3×4	2	0.7	0.2	1.8	15.2	383	4.61
3×6	2	0.7	0.2	1.8	16.4	469	3.08
3×10	2	0.7	0.2	1.8	18.3	643	1.83

KYJVP2 IEC60502-1

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
2×0.5	2	0.6	0.05	1.8	8.3	81	36.0
2×0.75	2	0.6	0.05	1.8	8.7	96	24.5
2×1	2	0.6	0.05	1.8	9.0	106	18.1
2×1.5	2	0.7	0.05	1.8	10.0	133	12.1
2×2.5	2	0.7	0.05	1.8	10.9	160	7.41
2×4	2	0.7	0.05	1.8	12.0	205	4.61
2×6	2	0.7	0.05	1.8	13.0	252	3.08
2×10	2	0.7	0.05	1.8	14.8	369	1.83
3×0.5	2	0.6	0.05	1.8	8.6	95	36.0
3×0.75	2	0.6	0.05	1.8	9.0	115	24.5
3×1	2	0.6	0.05	1.8	9.4	128	18.1
3×1.5	2	0.7	0.05	1.8	10.5	153	12.1
3×2.5	2	0.7	0.05	1.8	11.4	190	7.41
3×4	2	0.7	0.05	1.8	12.6	251	4.61
3×6	2	0.7	0.05	1.8	13.7	324	3.08
3×10	2	0.7	0.05	1.8	15.7	478	1.83

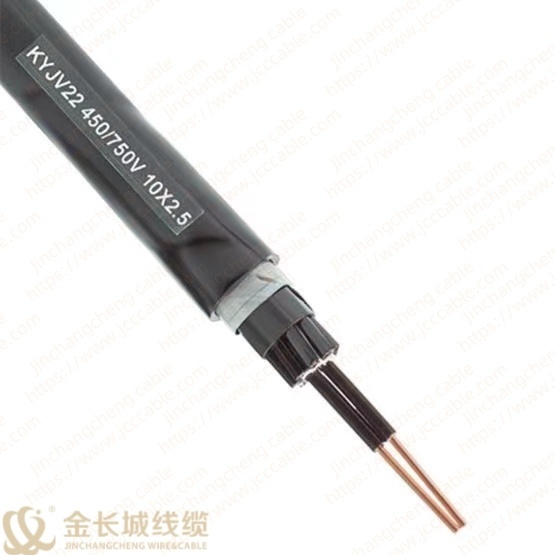

KYJV22 IEC60502-1

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal Copper Tape Thickness	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Max. D.C. Resistance of Conductor at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
2×0.5	2	0.6	0.2	1.8	10.9	170	36.0
2×0.75	2	0.6	0.2	1.8	11.3	189	24.5
2×1	2	0.6	0.2	1.8	11.7	202	18.1
2×1.5	2	0.7	0.2	1.8	12.7	240	12.1
2×2.5	2	0.7	0.2	1.8	13.5	275	7.41
2×4	2	0.7	0.2	1.8	14.6	331	4.61
2×6	2	0.7	0.2	1.8	15.7	390	3.08
2×10	2	0.7	0.2	1.8	17.5	525	1.83
3×0.5	2	0.6	0.2	1.8	11.2	187	36.0
3×0.75	2	0.6	0.2	1.8	11.7	212	24.5
3×1	2	0.6	0.2	1.8	12.1	228	18.1
3×1.5	2	0.7	0.2	1.8	13.2	264	12.1
3×2.5	2	0.7	0.2	1.8	14.1	311	7.41
3×4	2	0.7	0.2	1.8	15.2	383	4.61
3×6	2	0.7	0.2	1.8	16.4	469	3.08
3×10	2	0.7	0.2	1.8	18.3	643	1.83
