PVC Insulated Flexible Control Cable
Application:

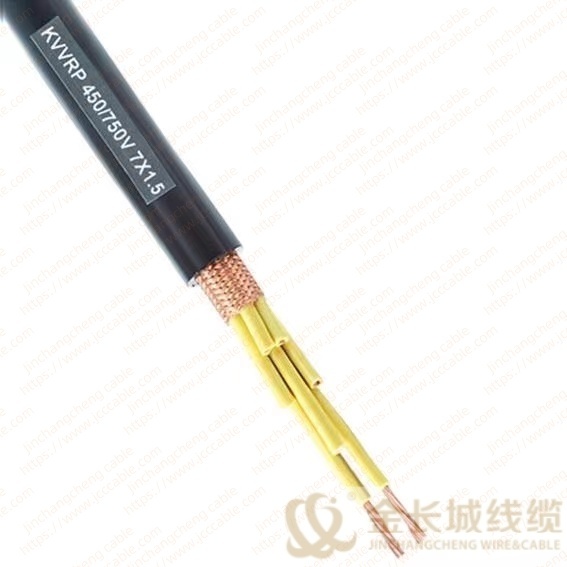

PVC insulated and PVC sheathed control cable, features flexible conductor and non-screen single core or multi -cores cables for power and signal transmission. PVC insulated and sheath control cable is widely used in engineering, plant installations, vehicle manufacturing, bottling plants and many other fields. It is used indoors in dry and moist situations. Provided protected from sunlight or some other mechanical damage, control cable could be used outdoor.
Applicable Standard:
GB/T9330-2020，IEC60502-1，BS EN 50525-2-11，VDE0250
Flame Retardant to IEC 60332-1 Vertical Flame Propagation Test
Type | Designation | Main applications |
KVV/KYJV | Copper conductor PVC/XLPE insulated PVC sheathed control cable | For fixed-laying indoors, in cable duct or conduit |
KVVP/KYJVP | Copper conductor XLPE/PVC insulated PVC sheathed braid screened control cable | For fixed-laying indoors, in cable duct or conduit upon screen requirement |
KVVP2/KYJVP2 | Copper conductor PVC/XLPE insulated PVC sheathed copper tape screened control cable | For fixed-laying indoors, in cable duct or conduit upon screen requirement |
KVV22/KYJV22 | Copper conductor PVC/XLPE insulated PVC sheathed steel tape armored control cable | For fixed-laying indoors, in cable duct direct-buried, able to bear larger mechanical forces |
KVV32/KYJV32 | Copper conductor PVC/XLPE insulated PVC sheathed fine steel wire armored control cable | For fixed-laying indoors, in cable duct, conduit or well, able to bear larger mechanical forces |
KVVR/KYJVR | Copper conductor PVC/XLPE insulated PVC sheathed control flexible cable | For laying indoors upon moveable requirement |
KVVRP/KYJVRP | Copper conductor PVC/XLPE insulated PVC sheathed braid screened control flexible cable | For laying indoors upon moveable and screen requirement |
Note:
1) Preferred number of cores: 2、3、4、5、7、8、10、12、14、16、19、24、27、30、37、44、48、52、61.
2)The special types of fire-retardant, flame-resisting, low-fume and low-halogen, low-fume and non-halogen as well as acid-alkali-proof for these cables may be supplied upon requests
Type | Rated voltage | Nominal cross-section of conductor（mm2） | |||||||
V | 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 | |
No. of cores |
| ||||||||
KVV/KYJV | 450/750 | | 2~61 | 2~14 | 2~10 | ||||
KVVP/KYJVP | |||||||||
KVVP2/KYJVP2 | | 4~61 | 4~14 | 4~10 | |||||
KVV22/KYJV22 | | 7~61 | 4~61 | 4~14 | 4~10 | ||||
KVV32/KYJV32 | | 19~61 | 7~61 | 4~14 | 4~10 | ||||
KVVR/KYJVR | 4~61 | | | ||||||
KVVRP/KYJVRP | 4~61 | 4~48 | | | |||||

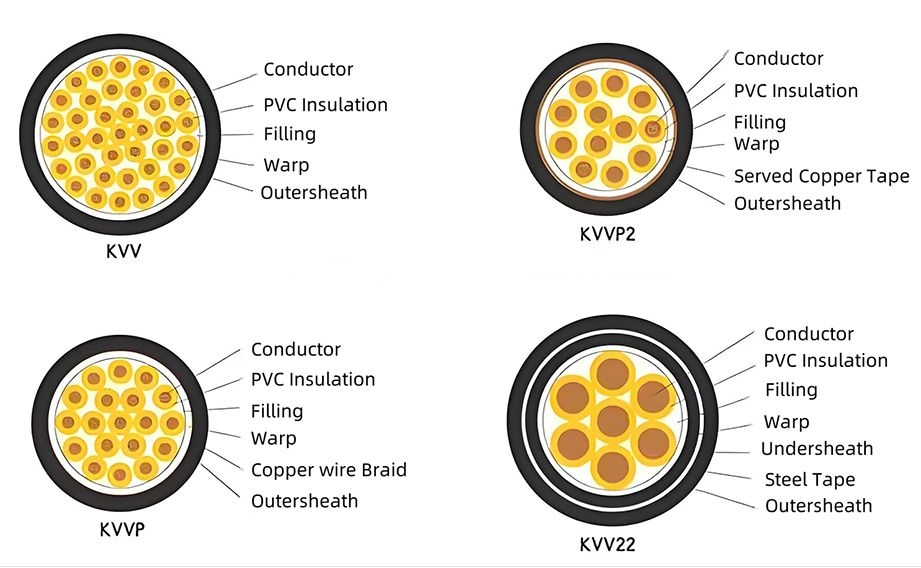

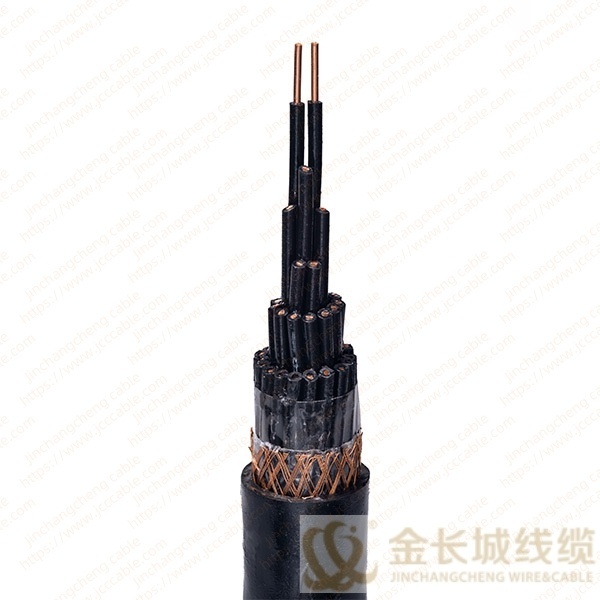

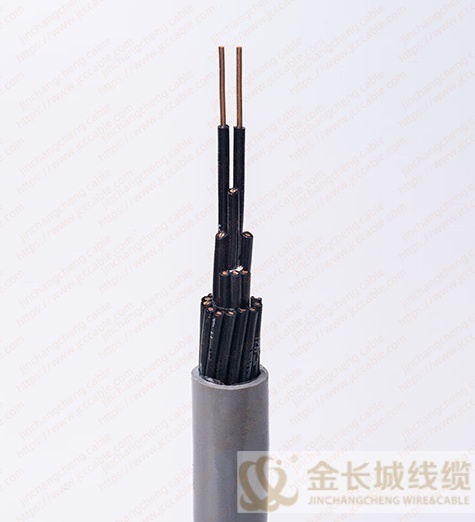

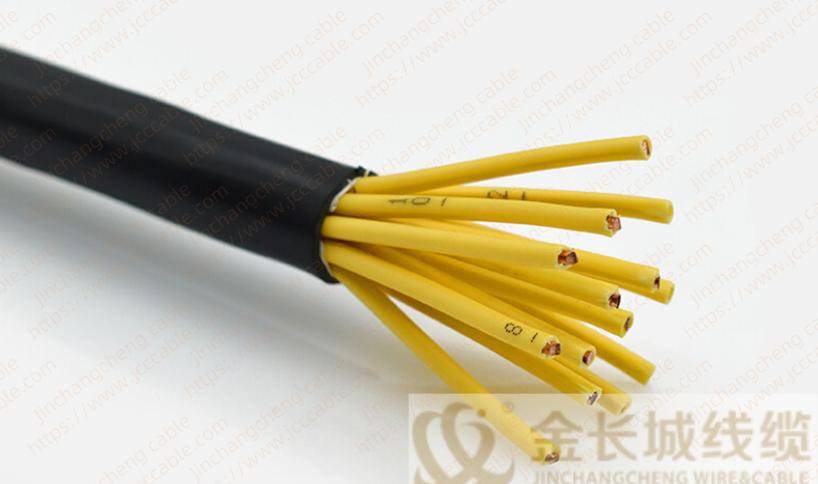

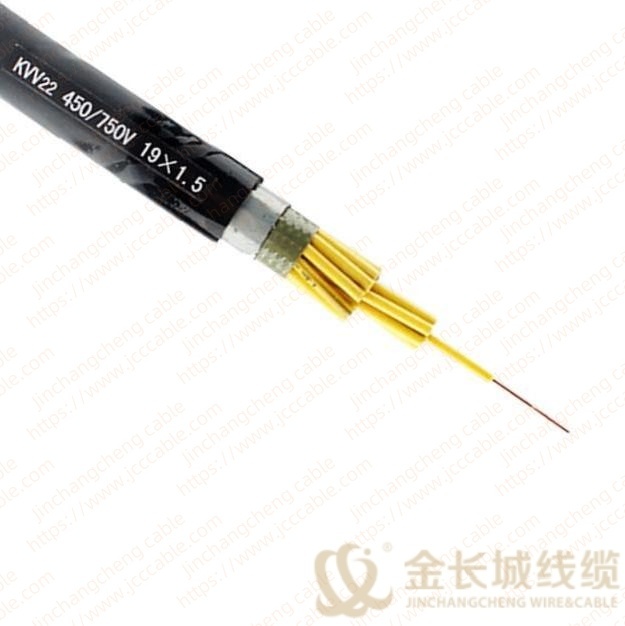

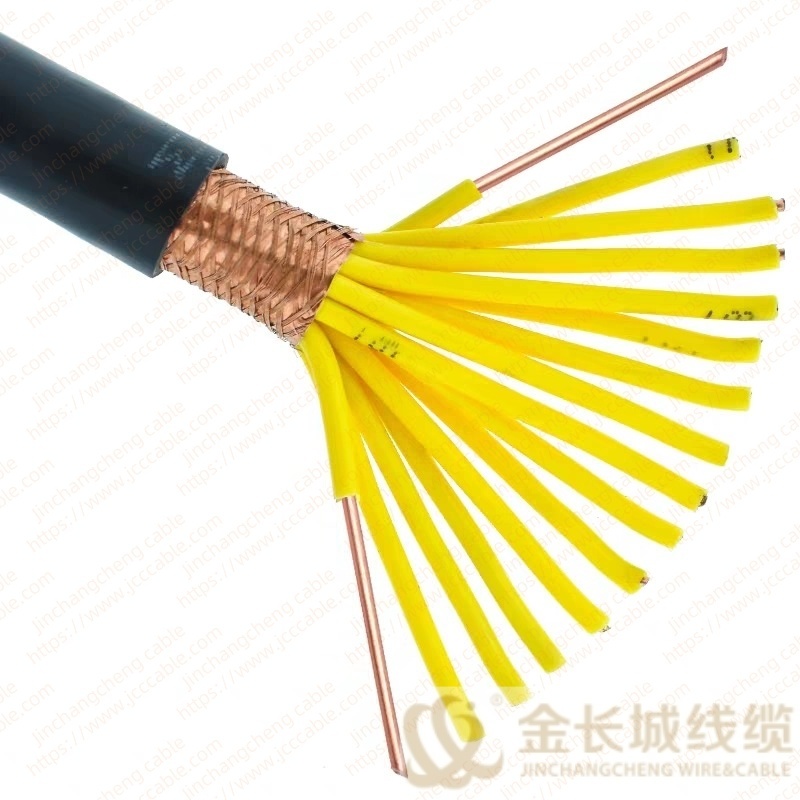

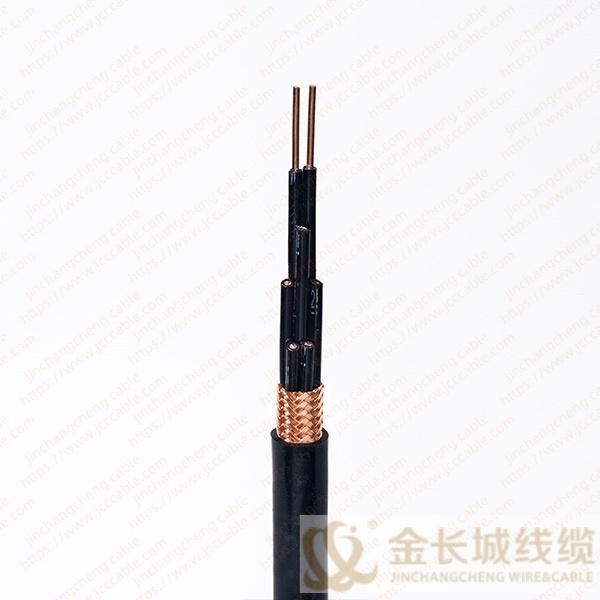

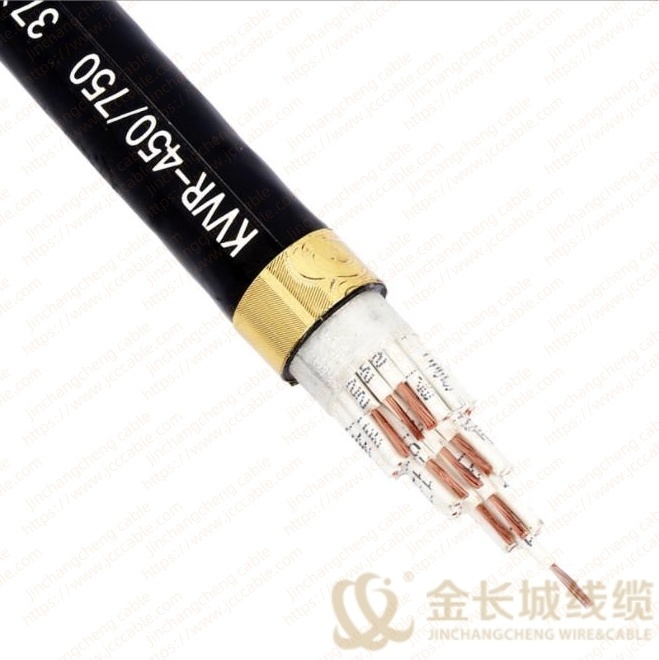

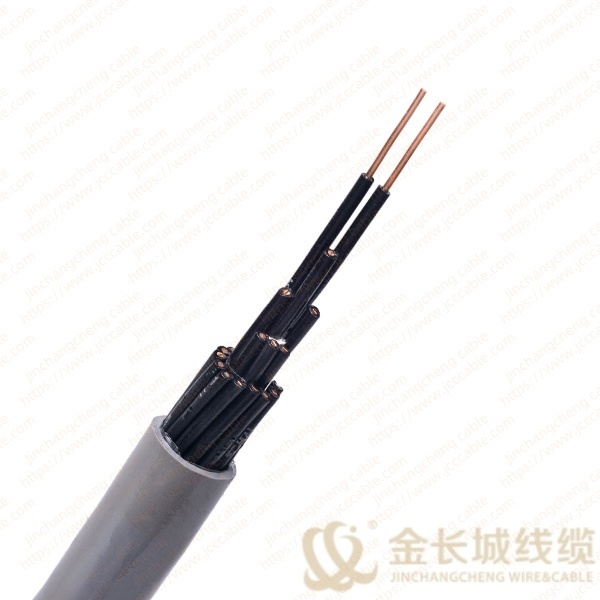

Construction：
Parameter：
1)Conductors have three species:
First (Solid conductor) (A), Second for fixed installation (B) (Stranded conductor), and Third for moveable requirement (R) (stranded flexible conductor).
2)The structure and D. C. resistance.
3)The screen layer of cables shall be braided with copper wire or applied helically with copper tape.
Nominal cross-section mm2 | Conductor structure | D.C. resistance of conductor at 20℃ | ||
Class | No./Nom. Diameter of a single wire (mm) | Un-Tinned wire | Tinned wire | |
0.5 | 5 | 16/0.20 | 39 | 40.1 |
0.75 | 1 | 1/0.97 | 24.5 | 24.8 |
0.75 | 2 | 7/0.37 | 24.5 | 24.8 |
0.75 | 5 | 24/0.20 | 26 | 26.7 |
1 | 1 | 1/1.13 | 18.1 | 18.2 |
1 | 2 | 7/0.43 | 18.1 | 18.2 |
1 | 5 | 32/0.20 | 19.5 | 20 |
1.5 | 1 | 1/1.38 | 12.1 | 12.2 |
1.5 | 2 | 7/0.52 | 12.1 | 12.2 |
1.5 | 5 | 30/0.25 | 13.3 | 13.7 |
2.5 | 1 | 1/1.78 | 7.41 | 7.56 |
2.5 | 2 | 7/0.68 | 7.41 | 7.56 |
2.5 | 5 | 50/0.25 | 7.98 | 8.21 |
4 | 1 | 1/2.25 | 4.61 | 4.7 |
4 | 2 | 7/0.85 | 4.61 | 4.7 |
6 | 1 | 1/2.76 | 3.08 | 3.11 |
6 | 2 | 7/1.04 | 3.08 | 3.11 |
10 | 2 | 7/1.35 | 1.83 | 1.84 |
No.×Nom. | Largest diameter of cables | Calculated weight of cables（kg/km） | ||||||||||||
| KVV | KVVP | KVVP2 | KVV22 | KVV32 | KVVR | KVVRP | KVV | KVVP | KVVP2 | KVV22 | KVV32 | KVVR | KVVRP |
2×0.75 | 8 | 9.3 | — | — | — | — | — | 72 | 114 | — | — | — | — | — |
2×1.0 | 8.3 | 9.6 | — | — | — | — | — | 81 | 124 | — | — | — | — | — |
2×1.5 | 9.3 | 10.6 | — | — | — | — | — | 109 | 157 | — | — | — | — | — |
2×2.5 | 10.8 | 11.9 | — | — | — | — | — | 154 | 201 | — | — | — | — | — |
2×4 | 11.8 | 13.9 | — | — | — | — | — | 187 | 346 | — | — | — | — | — |
2×6 | 13 | 15 | — | — | — | — | — | 241 | 351 | — | — | — | — | — |
2×10 | 16.3 | 17.8 | — | — | — | — | — | 391 | 502 | — | — | — | — | — |
2×0.75 | 8.3 | 9.6 | — | — | — | — | — | 87 | 130 | — | — | — | — | — |
3×1.0 | 8.8 | 10 | — | — | — | — | — | 98 | 143 | — | — | — | — | — |
3×1.5 | 9.9 | 11.1 | — | — | — | — | — | 127 | 177 | — | — | — | — | — |
3×2.5 | 11.3 | 12.6 | — | — | — | — | — | 181 | 238 | — | — | — | — | — |
3×4 | 12.5 | 14.5 | — | — | — | — | — | 234 | 347 | — | — | — | — | — |
3×6 | 13.3 | 15.8 | — | — | — | — | — | 329 | 470 | — | — | — | — | — |
3×10 | 17.3 | 18.7 | — | — | — | — | — | 511 | 632 | — | — | — | — | — |
4×0.5 | — | — | — | — | — | 8.7 | 9.9 | | 153 | — | — | — | 96 | 141 |
4×0.75 | 9.1 | 10.3 | 9.2 | — | — | 9.3 | 10.5 | 104 | 163 | 144 | — | — | 114 | 164 |
4×1.0 | 9.5 | 10.7 | 9.6 | — | — | 9.6 | 10.8 | 119 | 203 | 153 | — | — | 123 | 179 |
4×1.5 | 10.7 | 11.9 | 10.7 | — | — | 10.9 | 12.1 | 156 | 330 | 192 | — | — | 158 | 210 |
4×2.5 | 12.4 | 14.4 | 12.9 | — | — | 12.5 | 14.6 | 226 | 436 | 276 | — | — | 228 | 336 |
4×4 | 14.3 | 15.7 | 14 | 16.5 | 19.6 | — | — | 315 | 530 | 367 | 505 | 856 | — | — |
4×6 | 15.6 | 17 | 15.2 | 17.8 | 20.2 | — | — | 413 | 768 | 467 | 619 | 995 | — | — |
4×10 | 18.9 | 20.8 | 19.8 | 22.4 | 25.8 | — | — | 644 | — | 728 | 947 | 1584 | — | — |
5×0.5 | — | — | — | — | — | 9.3 | 10.5 | — | 162 | | — | — | 108 | 164 |
5×0.75 | 9.8 | 11 | 9.9 | — | — | 10 | 11.2 | 119 | 193 | 152 | — | — | 122 | 174 |
5×1.0 | 10.2 | 11.4 | 10.3 | — | — | 10.4 | 11.6 | 142 | 248 | 174 | — | — | 148 | 208 |
5×1.5 | 11.6 | 12.8 | 12.23 | — | — | 11.9 | 13.1 | 190 | 390 | 226 | — | — | 200 | 267 |
5×2.5 | 14.1 | 15.5 | 13.91 | — | — | 14.3 | 15.7 | 290 | 501 | 325 | — | — | 296 | 399 |
5×3 | 15.5 | 16.9 | 15.18 | 17.6 | 20.8 | — | — | 383 | 626 | 427 | 586 | 962 | — | — |
5×6 | 17 | 18.4 | 16.55 | 19.5 | 22.2 | — | — | 505 | | 567 | 737 | 1130 | — | — |
5×10 | 21.8 | 22.6 | 22.2 | 24.1 | 27.6 | — | — | 830 | 986 | 924 | 1125 | 1814 | — | — |
