300/500V BV wire
Key words:
Classification:
Product Description
Product Description

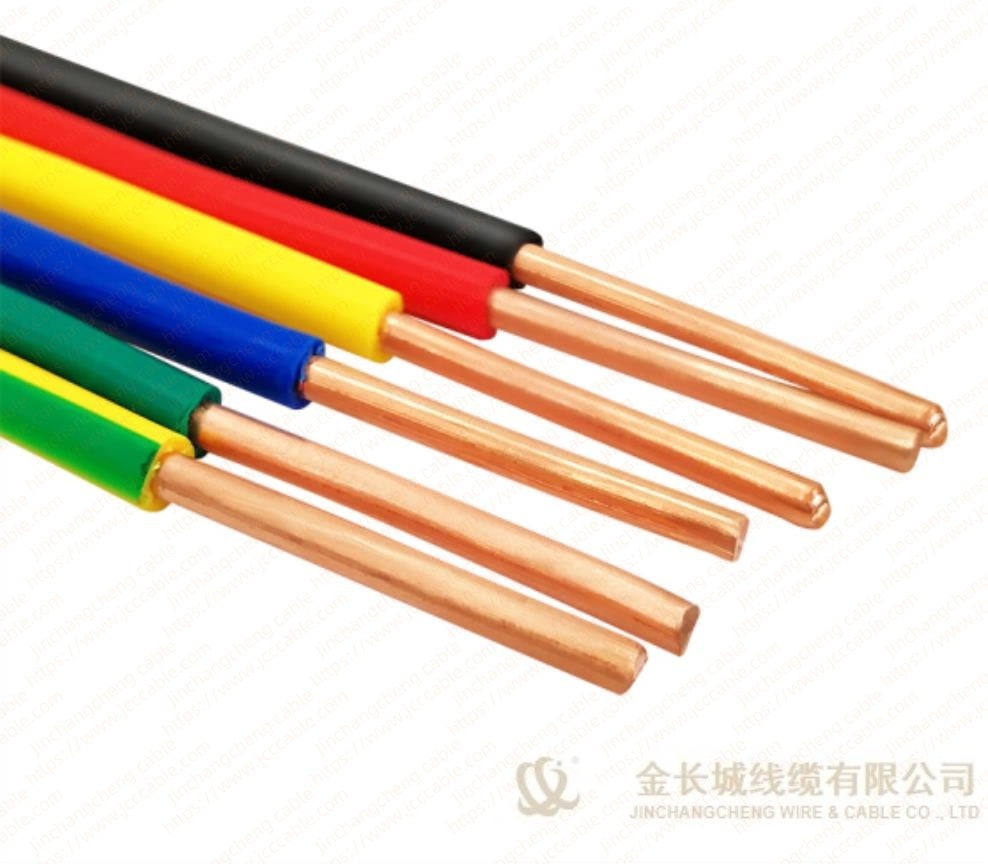

BV wire, abbreviated as plastic copper wire, is also known as copper core PVC insulated cloth wire. B represents the category of cloth wire, and V represents the insulation of PVC. Suitable for cables and wires used in power plants, household appliances, instruments, and telecommunications equipment with AC voltages up to and including 450/750V.
General purpose single core hard conductor unsheathed wire, suitable for cables and wires used in power plants, household appliances, instruments, and telecommunications equipment with AC voltages of 450/750V and below.
Purpose Ordinary insulated wires, household wires, are the most commonly used type of wire. Take a new house with an area of 100 square meters as an example. A copper core BV wire with an area of 4 square meters is 200 meters, a copper core BV wire with an area of 2.5 square meters is 400 meters, a copper core BV wire with an area of 1.5 square meters is 300 meters, and a copper core BV two-color wire with an area of 1.5 square meters is 100 meters. The above refers to non ceiling decoration. If ceiling decoration is required, the 1.5 line should be a little more

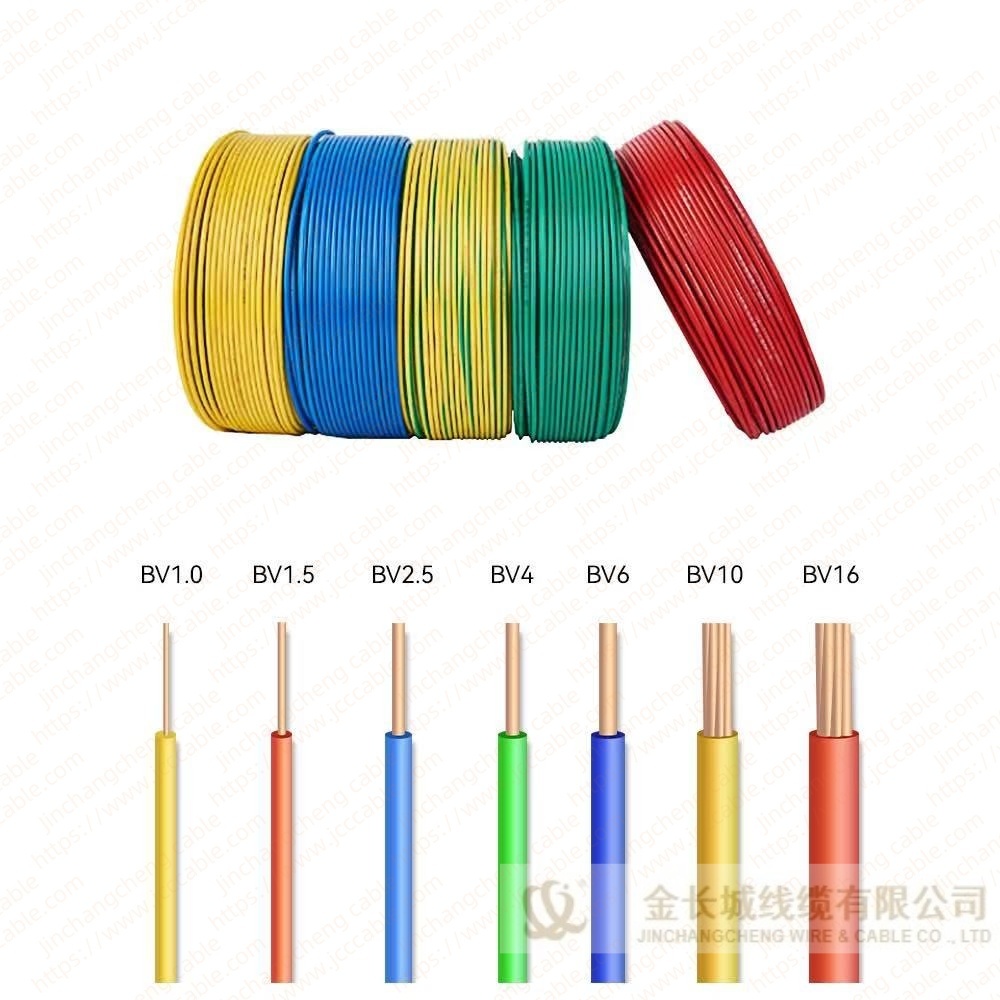

Common BV line models: 1 square, 1.5 square, 2.5 square, 4 square, 6 square, 10 square, 16 square, 25 square, 35 square, 50 square, 70 square, 95 square, 120 square, 150 square, 185 square, 240 square, etc.
Model Number | BV wire |
Rated voltage | 300/500V,450/750V |
Insulation | PVC material |
Cores | 1 core |
Cross section area | 0.5~630sqmm |
Certification | CCC |
Standard applied | IEC 60227, BS 6004, GB/T 5023, JB/T8734 |
Max. working temp. | 70°C,can be 90°C,105°C per requirement |
Conductor | Class 1/2 plain annealed copper wires, solid or stranded. |

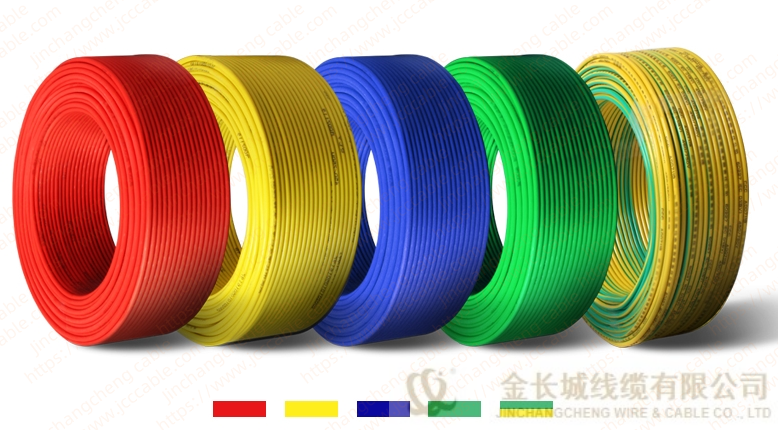

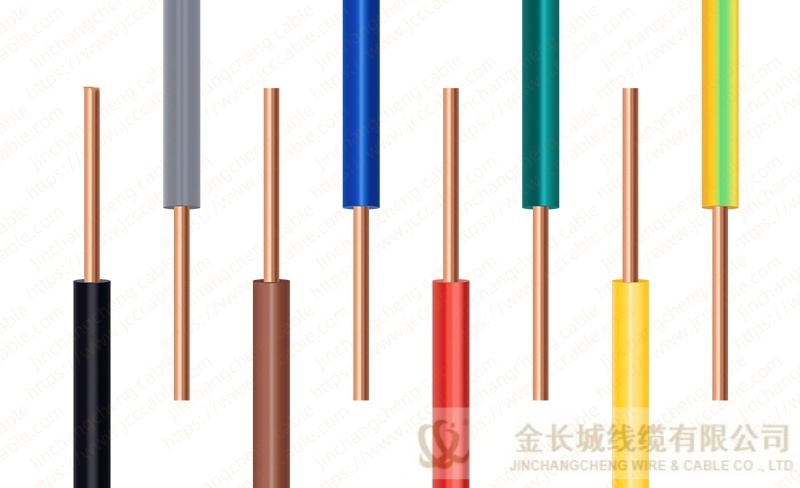

Color | Brown, Grey, Black, Blue, Green/Yellow or others on request |

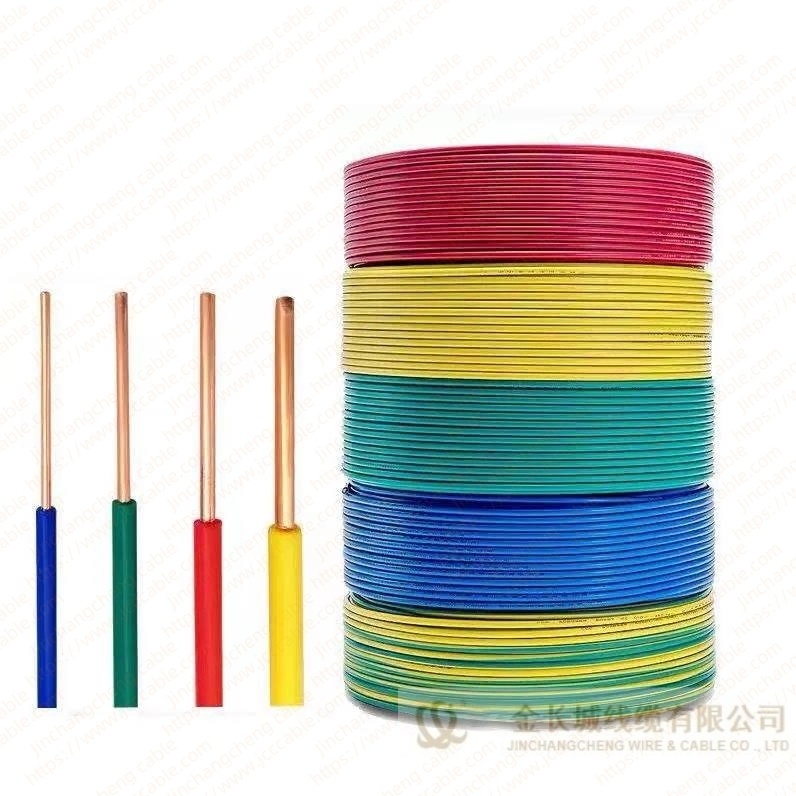

Packing | 100 meters per roll or as per requirement |
Characteristics
● Rated voltage Uo/U: 300/500V,450/750 V;
● Normal operating temperature: 70˚C.
● Short circuit temperature (5 seconds maximum duration): 160˚C.
● IEC 60227-3 (mark 60227 IEC 01)
● Minimum bending radius:
4D for D < 8mm
5D for 8mm < D < 12mm
6D for D > 12mm
Note: D is overall diameter of cable.

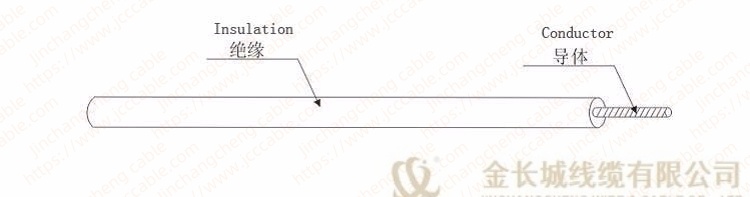

Product structure and parameter
标称截面 | 导电线芯 | 绝缘厚度Insulation thickness | 平均外径 overall upper Dia. mm | 20℃时导体 | 70℃时最小 | 电缆重量Approx.weight |
0.5 | 1/0.80 | 0.6 | 2.4 | 36.0 | 0.015 | 8.4 |
0.75 | 1/0.37 | 0.6 | 2.6 | 24.5 | 0.012 | 11.0 |
0.75(B) | 7/0.97 | 0.6 | 2.8 | 24.5 | 0.014 | 11.9 |
1 | 1/1.13 | 0.6 | 2.8 | 18.1 | 0.011 | 13.7 |
1(B) | 7/0.43 | 0.6 | 3.0 | 18.1 | 0.013 | 14.8 |
Application
Used as fixed wiring cable of rated voltage 300/500V.
In dry rooms, apparatus switch and distribution boards, for fixed installation in conduits, over and under plaster and on insulation supports over plaster. Direct laying in plaster is not permitted.
