35KV Overhead Insulated Cable
Key words:
Classification:
Product Description

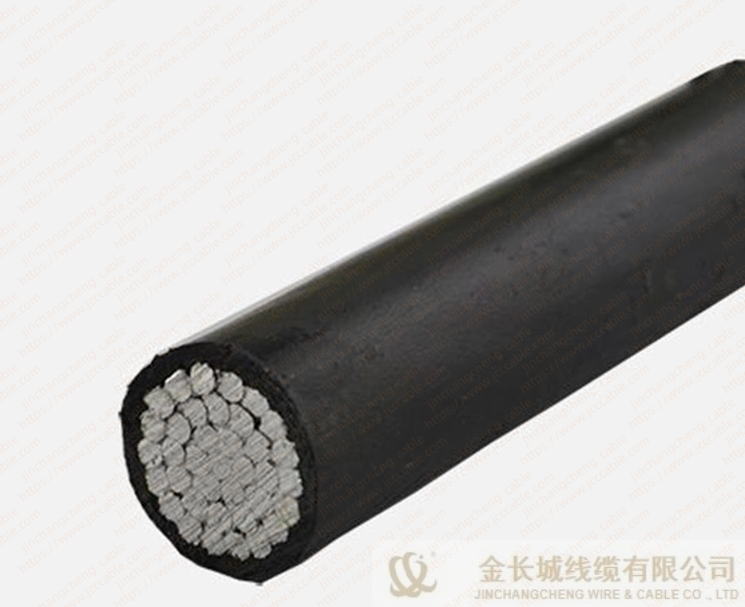

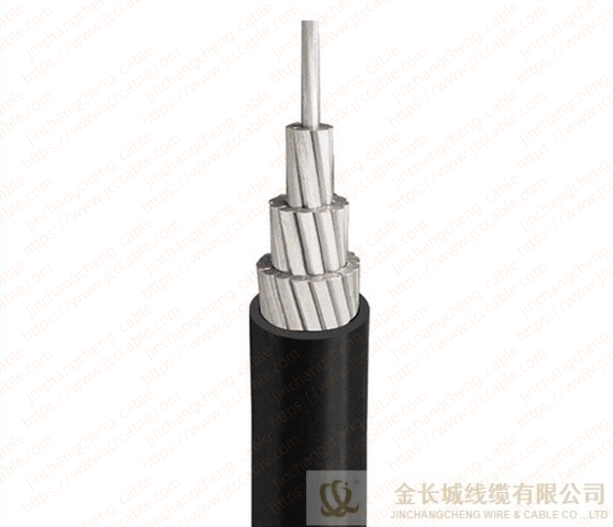

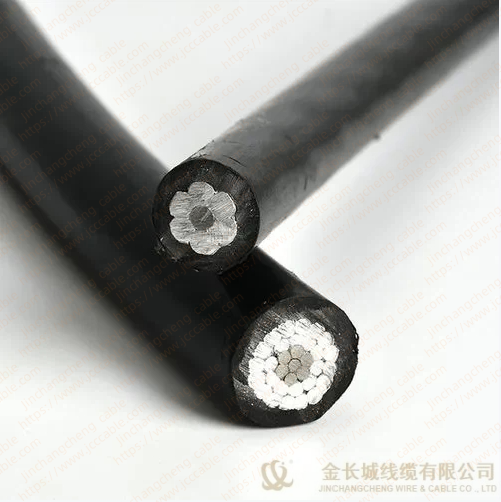

35KV Overhead Insulated Cable

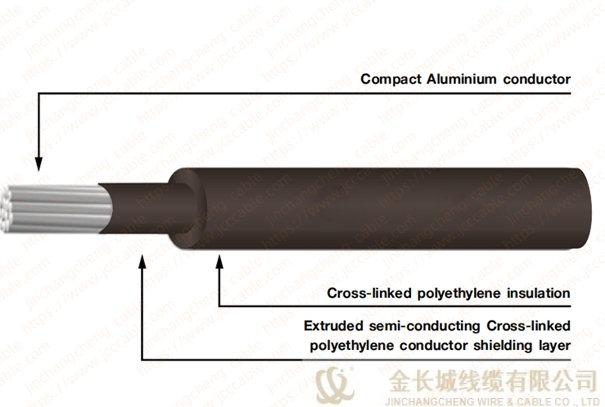

XLPE Overhead Cable is a common type of cable used for electrical power transmission, characterized by the following features and advantages:
Conductors: Typically made of bare copper or aluminum conductor steel-reinforced (ACSR), known for good conductivity and mechanical strength.
Insulation: XLPE insulation provides excellent electrical performance, including high insulation strength and resistance to electrical stress.
Sheath: Usually made of HDPE (High-Density Polyethylene) or other weather-resistant, aging-resistant materials to protect the cable from environmental impacts.
Products Description
Size(mm²) | conductor structure (mm) | Conductor Diameter (mm) | Insulation Thickness (mm) | Outer Diameter (mm) | Conductor Resistance at 20℃ (Ω/Km) | Cable Breaking Force (N) |
10 | 7/1.40 | 4.0 | 1.0 | 6.0 | 3.08 | 1650 |
16 | 7/1.70 | 4.9 | 1.2 | 7.3 | 1.91 | 2517 |
25 | 7/2.13 | 6.2 | 1.2 | 8.6 | 1.20 | 3762 |
35 | 7/2.52 | 7.1 | 1.4 | 9.9 | 0.868 | 5177 |
50 | 7/2.96 | 8.3 | 1.4 | 11.1 | 0.641 | 7011 |
70 | 12/2.70 | 10.0 | 1.4 | 12.8 | 0.443 | 10354 |
95 | 19/2.56 | 11.6 | 1.6 | 14.8 | 0.320 | 13727 |
120 | 19/2.82 | 13.1 | 1.6 | 16.3 | 0.253 | 17339 |
150 | 19/3.16 | 14.8 | 1.8 | 18.4 | 0.206 | 21033 |
185 | 37/2.56 | 16.2 | 2.0 | 20.2 | 0.164 | 26732 |
240 | 37/2.87 | 18.8 | 2.2 | 23.2 | 0.125 | 34679 |
300 | 48/2.84 | 20.8 | 2.2 | 25.2 | 0.100 | 43349 |
400 | 60/2.95 | 23.6 | 2.2 | 28.0 | 0.0778 | 55707 |
