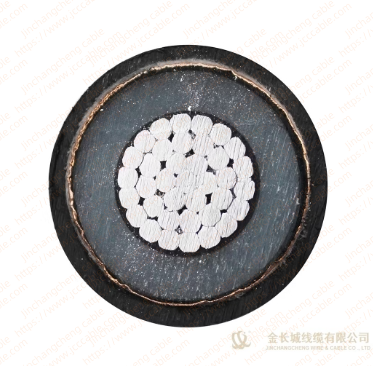

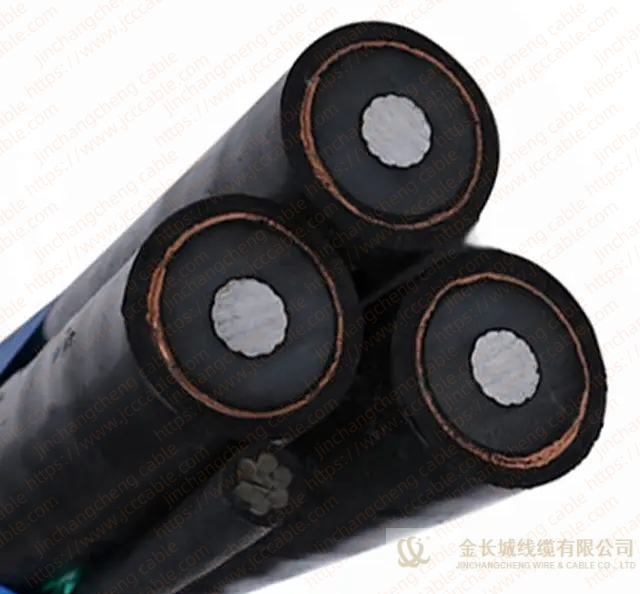

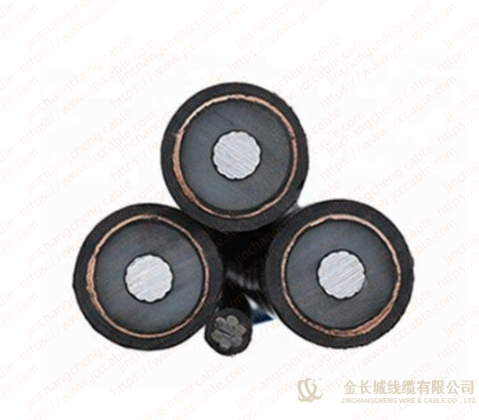

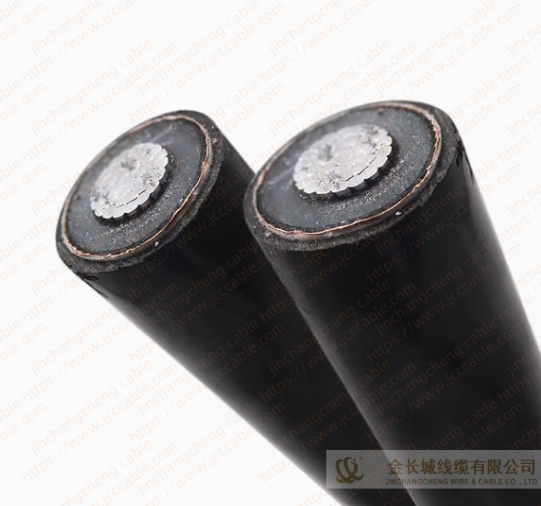

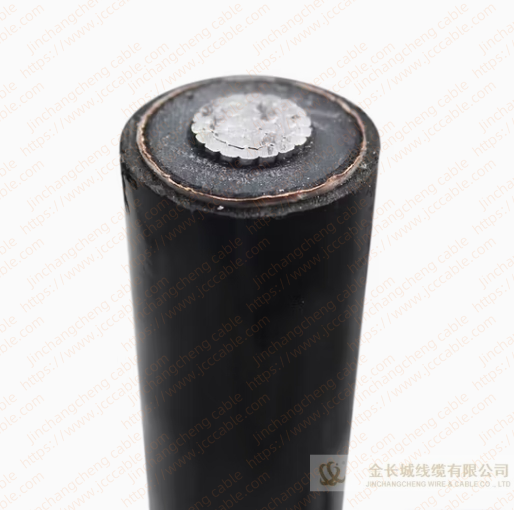

12.7/22 KV ABC Cable
Aerial bundled cables (also aerial bundled conductors or simply ABC) are overhead power lines using several insulated phase conductors bundled tightly together, usually with a bare neutral conductor. This contrasts with the traditional practice of using uninsulated conductors separated by air gaps. This variation of overhead power lines utilizes the same principles as bundled conductors, except that they are closer together to the point of touching but each conductor is surrounded by an insulating layer (except for the neutral line).
Cable Features :
Watertight construction (both radial and longitudinal).
Available in long delivery lengths to reduce number of joints.
Aluminum conductor up to 240mm².
Different options for insulation (XLPE,LDPE, MDPE & HDPE).
Weather resistant insulation and sheath material.

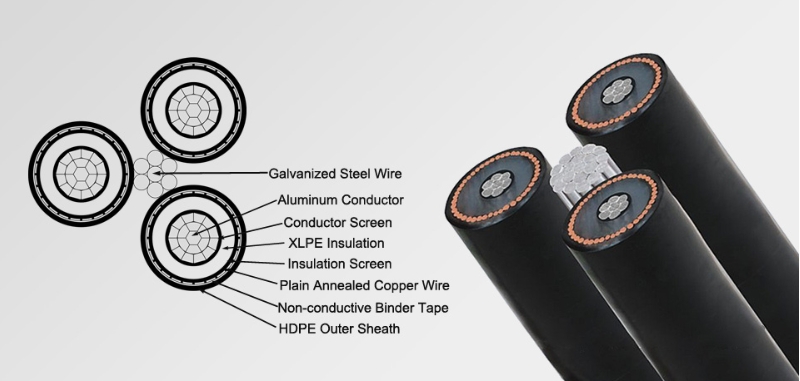

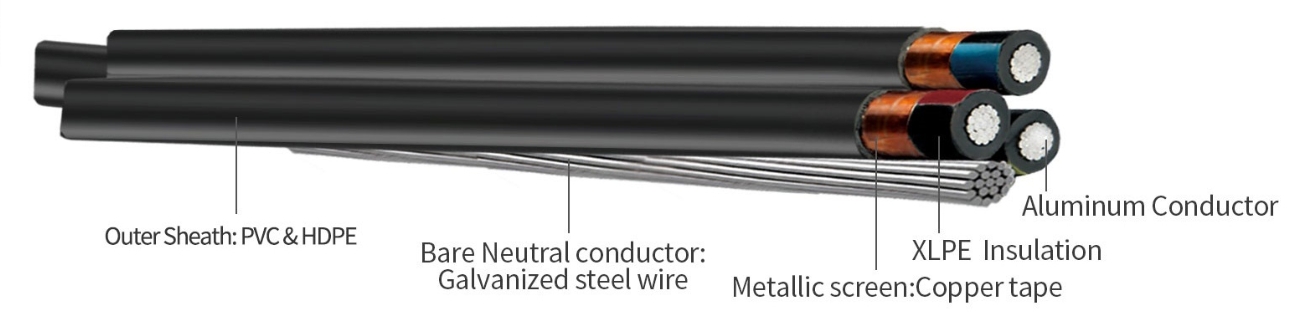

Cable Construction:
Product standard：IEC 60502，BS2627.
Phase Conductor | Circular compacted stranded H68 aluminium to BS2627. |
Conductor Screen | Extruded semi-conductive layer. |
Insulation | XLPE. |
Insulation Screen | Extruded semi-conductive layer. |
Metallic Screen | Copper wire screen. |
Separator | Semi-conductive swellable tape. |
Outer Sheath | HDPE. |
Support Conductor | Galvanized steel wires. |
Assembly | Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay. |
Product structure and parameter：
No of cores x cross section | Nominal conductor diameter | Nominal insulation thickness | Nominal sheath thickness | AAAC/1120 support conductor size | Nominal overall dia | Weight | Continuous current rating |
2m/s wind | |||||||
mm^2 | mm | mm | mm | No/mm | mm | kg/km | A |
12.7/22kV | |||||||
3x35 | 6.9 | 5.5 | 1.2 | 7/4.75 | 61 | 1780 | 180 |
3x50 | 8.1 | 5.5 | 1.2 | 7/4.75 | 63.3 | 1970 | 220 |
3x70 | 9.7 | 5.5 | 1.2 | 7/4.75 | 66.5 | 2260 | 275 |
3x95 | 11.4 | 5.5 | 1.2 | 7/4.75 | 69.9 | 2600 | 335 |
3x120 | 12.8 | 5.5 | 1.2 | 19/3.50 | 75.9 | 3070 | 395 |
3x150 | 14.2 | 5.5 | 1.2 | 19/3.50 | 78.7 | 3390 | 450 |
3x185 | 15.7 | 5.5 | 1.2 | 19/3.50 | 81.7 | 3760 | 520 |
Application:
The main application is on compact overhead, primary power distribution, medium-voltage networks located in urban and wooded areas. This cable feature such advantages as low manufacturing cost and ease of installation.
