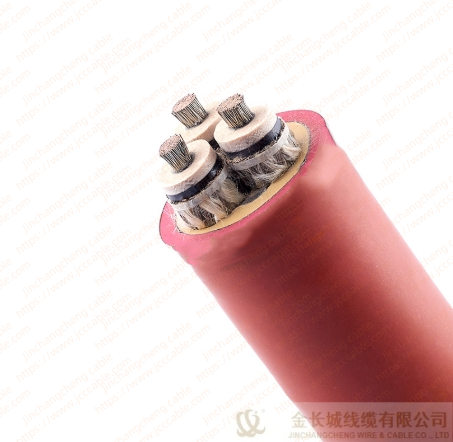

                                                                                          XLPE Insulated Flame Retardant Mining Power Cable



XLPE insulated power cables for coal mines (MYJV series) are high-performance power transmission cables designed for the coal mining industry. Using cross-linked polyethylene (XLPE) insulation, it has excellent heat resistance, chemical corrosion resistance, aging resistance and mechanical strength, and is suitable for long-term reliable operation of power systems in mines, power plants and other industrial applications. This series of cables meets strict national and industry standards, such as MT818.13 and MT386, and can provide safe and stable power transmission in high temperature and harsh environments.



Product standard:

IEC 60502、GB/T 12706、GB/T 9330、GB/T 19666、MT818.13, Other customer's requirements



Application :

1.It is used in coal mines to transport electrical energy, supply lighting equipment, transportation equipment, ventilation systems and drainage pumps and other equipment.

2.t is used in metal mines to transmit electricity, supply control systems, drive mechanical equipment and robots, etc.

3.Used in tunneling projects to supply power and control systems.

4.Mining cables are used to connect and power various mechanical equipment in mines, such as mining machines, crushers, transportation equipment, lifting equipment, etc.



Use characteristics:

Rated voltage, Uo/U(Um): 3.6/6(7.2)kV, 6/6(7.2kV), 6/10(12)kV, 8.7/10kV(12kV)
Maximum continuous conductor operating temperature: 90℃
Maximum conductor short circuit temperature: 250℃ (maximum duration 5Sec.)
Minimum installation ambient temperature: 0℃
Minimum bending radius for installation: 15xO.D.



Product type :

Type

Description

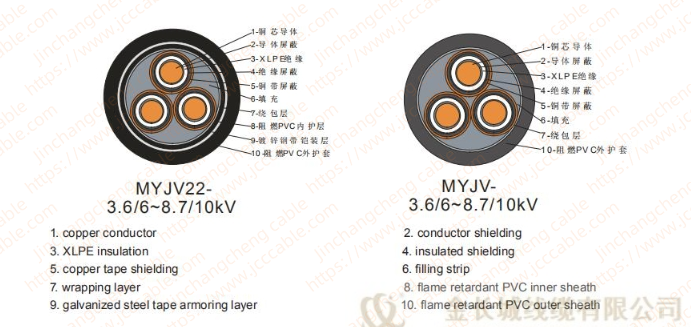

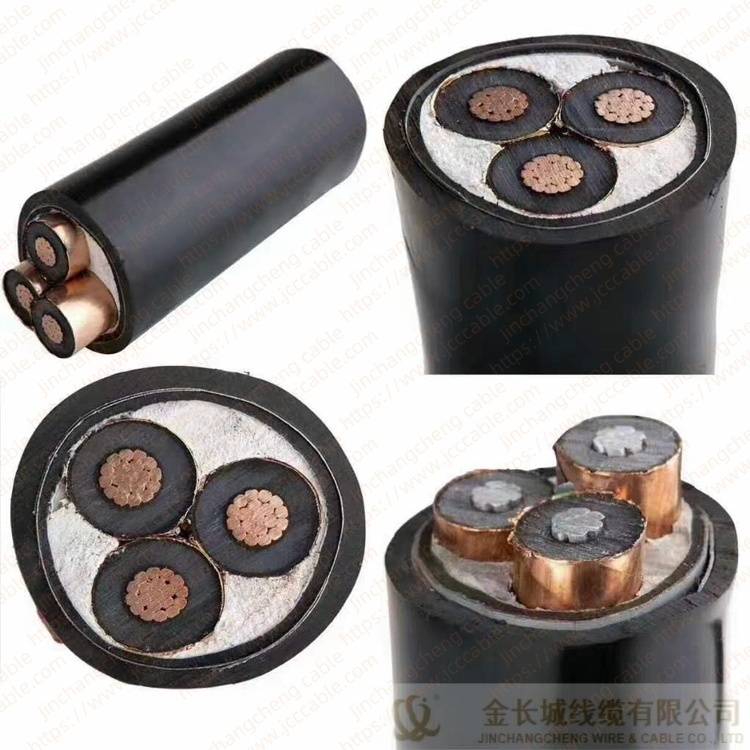

MYJV

XLPE insulated PVC sheathed flame retardant mining power cable

MYJV22

XLPE insulated steel tape armored PVC sheathed flame retardant mining power cable

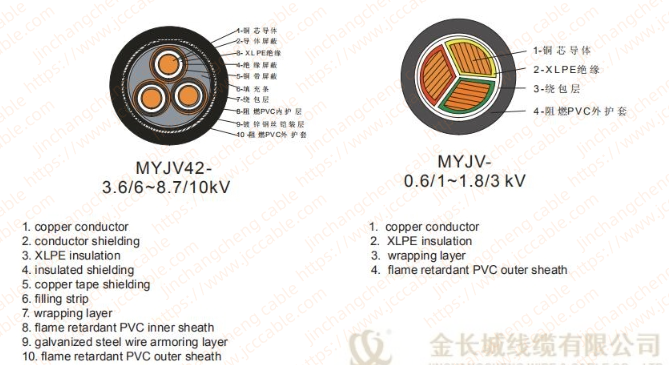

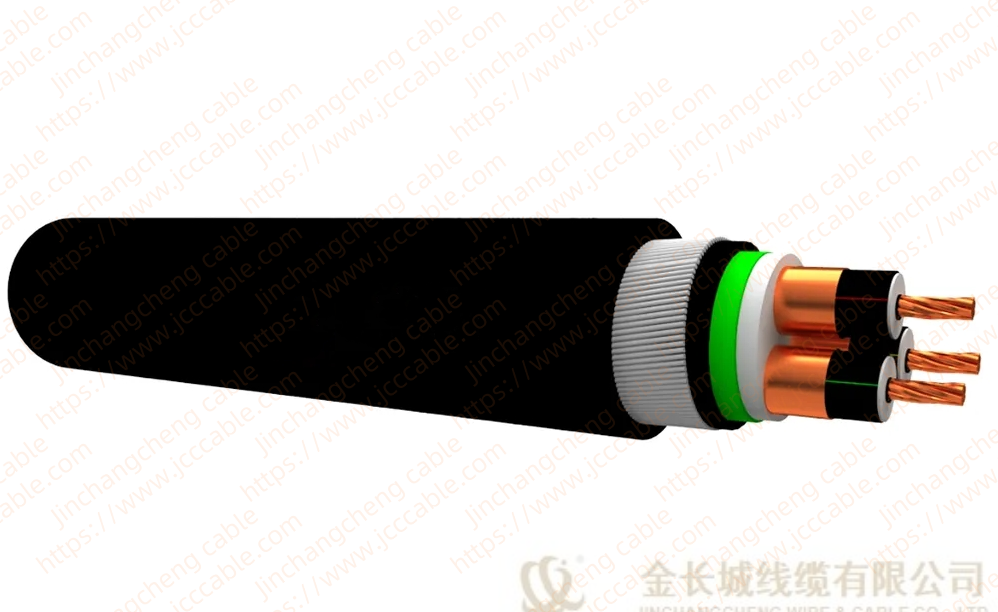

MYJV32

XLPE insulated thin steel wire armored PVC sheathed flame retardant mining power cable

MYJV42

XLPE insulated thick steel wire armored PVC sheathed flame retardant mining power cable



Product structure :







1. D.C.resistance of conductor shall comply with GB/T3956.
2. Cables with rated voltage above 3.6kV shall be applied for parital discharge test,the magnitude of the discharge at 1.5U0 shall not exceed 40pC.
3. Cables with rated voltage up to 3.6kV shall withstand 2.5U0+2kV voltage test; cables with rated voltage above 3.6kV shall with stand 2.5U +2kV voltage test; cables with rated voltage above 3.6kV shall withstand 2.5U0 voltage test.
4.Flame-relardance performance: confom to MT386.

Scope of production

Type

No. of cores

Rated Voltage

0.6/1

1.8/3

3.6/6 6/6

6/10 8.7/10

Nominal section area(mm²)

MYJV

3

1.5~300

10~300

25~300

25~300

MYJV22

3

4~300

10~300

25~300

25~300

MYJV32

3

4~300

10~300

25~300

25~300

MYJV42

3

4~300

10~300

25~300

25~300



Voltage level：0.6/1KV



Number of coresConductor Diameter
(mm)		Conductor cross section
(mm2)		Insulation Thickness
(mm)		Resistance
(Ω/km)		No armorWith Steel ArmorSteel Wire Armor
Sheath Thickness
(mm)		Cable outer diameter
(mm)		weight
(kg/km)		Current
(A)		Sheath Thickness
(mm)		Strip Thickness
(mm)		Cable Outer Diameter
(mm)		weight
(kg/km)		Current
(A)		Sheath Thickness
(mm)		Wire Diameter
(mm)		Cable Outer Diameter
(mm)		weight
(kg/km)		Current
(A)
Three cores1.41.50.712.11.810.412127/20
1.82.50.77.411.811.315935/261.80.2×213.125535/26
2.340.74.611.812.221045/341.80.2×21431745/34
2.860.73.081.813.428057/431.80.2×215.239757/43
3.8100.71.831.816.143177/601.80.2×217.956177/601.80.821.7104965/80
4.8160.71.151.818.4634105/831.80.2×220.2773105/831.80.824132385/100
6250.90.7271.822.1947125/1051.80.2×223.91130125/1051.81.627.71779115/130
7350.90.5241.824.61254155/1251.80.2×226.41458155/1251.81.630.22174145/155
8.35010.3871.827.91660185/1601.80.5×229.71893185/1601.91.633.92729175/185
9.8701.10.2681.932.82353225/20020.5×236.22967225/2002239.63854220/225
11.5951.10.193237.13179270/24520.5×240.53872270/2452.2243.94862270/270
12.91201.20.1532.141.23983310/2852.10.5×244.64753310/2852.32485840315/305
14.51501.40.1242.345.84909345/3252.30.5×249.25762345/3252.42.553.87498360/345
161851.60.09912.450.96104390/3752.40.5×254.37051390/3752.62.559.39020420/390
18.32401.70.07542.657.47941450/4402.60.5×260.89006450/4402.72.56611237500/455
20.53001.80.06012.863.49890515/5052.70.5×266.811067515/5052.92.57213521550/520

Voltage level：3.6/6KV

Number of cores

Conductor Diameter
(mm)

Conductor cross section
 (mm2)

Insulation Thickness
 (mm)

Resistance
(Ω/km)

No armor

With Steel Armor

Sheath Thickness
(mm)

Cable outer diameter
(mm)

weight
(kg/km)

Current
(A)

Sheath Thickness
 (mm)

Strip Thickness
 (mm)

Cable Outer Diameter
 (mm)

weight
 (kg/km)

Current
 (A)

Three cores

6

25

2.5

0.727

2.1

36.6

1745

160/165

2.3

0.5×2

42.8

2769

125/120

7

35

2.5

0.524

2.2

39

2125

190/205

2.3

0.5×2

45.2

3210

155/140

8.3

50

2.5

0.387

2.3

42

2671

225/245

2.4

0.5×2

48.2

3833

180/165

9.8

70

2.5

0.268

2.4

45.8

3395

275/305

2.6

0.5×2

52

4656

220/210

11.5

95

2.5

0.193

2.5

49.5

4252

330/370

2.7

0.5×2

55.9

5632

265/255

12.9

120

2.5

0.153

2.6

52.7

5093

375/430

2.8

0.5×2

59.1

6557

300/290

14.5

150

2.5

0.124

2.8

56.5

6119

425/490

2.9

0.5×2

62.7

7653

340/330

16

185

2.5

0.0991

2.9

60.2

7265

480/560

3.1

0.5×2

66.4

8895

380/375

18.3

240

2.6

0.0754

3

65.8

9092

555/665

3.2

0.5×2

72

10865

435/435

20.5

300

2.8

0.0601

3.2

71.8

11123

630/765

3.4

0.5×2

79

13230

485/495



Voltage level：6/6 6/10KV

Number of cores

Conductor Diameter
(mm)

Conductor cross section
 (mm2)

Insulation Thickness
 (mm)

Resistance
(Ω/km)

No armor

With Steel Armor

Sheath Thickness
(mm)

Cable outer diameter
(mm)

weight
(kg/km)

Current
(A)

Sheath Thickness
 (mm)

Strip Thickness
 (mm)

Cable Outer Diameter
 (mm)

weight
 (kg/km)

Current
 (A)

Three cores

6

25

3.4

0.727

2.2

41.1

2017

125/120

2.4

0.5×2

47.3

3155

150/135

7

35

3.4

0.524

2.3

43.3

2392

155/140

2.5

0.5×2

49.7

3610

175/165

8.3

50

3.4

0.387

2.4

46.3

2956

180/165

2.6

0.5×2

52.7

4252

205/195

9.8

70

3.4

0.268

2.5

50.4

3725

220/210

2.7

0.5×2

56.6

5102

255/245

11.5

95

3.4

0.193

2.7

54

4603

265/255

2.8

0.5×2

60.2

6073

300/300

12.9

120

3.4

0.153

2.8

57.2

5463

300/290

2.9

0.5×2

63.4

7016

345/345

14.5

150

3.4

0.124

2.9

60.9

6489

340/330

3.1

0.5×2

67.1

8137

385/390

16

185

3.4

0.0991

3

64.5

7654

380/375

3.2

0.5×2

70.7

9395

435/445

18.3

240

3.4

0.0754

3.2

69.7

9471

435/435

3.4

0.5×2

76.9

11521

505/525

20.5

300

3.4

0.0601

3.3

74.6

11404

485/495

3.6

0.5×2

82

13626

565/595
